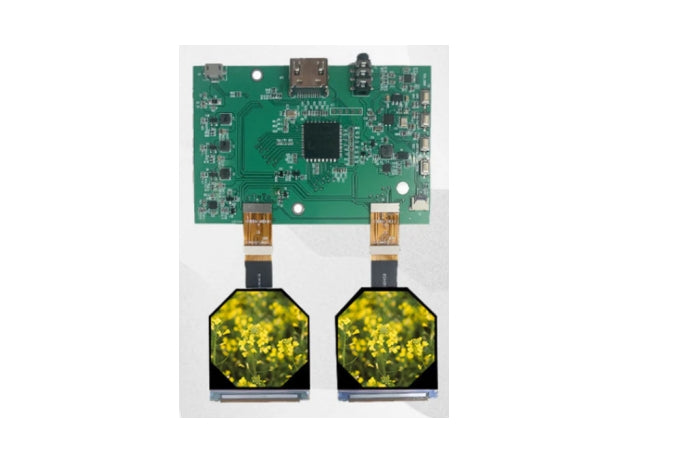

JDI LPM021M528C 2.1 Inch 1600x1600 LCD Panel MIPI Interface LCD Display Screen For HMD AR VR

JDI LPM021M528C 2.1 Inch 1600x1600 LCD Panel MIPI Interface LCD Display Screen For HMD AR VR

$54.00 USD
$60.00 USD $54.00 USD
Sale Sold out

Overview

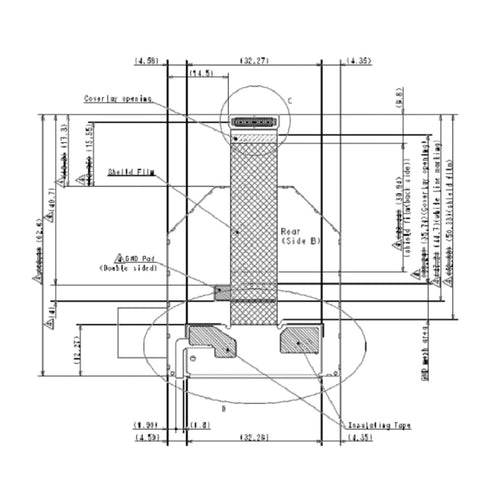

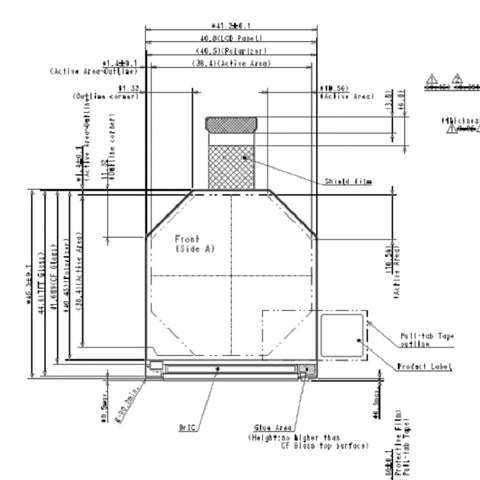

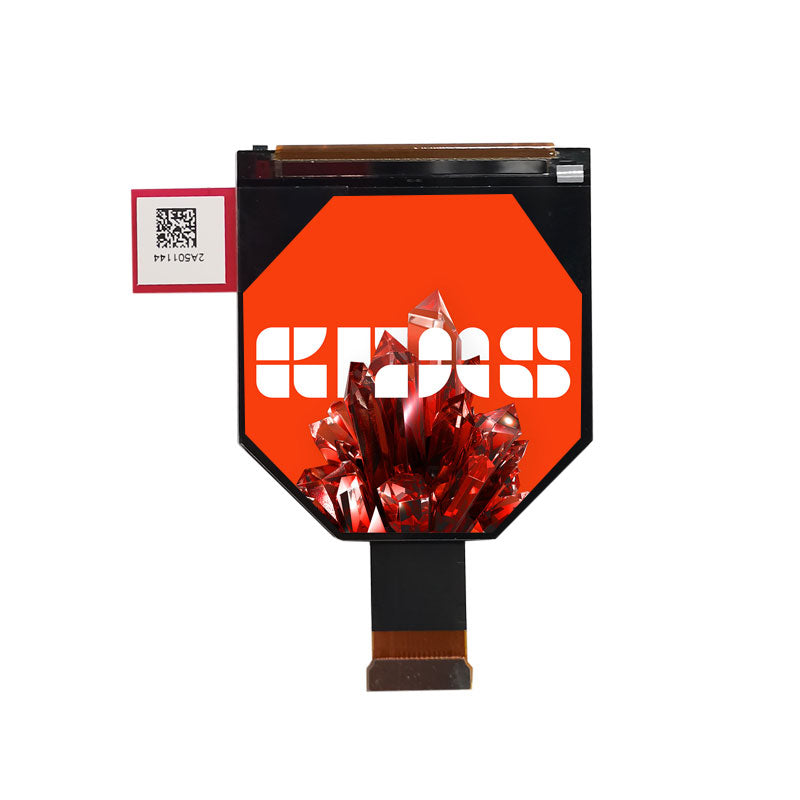

LPM021M528C is a 2.1 inch diagonal a-Si TFT-LCD display screen, with a built-in WLED backlight, without backlight driver, without touch screen.LPM021M528C supports display 1600(RGB)×1600 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 1058 PPI. As for mechanical detail, it features active area of 38.4(W)×38.4(H) mm, outline size of 41.2(W)×45.3(H) mm, with surface treament of Hard coating, net weight of 5.90g (Typ.).

Feature
-High Resolution
-High Contrast
-WLED Backlight
-Wide temperature range
-Low power consumption

Screen Size:2.1 inch
Resolution:1600x1600
Brand: JDI
Brightness:430 cd/m² (Typ.)
Contrast Ratio:700:1 (Typ.) (Transmissive)
Color Amount:16.7M (8-bit)
2.1 Inch 1600x1600 MIPI Interface LCD Panel

What's included in the package ?
LPM021M528C LCD Display*1

Application
Head-mounted Displays, Viewfinders, Small Display,AR VR etc.

Datasheet & Technical Support
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

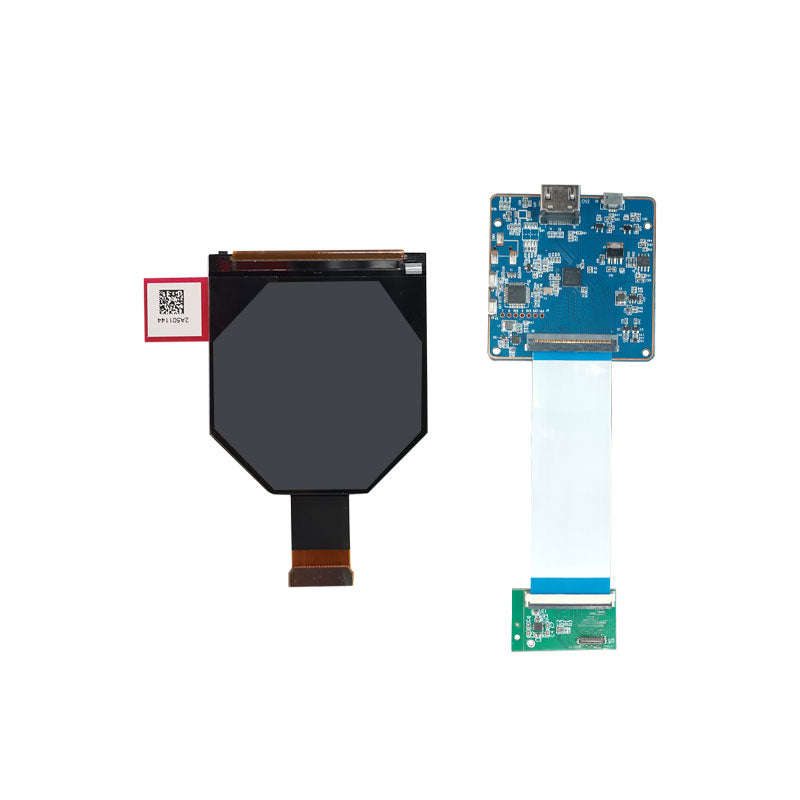

More Product Pictures

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.

For inquiries about Youritech and products/solutions, specificaition, mass production quotaion and technical support, welcome to contact us at info@youritech.com

For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
