JDI LPM029M483B 2.9 Inch 2160×2160 LCD Panel MIPI Interface TFT LCD Display For HMD AR VR

JDI LPM029M483B 2.9 Inch 2160×2160 LCD Panel MIPI Interface TFT LCD Display For HMD AR VR

$60.00 USD
$65.00 USD $60.00 USD
Sale Sold out

Overview

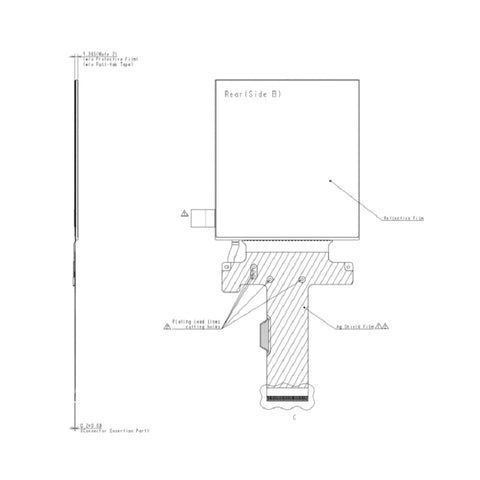

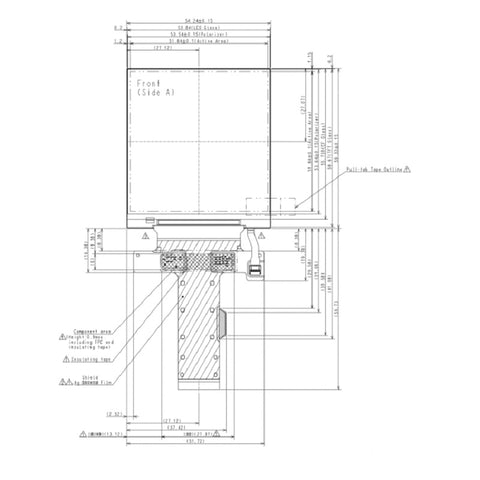

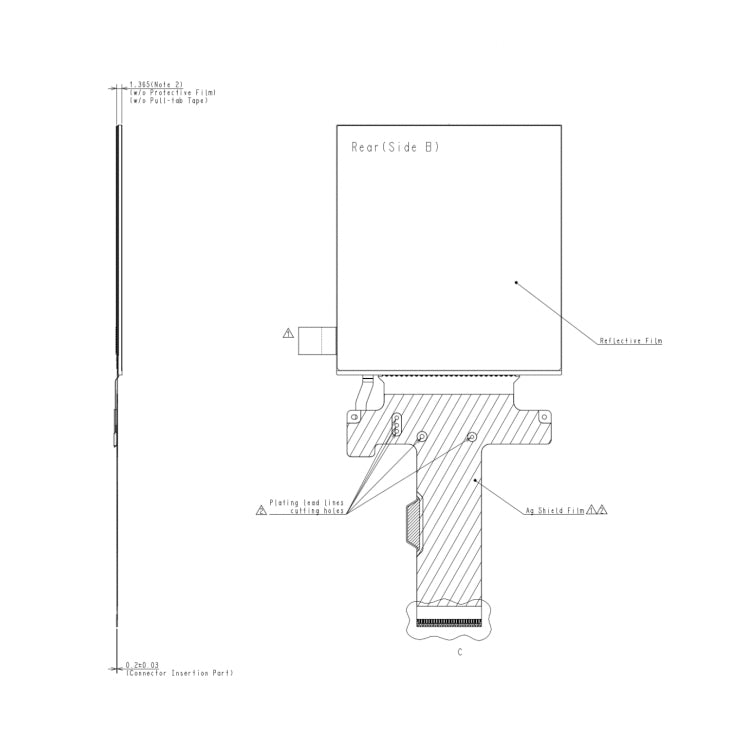

LPM029M483B is a 2.9 inch diagonal a-Si TFT-LCD display screen product from JDI, with a built-in WLED backlight, without backlight driver, without touch screen.LPM029M483B supports display 2160(RGB)×2160 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe,it's pixel density is 1058 PPI. As for mechanical detail, it features active area of 51.84(W)×51.84(H) mm, outline size of 54.24(W)×59.32(H) mm, with surface treament of Hard coating, net weight of 7.00g (Typ.).

Feature
-High Resolution
-High Contrast
-WLED Backlight
-Wide temperature range
-Low power consumption

Screen Size:2.9 inch
Resolution:2160x2160
Brand: JDI
Luminance (cd/m²):150 (Typ.)
Contrast Ratio:700 : 1 (Typ.) (Transmissive)
Vertical Frequency:90Hz
2.9 Inch 2160x2160 MIPI Interface LCD Panel

What's included in the package ?
LPM029M483B LCD Display*1

Application
Head-mounted Displays, Viewfinders, Small Display,AR VR etc.

Datasheet & Technical Support
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
