LMS480JC01 4.8 inch 1024x600 LCD Module With Touch Screen 4-wire Resistive

LMS480JC01 4.8 inch 1024x600 LCD Module With Touch Screen 4-wire Resistive

$187.44 USD
$213.00 USD $187.44 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

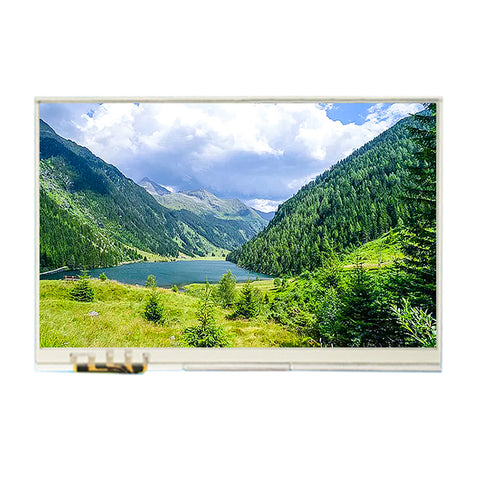

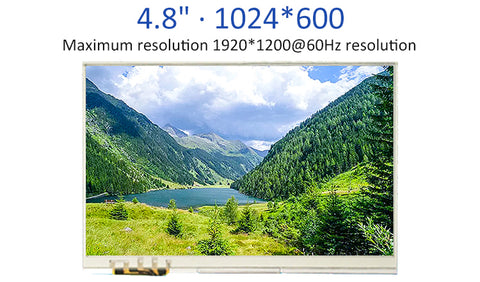

LMS480JC01 Original 4.8 inch 1024x600 LCD Module With Touch Screen 4-wire Resistive

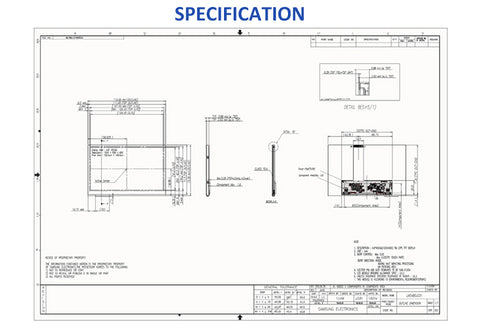

LCD SPECIFICATION
Panel Size
4.8 inch
Panel Type
LTPS TFT-LCD , LCM
Resolution
1024(RGB)×600 [WSVGA]
Pixel Format
RGB Vertical Stripe
Display Area
104.45(H)×61.2(V) mm
Bezel Opening
112.05(H)×73.26(V) ×5.88(D) mm
Outline Size
107.45(H)×64.2(V) mm
Surface
-
Brightness
280 cd/m² (Typ.)
Contrast Ratio
350:1 (Typ.) (TM)
Best View on
12 o'clock
Response Time
28 (Typ.)(Tr+Td)
Viewing Angle
65/65/55/45 (Typ.)(CR≥10)
Display Mode
TN, Normally White, TMR
Display Colors
262K 50% NTSC
Lamp Type
WLED [5S1P+6S1P] , W/O Driver
Weight
65.0/70.0g (Typ./Max.)
Application
MID UMPC
Frequency
75Hz
Touch Screen
4-wire Resistive Touch, F/G
Signal Interface
LVDS (1 ch, 6-bit) 28 pins FPC
Input Voltage
3.3V (Typ.)
Environment
Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C
Environment
Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C
