LPM009M360A JDI 0.84 Inch MIP Display 72x144 Reflective Sunlight Readable TFT LCD Display

LPM009M360A Overview
LPM009M360A supports display 72(RGB)×144 with aspect ratio of 1:2 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 9.66(W)×19.1304(H) mm, outline size of 12.455(W)×21.01(H)×0.94(D) mm, with surface treament of Hard coating (2H), net weight of 0.50g (Typ.). As a ECB, Normally Black, Reflective LCM product, LPM009M360A can provides , 20:1 (Typ.) reflective contrast ratio, 60/65/65/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 4/6 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 1-bit gray scale signal for each dot, thus presenting a palette of 8 colors, also with performance of color gamut 23% (NTSC). This product have no backlight. LPM009M360A utilizes 3-wire SPI as it's signal inputting systerm, which connected by 8 pins FPC with power supply voltage of 3.0/3.0V (Typ.)(VDD/VIH). It's typical vertical frame rate (Fv) is 60Hz.

LPM009M360A Application
For Industrial.

More LPM009M360A Options For Reference

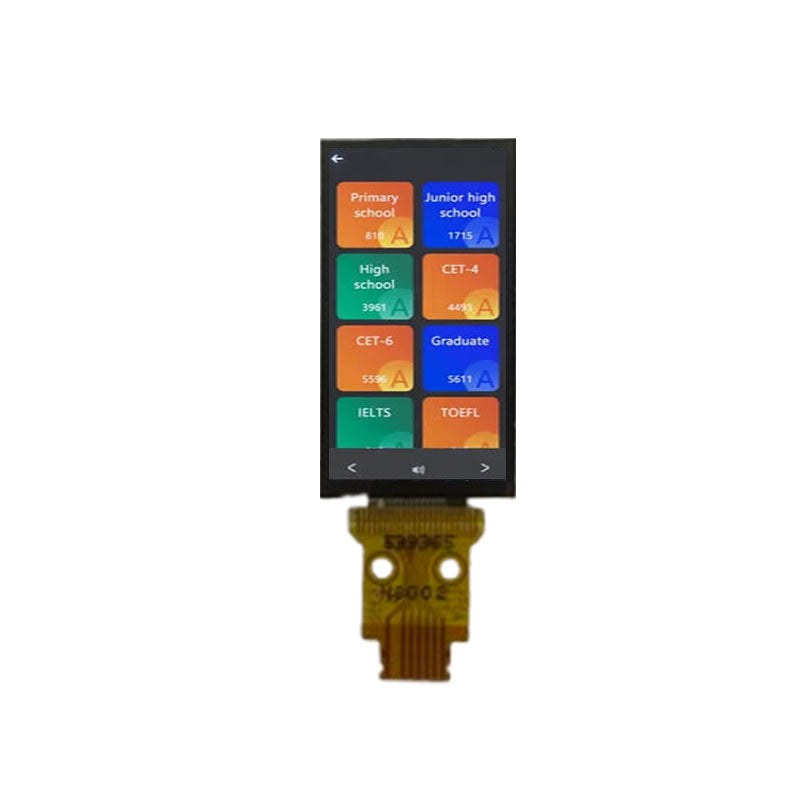

LPM009M360A

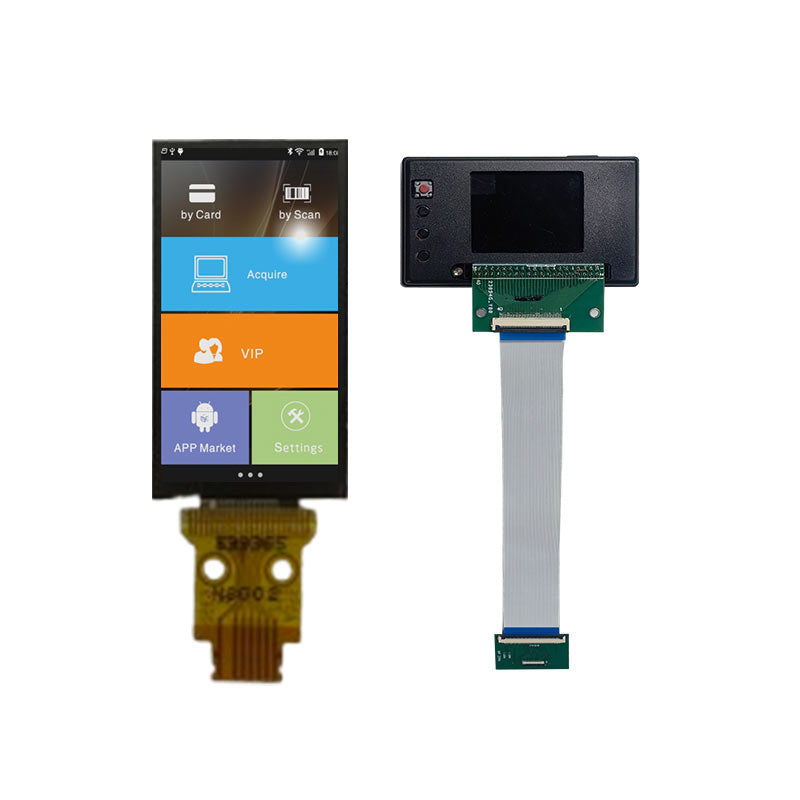

LPM009M360A with demo
LPM009M360A with backlight(NRE)
Reflective MIP Displays Technology

Reflective MIP Displays Application

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
