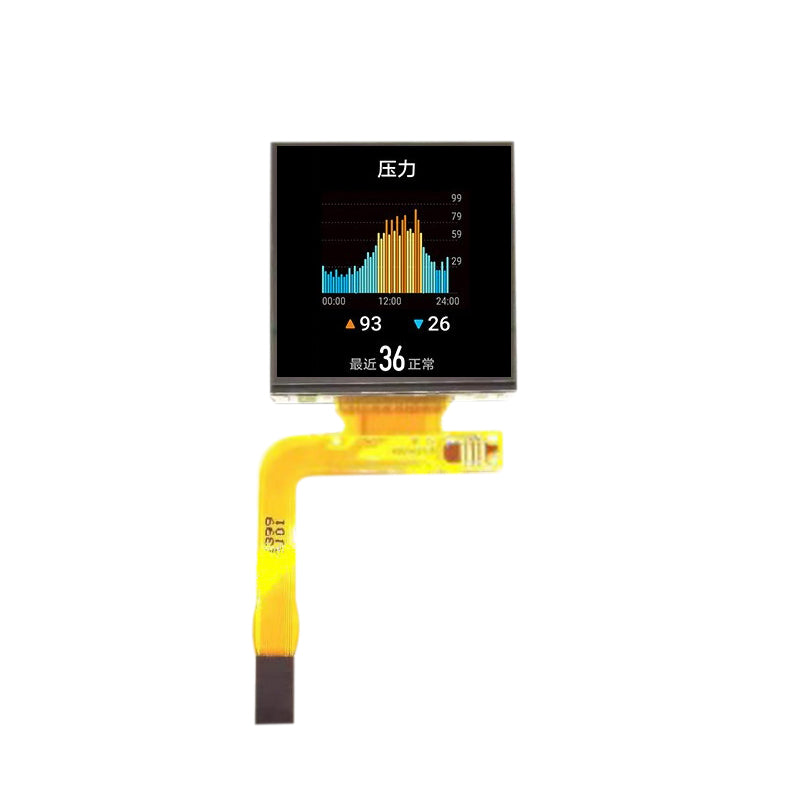

LPM015M135A 1.5 Inch 200x228 Small Size LCD Screen IPS Full Color Display

LPM015M135A Overview
LPM015M135A supports display 200(RGB)×228 with aspect ratio of 8:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 25.2(W)×28.728(H) mm, outline size of 28(W)×33.428(H)×1.01(D) mm, with surface treament of Hard coating (2H), net weight of 1.70g (Typ.). As a ECB, Normally Black, Reflective LCM product, LPM015M135A can provides , 20:1 (Typ.) reflective contrast ratio, 60/65/65/60 (Typ.)(CR≥2) (L/R/U/D) viewing angle , and response time of 3/6 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 2-bit gray scale signal for each dot, thus presenting a palette of 64 colors, also with performance of color gamut 17% (NTSC). This product have no backlight, external backlight driver is additionally needed. LPM015M135A utilizes Parallel Data (1ch, 6-bit) as it's signal inputting systerm, which connected by 24 pins Connector with power supply voltage of 3.3/4.5V (Typ.)(VLCD/VDDP). It's typical vertical frame rate (Fv) is 60Hz.

Application
For industrial & smart home appliances & medical instruments & automotive display.

Reflective MIP Displays Technology

Reflective MIP Displays Application

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
