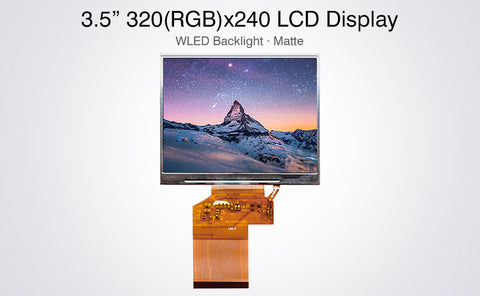

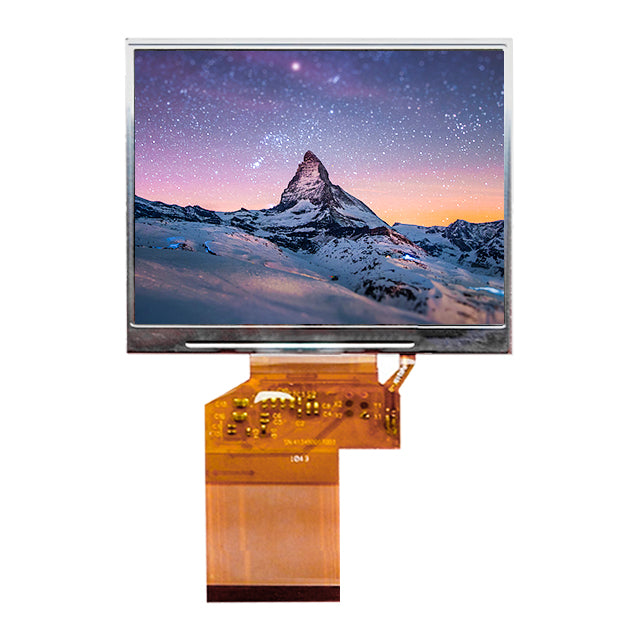

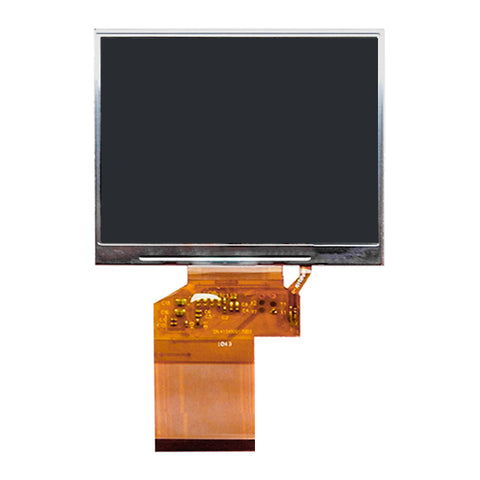

LQ035NC111 3.5 Inch 320x240 TFT Transflective LCD 54 Pins HDMI Control Driver Board

LQ035NC111 3.5 Inch 320x240 TFT Transflective LCD 54 Pins HDMI Control Driver Board

$28.07 USD
$33.00 USD $28.07 USD
Sale Sold out


LQ035NC111 Original 3.5 Inch 320x240 TFT Transflective LCD 54 Pins HDMI Control Driver Board

Product size

3.5-inch

Type

LCM ,   a-Si TFT-LCD

Pixel Format

320(RGB)×240   (QVGA)  115PPI

Configuration

RGB Vertical Stripe

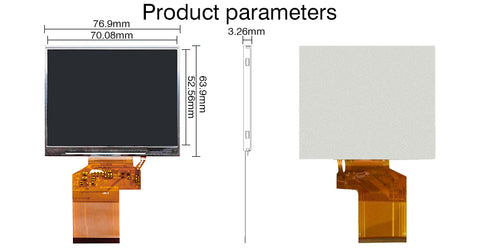

Active Area

70.08 × 52.56 (H×V)

Outline Dim.

76.9 × 63.9 × 3.46 (H×V×D)

Bezel Area

73.03 × 55.50 (H×V)

Treatment

Antiglare (Haze 20%)

Luminance

300 cd/m² (Typ.)

Contrast Ratio

400 : 1 (Typ.) (TM)

View Direction

6 o'clock

Response Time

10/15 (Typ.)(Tr/Td) ms

Viewing Angle

60/60/50/55 (Typ.)(CR≥10)

Operating Mode

TN, Normally White, Transmissive

Support Color

16.7M   60% NTSC

Light Source

6S1P WLED , 10K hours , No Driver

Weight

30.0g (Typ.)

Designed For

Handheld & PDA Portable Navigation Digital Still Camera Digital Video Camera

Frequency

60Hz

Touch Panel

Without

Interface Type

Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins FPC

Power Supply

3.3V (Typ.)

Environment

Storage Temp.: -30 ~ 80 °C    Operating Temp.: -20 ~ 70 °C
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
