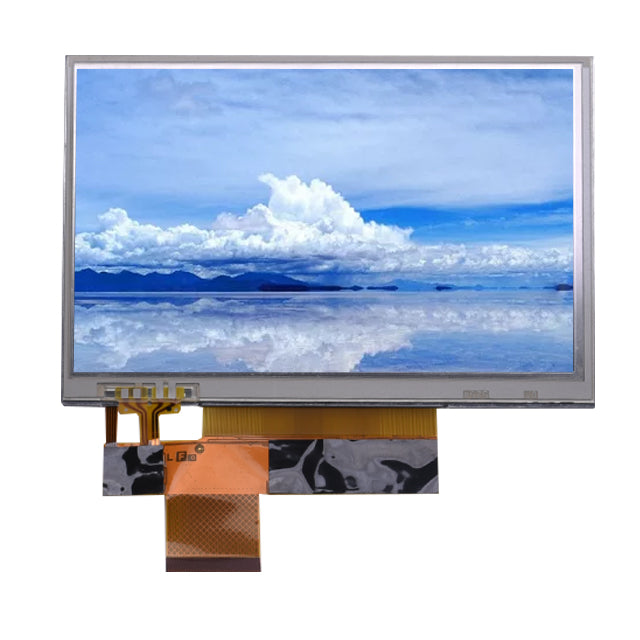

LQ048Y3DH01 Sharp 4.8 Inch 800x480 Touch LCD Module For Handheld&PDA

LQ048Y3DH01 Sharp 4.8 Inch 800x480 Touch LCD Module For Handheld&PDA

$66.00 USD
$70.00 USD $66.00 USD
Sale Sold out


LQ048Y3DH01 Sharp 4.8 Inch 800x480 Touch LCD Module For Handheld&PDA

Manufacturer
Sharp
ModelName
LQ048Y3DH01
ScreenSize
4.8 inch
Type
a-Si TFT-LCD, LCM
PixelNumber
800x480(RGB)(WVGA)
Configuration
RGB Horizontal Stripe
Active Area(mm)
104.4(H)×62.64(V) mm
Outline Dim.
116.5(H)×77.9(V) mm
Bezel Area(mm)
108.68(H)×66.46(V) mm
Treatment
Antiglare, Hard coating (2H)
Luminance
400cd/m2(Typ.)
ContrastRatio
300:1(Typ.)(TM)
Viewing Angle
45/45/20/55(Typ.)(CR210)
Operating Mode
TN, Normally White, Transmissive
Weight
65.0g
Response Time
30/30 (Typ.)(Tr/Td)
Support Color
16.7M 47% NTSC
Light Source
WLED [7S2P] , W/O Driver
Refresh Rate
60Hz
Touch Panel
4-wire Resistive Touch
Interface Type
67 pins Parallel RGB (1 ch, 8-bit) + SPI , FPC
VoltageSupply
1.8/2.85V(Typ.)(VDDIO/NCI)
Environment
Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -30 ~ 85 °C
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
