LQ050T1SX02 5 inch LCD Module 1080x1920 MIPI interface FHD IPS Display

LQ050T1SX02 5 inch LCD Module 1080x1920 MIPI interface FHD IPS Display

$35.00 USD
$38.00 USD $35.00 USD
Sale Sold out

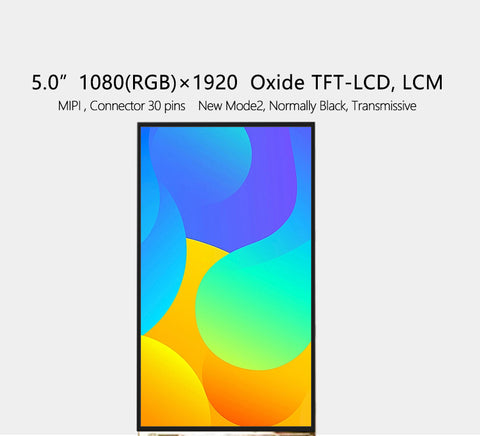

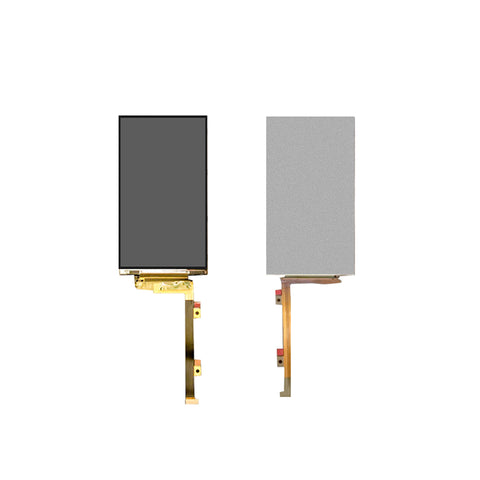

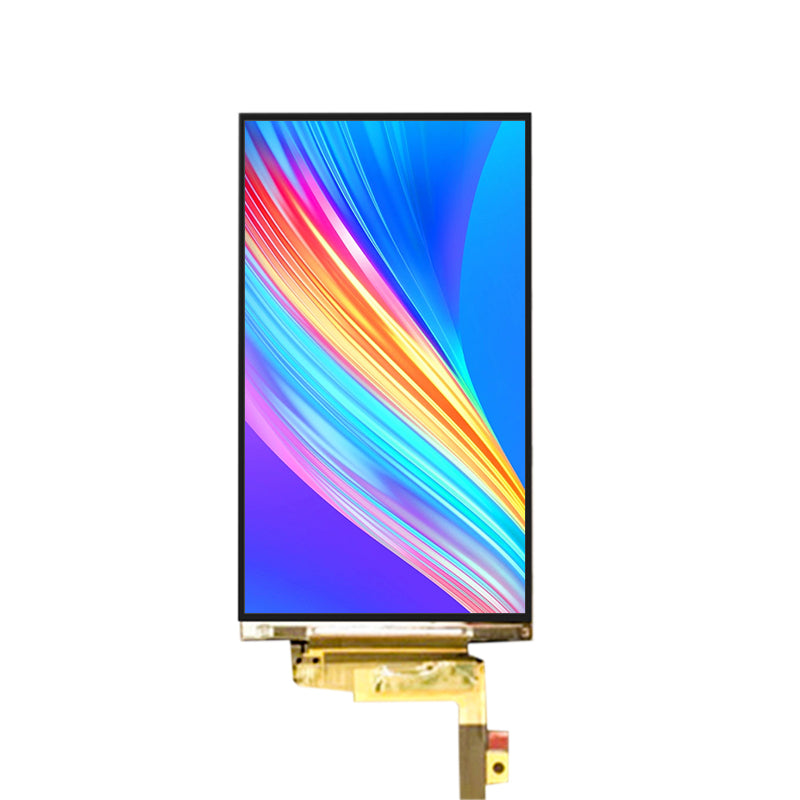

LQ050T1SX02 Original 5 inch LCD Module 1080x1920 MIPI interface FHD IPS Display

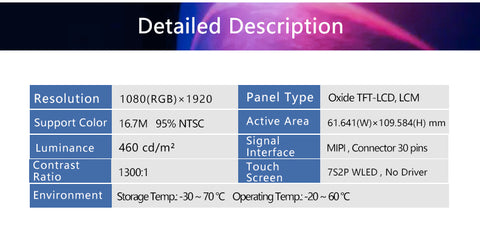

Product size

5.0-inch

Type

Oxide TFT-LCD, LCM

Pixel Format

1080(RGB)×1920  [FHD]  445PPI

Configuration

RGB Vertical Stripe

Active Area

61.641(H)×109.584(V) mm

Outline Dim.

64.041(H)×116.224(V) ×1.13(D) mm

Luminance

460 cd/m² (Typ.)

Contrast Ratio

1300:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

35 (Max.)(Tr+Td)

Viewing Angle

85/85/85/85 (Min.)(CR≥10)

Operating Mode

New Mode2, Normally Black, Transmissive

Support Color

16.7M   95% NTSC

Light Source

WLED  [7S2P] , W/O Driver

Weight

13.1g

Designed For

Mobile Phone

Frequency

60Hz

Touch Panel

Without

Interface Type

MIPI , 30 pins Connector

Power Supply

1.8/5.5/-5.5V (Typ.)(IOVDD/VSP/VSN)

Environment

Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
