LQ050T1SX05 5 Inch 1080x1920 With MIPI 34 Pins Connector LCD Display Module

LQ050T1SX05 5 Inch 1080x1920 With MIPI 34 Pins Connector LCD Display Module

$26.33 USD
$29.92 USD $26.33 USD
销售额 售罄
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.


LQ050T1SX05 Original 5 Inch 1080x1920 With MIPI 34 Pins Connector LCD Display Module

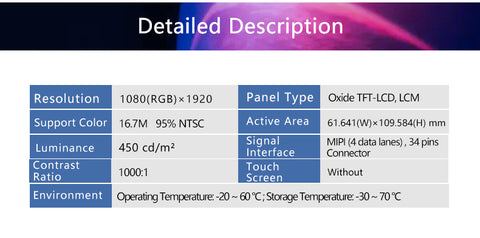

LCD SPECIFICATION
Diagonal Size
5.0 inch
Type
LCM, Oxide TFT-LCD
Pixel Format
1080(RGB)×1920 (FHD)
Arrangement
RGB Vertical Stripe
Active Area
61.641 × 109.584 (H×V)
Outline(mm)
64.041 × 116.224 × 1.16 (H×V×D)
Bezel Area(mm)
-
Treatment
Hard coating (3H)
Luminance
450 cd/m² (Typ.)
Contrast Ratio
1000 : 1 (Typ.) (TM)
Viewing Angle
80/80/80/80 (Min.)(CR≥10)
Response
45 (Max.)(Tr+Td) ms
Good View at
Symmetry
Work Mode
New Mode2, Normally Black, Transmissive
Color Depth
16.7M 95% NTSC
Backlight
7S2P WLED , No Driver
Mass
14.0g
Designed For
Mobile phone
Refresh Rate
60Hz
Touch Panel
Without
Signal Type
MIPI (4 data lanes) , Connector 34 pins
Voltage Supply
1.8/5.5/-5.5V (Typ.)(IOVDD/VSP/VSN)
Max. Ratings
Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
