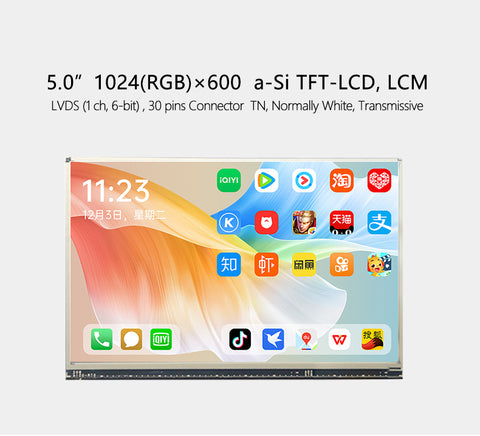

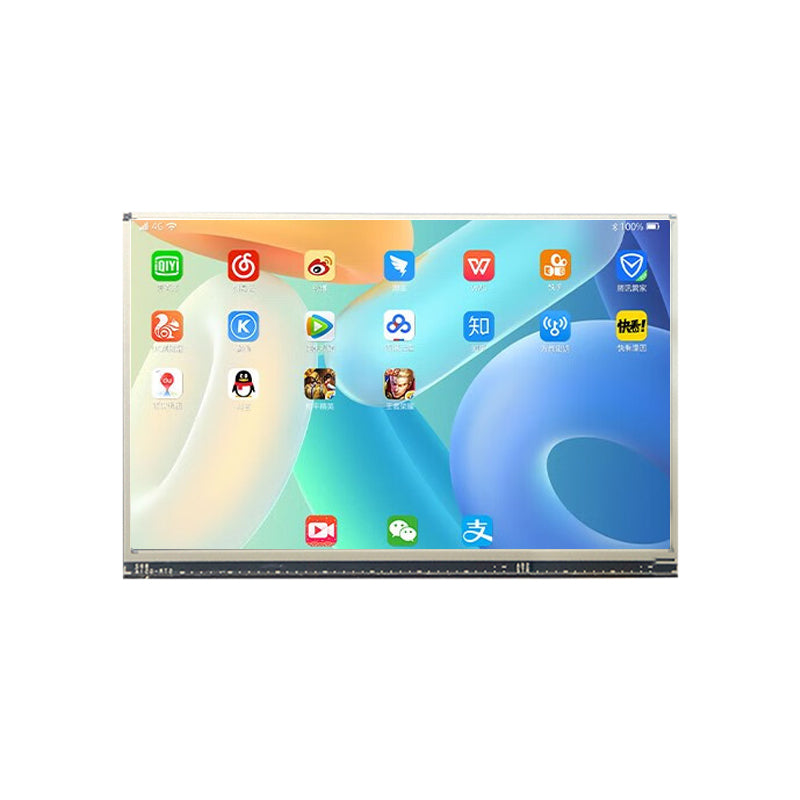

LQ050W1LA0A 5 inch 1024x600 LCD Module With Touch LVDS Interface For Portable Monitor

LQ050W1LA0A 5 inch 1024x600 LCD Module With Touch LVDS Interface For Portable Monitor

$73.04 USD
$83.00 USD $73.04 USD
销售额 售罄
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.


LQ050W1LA0A 5 inch 1024x600 LCD Module With Touch LVDS Interface For Portable Monitor

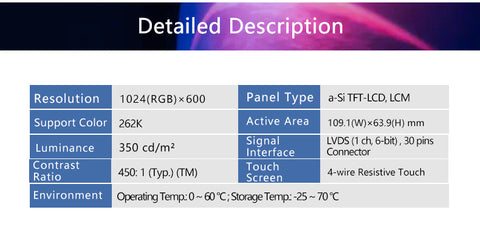

Product size

5.0-inch

Type

LCM,   a-Si TFT-LCD

Pixel Format

1024(RGB)×600   (WSVGA)  238PPI

Configuration

RGB Vertical Stripe

Active Area

109.1 × 63.9 (H×V)

Outline Dim.

119 × 76.3 × 5.6 (H×V×D)

Bezel Area

111.5 × 66.3 (H×V)

Treatment

Antiglare, Hard coating (2H)

Luminance

350 cd/m² (Typ.)

Contrast Ratio

450 : 1 (Typ.) (TM)

View Direction

6 o'clock

Response Time

30 (Typ.)(Tr+Td) ms

Viewing Angle

70/70/50/60 (Typ.)(CR≥10)

Operating Mode

TN, Normally White, Transmissive

Support Color

262K

Light Source

WLED , 15K hours , With LED Driver

Weight

67.0/72.0g (Typ./Max.)

Designed For

MID UMPC

Frequency

-

Touch Panel

4-wire Resistive Touch

Interface Type

LVDS (1 ch, 6-bit) , Connector 30 pins

Power Supply

3.3V (Typ.)

Environment

Storage Temp.: -25 ~ 70 °C    Operating Temp.: 0 ~ 60 °C

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
