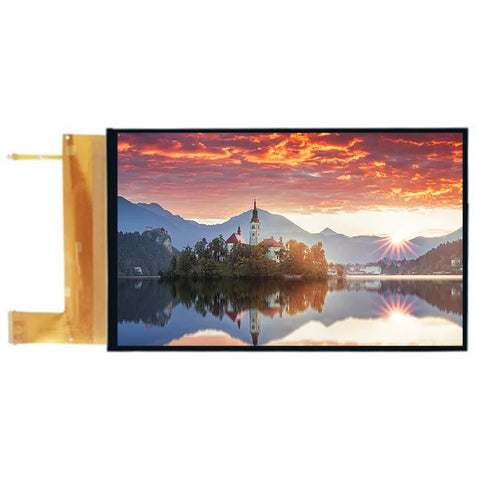

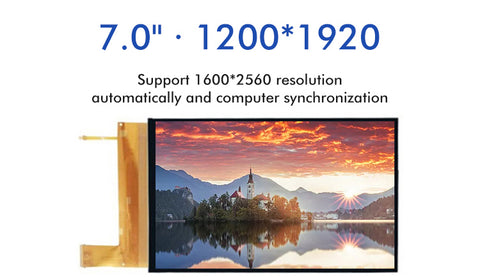

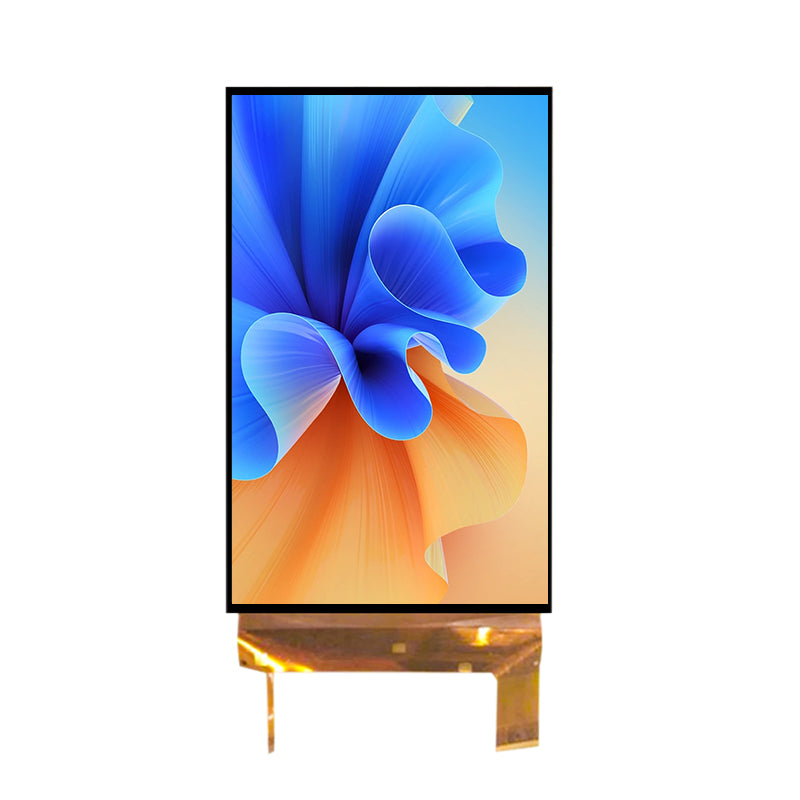

LQ070M1SX01 7 inch 1200x1920 TFT LCD Color High-definition MIPI Interface LCD Screen

LQ070M1SX01 7 inch 1200x1920 TFT LCD Color High-definition MIPI Interface LCD Screen

$32.39 USD
$38.00 USD $32.39 USD
Sale Sold out


LQ070M1SX01 7 inch 1200x1920 TFT LCD Color High-definition MIPI Interface LCD Screen

Product size
7.0-inch
Type
Oxide TFT-LCD, LCM
Pixel Format
1200(RGB)×1920, WUXGA 322PPI
Configuration
RGB Vertical Stripe
Active Area
94.5(W)×151.2(H) mm

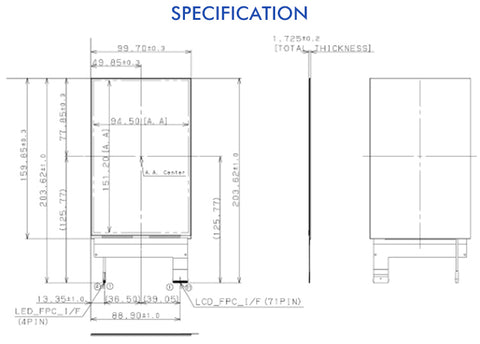

Outline Dim.
99.7(W)×159.85(H)×2.23(D) mm
Bezel Area
/
Treatment
Clear, Hard coating
Luminance
400 cd/m² (Typ.)
Contrast Ratio
2000:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
9/13 (Typ.)(Tr/Td)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Operating Mode
ASV, Normally Black, Transmissive
Support Color
16.7M 50% NTSC
Light Source
WLED [9S2P] , W/O Driver
Weight
41.0g (Typ.)
Designed For
/
Frequency
60Hz
Touch Panel
Without
Interface Type
 MIPI (2 ch, 2 data lanes) , 71 pins FPC
Power Supply
1.8/3.0/5.5/-5.5V (Typ.)
Environment
Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
