LS010B7DH01 Sharp LCD 0.99 Inch Round LCD Panel 128×128 LCD Display With SPI Interface For Wearable
LS010B7DH01 Sharp LCD 0.99 Inch Round LCD Panel 128×128 LCD Display With SPI Interface For Wearable
Couldn't load pickup availability
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.

Product Introduction
Overview
LS010B7DH01 is a 0.99 inch diagonal CG-Silicon display screen product from Sharp, without backlight, without touch screen.LS010B7DH01 supports display 128×128 with aspect ratio of 1:1 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 25.024(W)×25.024(H) mm, outline size of 33(W)×33.4(H)×1.84(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 3.70g (Typ.). As a TN, Normally White, Reflective LCM product, LS010B7DH01 can provides , 14:1 (Typ.) reflective contrast ratio, 40/40/60/60 (Min.)(CR≥3) (L/R/U/D) viewing angle , and response time of 10/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 1-bit gray scale signal for each dot, thus presenting a palette of Monochrome colors.
Feature
-Circular Display
-Reflective
-Matte
-Sunlight Readable
Screen Size:0.99 inch
Resolution:128x128
Brand:Sharp
LS010B7DH01 Sharp 0.99 Inch 128×128 Round LCD Panel
What's included in the package ?
-LS010B7DH01
Application
For Wearable & Industrial LCD
Datasheet & Technical Support
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
More Product Pictures



Customization & Manufacturing
Quality is constant
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
SHIPPING & DELIVERY FAQS
1. Where is my product ship from?
All of products are shipped from China/HK.
2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).
3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.
4. What`re the function of HDMI board and demo board?

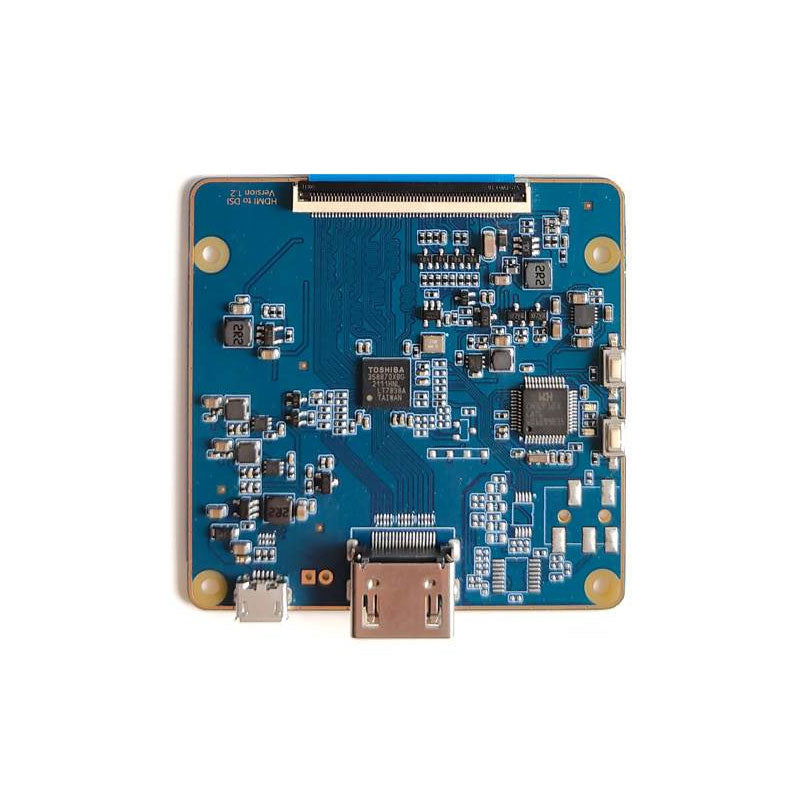

The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
