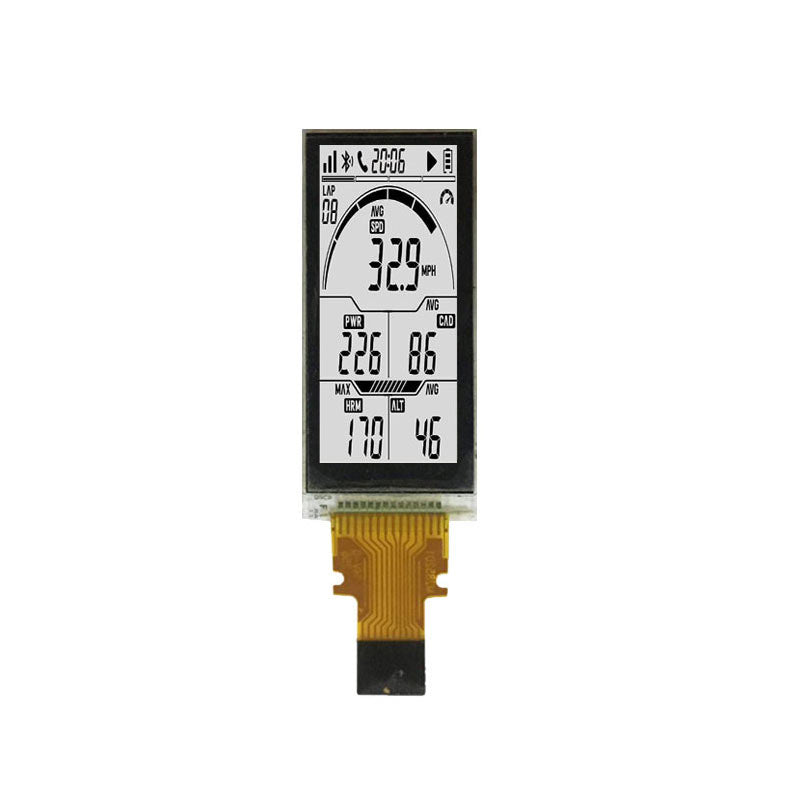

LS011B7DH03 1.1 Inch Reflective LCD Display 160x68 Sunlight Readable LCD For Smart Wearable

LS011B7DH03 1.1 Inch Reflective LCD Display 160x68 Sunlight Readable LCD For Smart Wearable

$7.66 USD
$29.50 USD $7.66 USD
Sale Sold out
LS011B7DH03
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


LS011B7DH03 Overview
LS011B7DH03 is a 1.1 inch diagonal CG-Silicon display screen product, without backlight, without touch screen.LS011B7DH03 supports display 160×68 with aspect ratio of 21:9 (W:H), whose pixels are arranged in Rectangle.It features active area of 25.28(W)×10.744(H) mm, outline size of 32(W)×14(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 0.73g (Typ.). As a TN, Normally White, Reflective LCM product, LS011B7DH03 can provides , 20:1 (Typ.) reflective contrast ratio, 60/60/60/60 (Typ.)(CR≥2) (L/R/U/D) viewing angle , and response time of 10/20 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors.

LS011B7DH03 Feature
-Reflective
-Matte
-Sunlight Readable

Screen Size:1.1 inch
Resolution:160x68
Brand:Sharp
LS011B7DH03 1.1 Inch 160x68 Sunlight Readable LCD Display.

LS011B7DH03 Application
For Wearable & Industrial LCD.
More LS011B7DH03 Options For Reference
LS011B7DH03

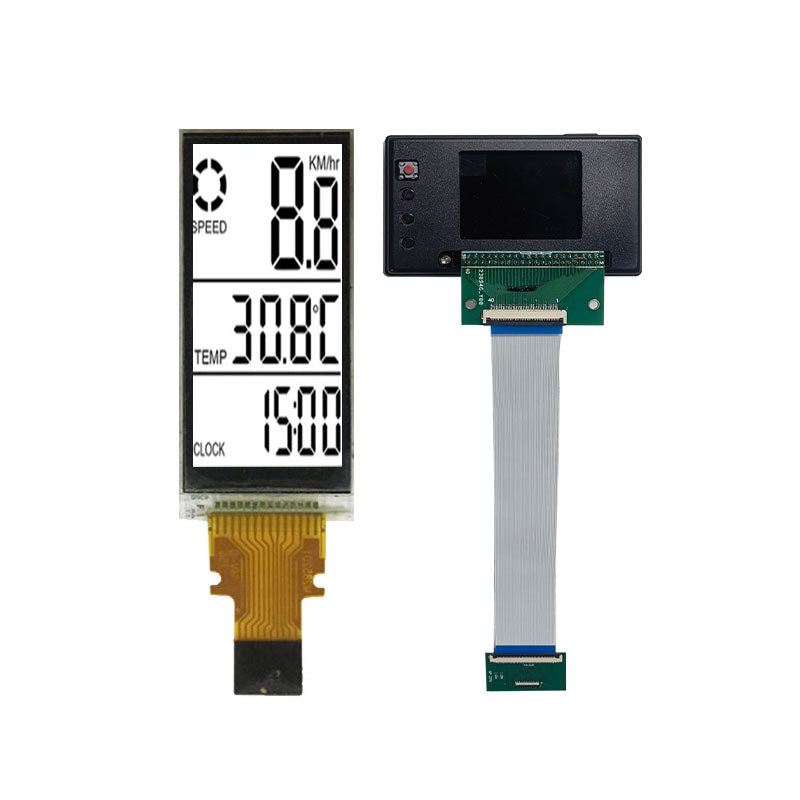

LS011B7DH03 with demo
LS011B7DH03 with backlight(NRE)

Reflective MIP Displays Technology


Reflective MIP Displays Application

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
