LS027B7DH01 2.7 Inch Reflective LCD Display 400x240 SPI Interface LCD Panel For Handheld&PDA

LS027B7DH01 2.7 Inch Reflective LCD Display 400x240 SPI Interface LCD Panel For Handheld&PDA

$22.23 USD
$34.80 USD $22.23 USD
Sale Sold out
LS027B7DH01
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


LS027B7DH01 Overview
LS027B7DH01 is a 2.7 inch diagonal CG-Silicon display panel, without backlight, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized in the following: Reflective, Matte , Memory LCD. Based on its features, we recommend that this model be applied to Handheld & PDA etc.

LS027B7DH01 Specifications

Manufacturer Sharp Model No. LS027B7DH01
Screen Size 2.7 Inch Screen Type CG-Silicon, LCM
Resolution 400 × 240 Pixels, 15:9, WQVGA Pixel Structure Rectangle
Active Area 58.8 × 35.28 mm (H×V) Outline Dimension 62.8 × 42.82 × 1.43 mm (H×V×D)
Weight 9.0g (Max.) Surface Feature Hard Coating
Display Type TN, Normally White, Reflective Display Color Monochrome
Contrast Ratio 14:1 (Typical) (RF) Viewing Angle 55/55/60/60 (Left/Right/Up/Down)
Response Time 10/20 ms (Typical Tr/Td) Good View At Reflective Environment
Power Consumption 50/175 μW (Typical) (Display/Update) Backlight No Backlight
Refresh Rate 1Hz Touchscreen Without Touch Panel
Signal Type SPI, 10-pin FPC Voltage Supply 5.0V / 5.0V (VDD / VDDA)
Operating Temperature -20°C to +70°C Storage Temperature -30°C to +80°C
Application Electronic Price Tag, E-Paper Display, Smart Label Power Mode Ultra Low Power Display

LS027B7DH01 Feature

-Reflective
-Matte
-Memory LCD

Screen Size:2.7 inch
Resolution:400x240
Brand:Sharp
LS027B7DH01 2.7 Inch 400x240 Reflective LCD Display.

LS027B7DH01 Application
For Handheld & PDA,Industrial LCD Display.

LS027B7DH01 Options For Reference

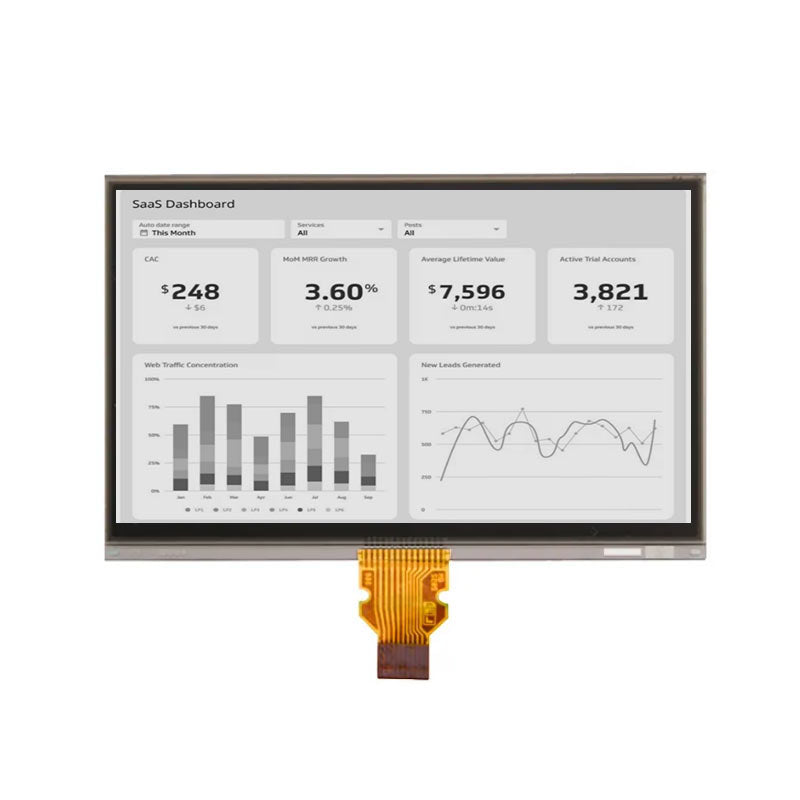

LS027B7DH01
LSLS027B7DH01 with demo

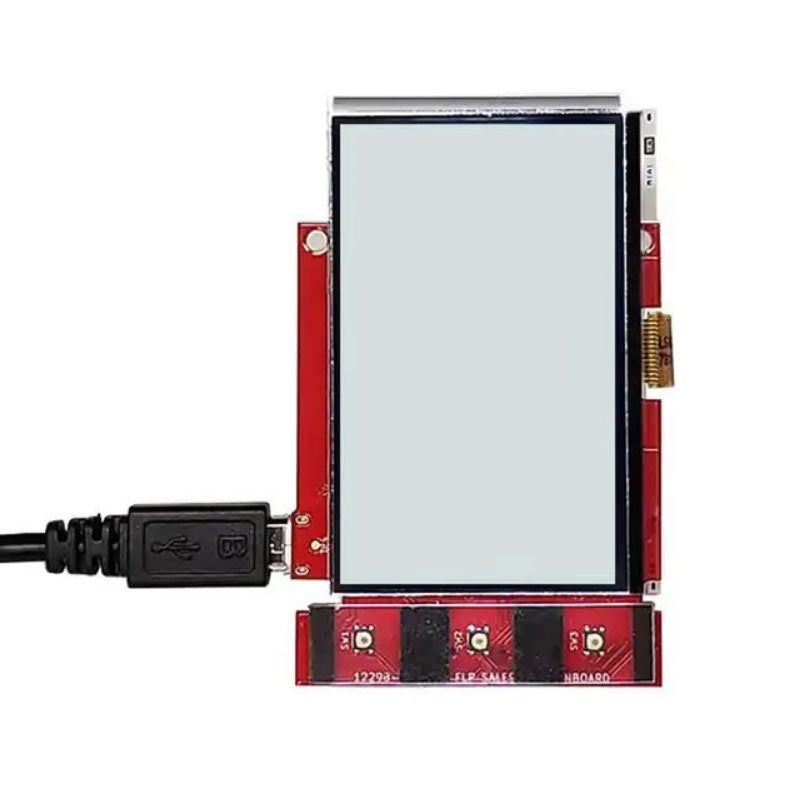

ET12336-01_A1 (LS027B7DH01 with front light and demo)

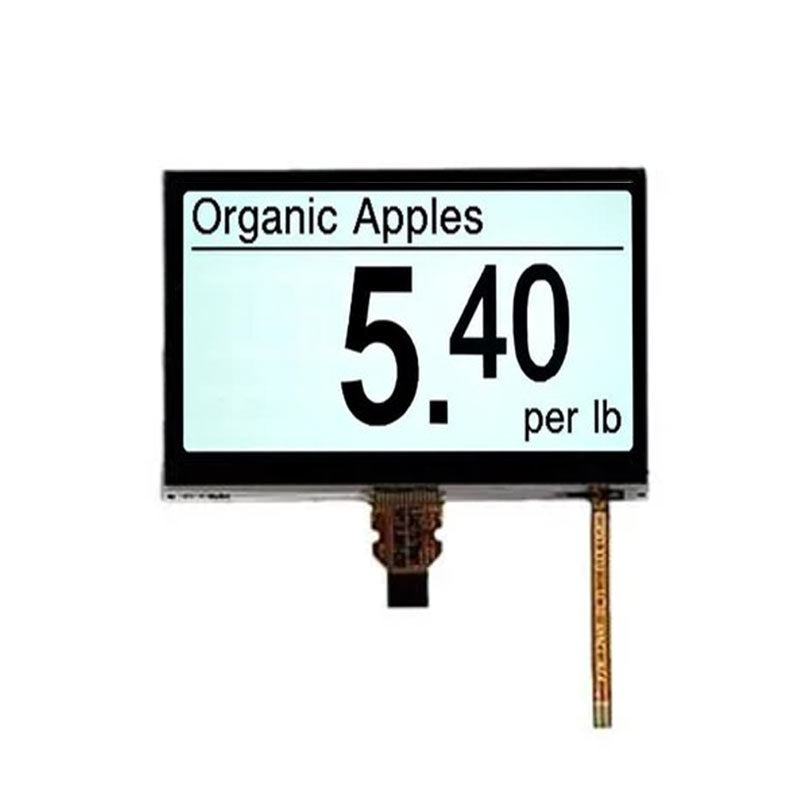

ET11103-03_A1 (LS027B7DH01 with front light)
LS027B7DH01 with backlight(NRE)
Reflective MIP Displays Technology

Reflective MIP Displays Application

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
