LS027B7DH01 with Front Light 2.7 Inch Reflective LCD Display 400x240 SPI Memory-in-Pixel LCD Panel For Handheld PDA

LS027B7DH01 Overview
LS027B7DH01 is a 2.7 inch diagonal CG-Silicon display panel, without backlight, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized in the following: Reflective, Matte , Memory LCD. Based on its features, we recommend that this model be applied to Handheld & PDA etc.

LS027B7DH01 Feature
-Reflective
-Matte
-Memory LCD

Screen Size:2.7 inch
Resolution:400x240
Brand:Sharp
LS027B7DH01 2.7 Inch 400x240 Reflective LCD Display.

LS027B7DH01 Application
For Handheld & PDA,Industrial LCD Display.

LS027B7DH01 Options For Reference

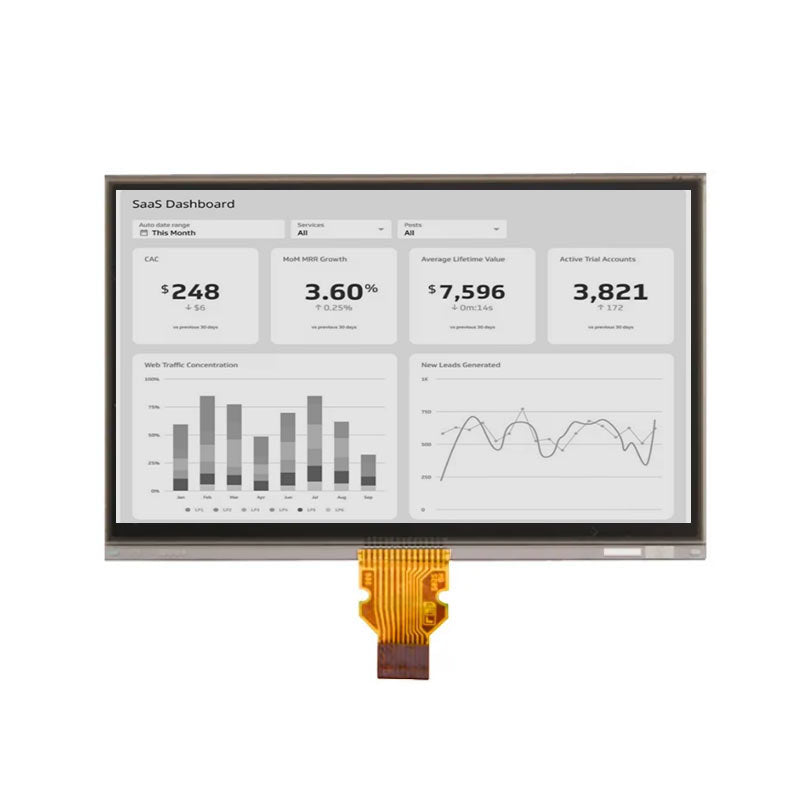

LS027B7DH01

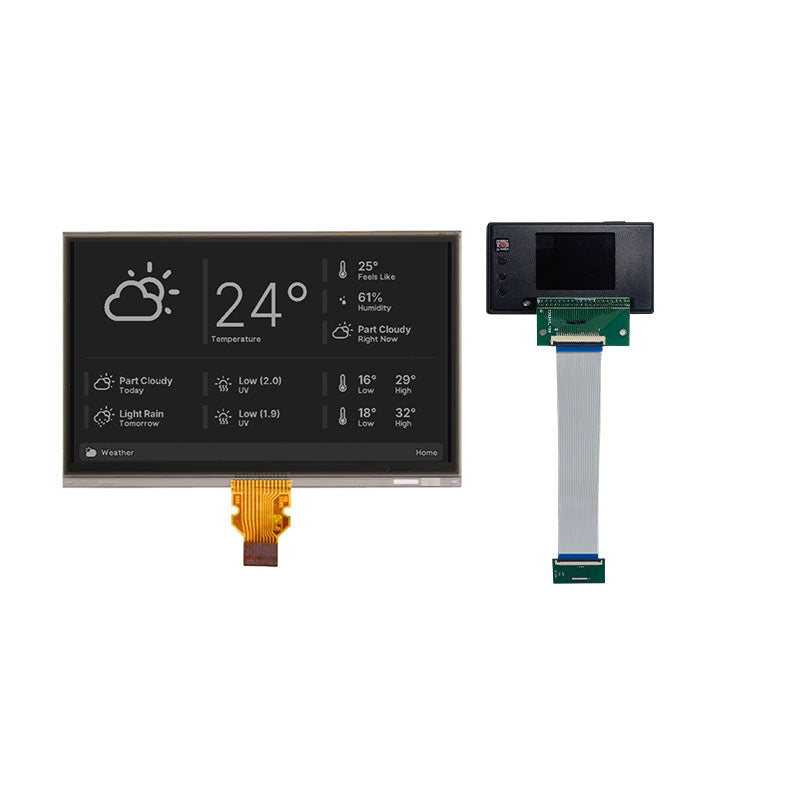

LSLS027B7DH01 with demo

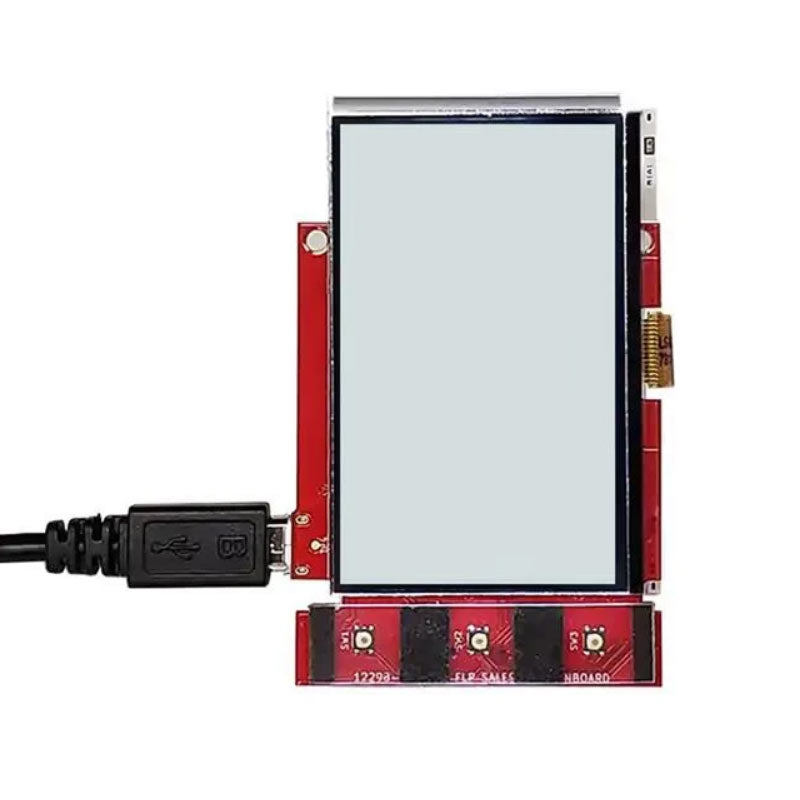

ET12336-01_A1 (LS027B7DH01 with front light and demo)

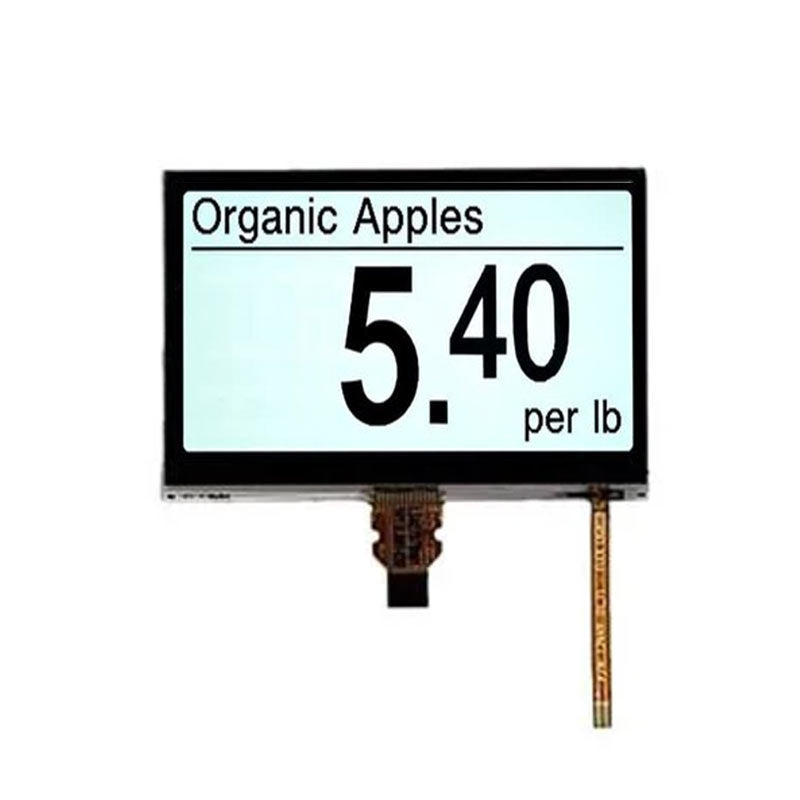

ET11103-03_A1 (LS027B7DH01 with front light)
LS027B7DH01 with backlight(NRE)
Reflective MIP Displays Technology


Reflective MIP Displays Application

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
