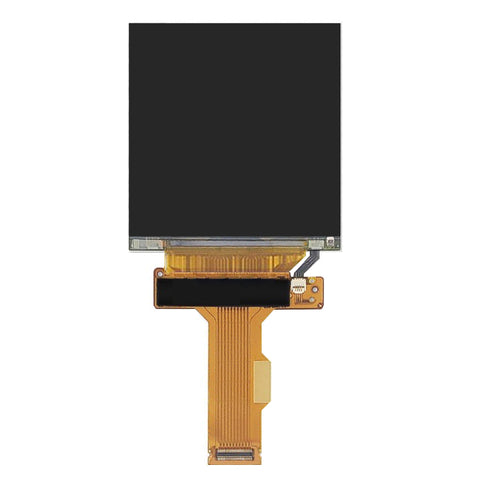

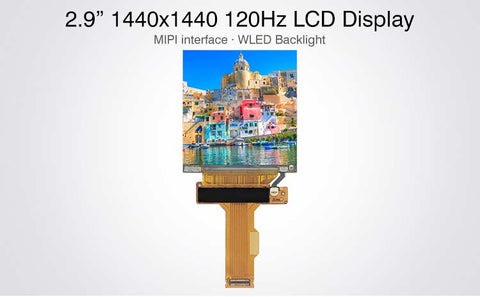

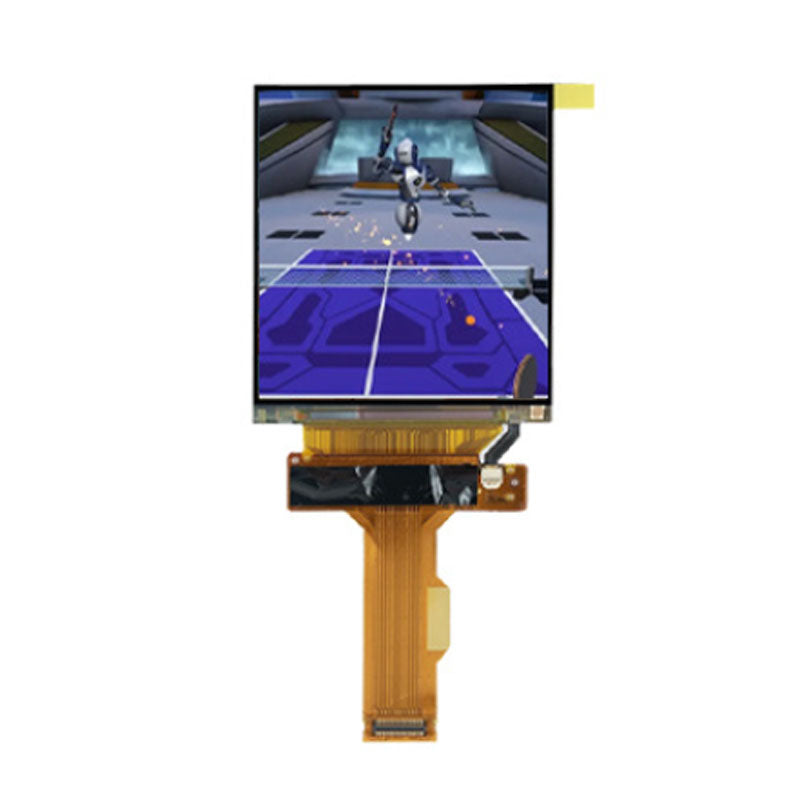

LS029B3SX04 2.9 Inch 1440x1440 MIPI 40-Pin Connector LCD Screen Module For VR AR

LS029B3SX04 2.9 Inch 1440x1440 MIPI 40-Pin Connector LCD Screen Module For VR AR

$37.84 USD
$43.00 USD $37.84 USD
销售额 售罄
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.


LS029B3SX04 Original 2.9 Inch 1440x1440 MIPI 40-Pin Connector LCD Screen Module For VR AR



Product size
2.9-inch
Type
LCM , CG-Silicon
Pixel Format
1440(RGB)×1440 705PPI
Configuration
RGB Vertical Stripe
Active Area
51.84 × 51.84 (H×V)

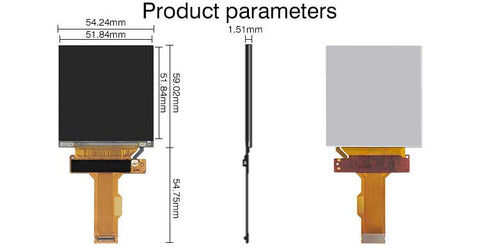

Outline Dim.
54.24 × 59.02 × 1.51 (H×V×D)
Luminance
150 cd/m² (Typ.)
Contrast Ratio
600 : 1 (Typ.) (TM)
View Direction
-
Response Time
4.6/3.5 (Typ.)(Tr/Td) ms
Viewing Angle
Symmetry
Operating Mode
SFR, Normally Black, Transmissive
Support Color
16.7M 70% NTSC
Light Source
2 strings WLED , No Driver
Weight
7.20g (Typ.)
Designed For
HMD VR AR
Frequency
120Hz
Touch Panel
Without
Interface Type
MIPI (2 ch, 4 data lanes) , 40 pins Connector
Power Supply
1.8/5.5/-5.5V (Typ.)(VDDI/AVDD/AVEE)
Environment
Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
