LS032B3SX02 Sharp 3.2 Inch High Brightness LCD Panel 1024x682 Touch MIPI LCD Display For Handheld&PDA

Overview

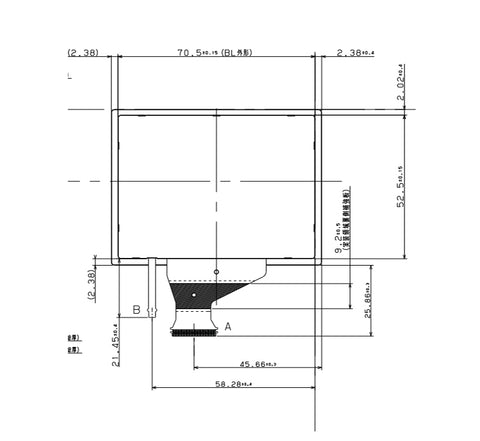

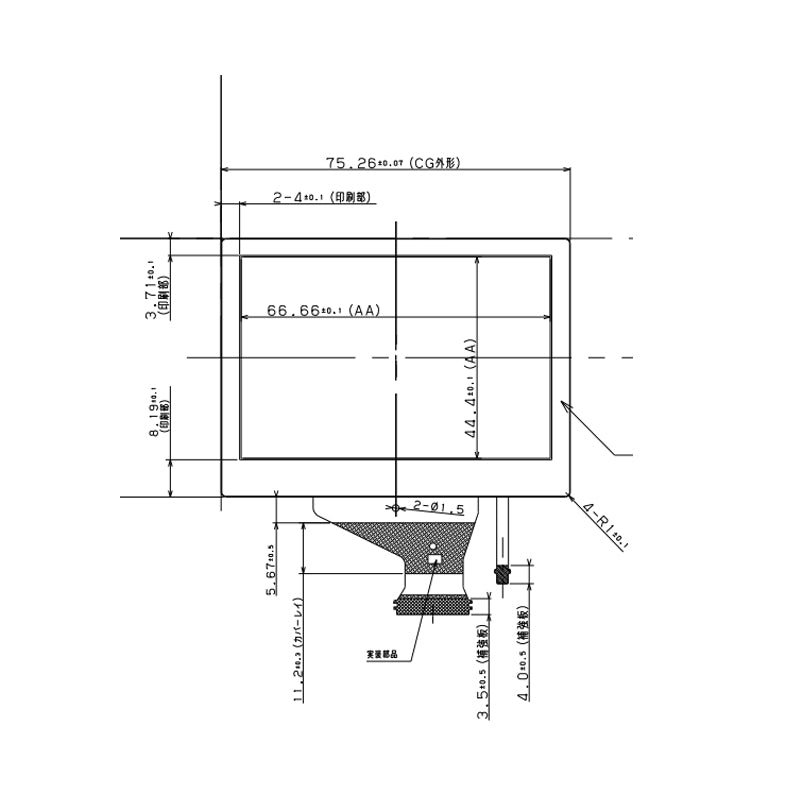

LS032B3SX02 supports display 1024(RGB)×682 with aspect ratio of 15:10 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 390 PPI. As for mechanical detail, it features active area of 66.66(W)×44.4(H) mm, outline size of 75.26(W)×56.9(H)×3.35(D) mm, with surface treament of Anti Fingerprint, Hard coating (6H), net weight of 27.0g (Typ.). As a New Mode2, Normally Black, Transmissive LCM product, LS032B3SX02 can provides 630 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Min.)(CR≥100) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB).

Feature
-sRGB
-With Touch
-Hight Brightness
-WLED Backlight
-U/D,L/R Reverse

Screen Size:3.2 inch
Resolution:1024x682
Brand:Sharp
LS032B3SX02 Sharp 3.2 Inch 1024x682 High Brightness LCD Panel With Touch.

What's included in the package ?
-LS032B3SX02
Application
For Handheld&PDA, Industrial LCD

Datasheet & Technical Support
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

More Product Pictures

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
