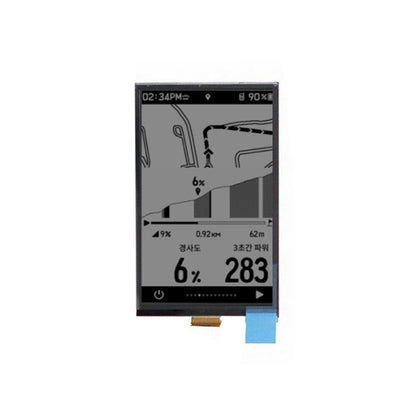

LS032B7DD02 with Front Light Sharp 3.2 Inch Memory-in-Pixel LCD Display 336x536 Sunlight Readable 3-wire SPI Small LCD Display

Product Introduction

LS032B7DD02 Overview
LS032B7DD02 is a 3.2 inch diagonal CG-Silicon display screen product, without backlight, without touch screen.LS032B7DD02 supports display 336×536 with aspect ratio of 10:16 (W:H), whose pixels are arranged in Rectangle. It features active area of 42.672(W)×68.072(H) mm, outline size of 47.02(W)×76(H)×0.705(D) mm, with surface treament of Hard coating, net weight of 5.5g (Max.), utilizing 0.20+0.20 mm mm plate. As a TN, Normally White, Reflective CELL product, LS032B7DD02 can provides , 35:1 (Typ.) reflective contrast ratio, 60/60/60/60 (Typ.)(CR≥2) (L/R/U/D) viewing angle , and response time of 10/20 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors.

LS032B7DD02 Feature

-Portrait Type
-Reflective
-Sunlight Readable

Screen Size:3.2 inch
Resolution:336x536
Brand:Sharp
LS032B7DD02 Sharp 3.2 Inch 336×536 Sunlight Readable LCD Display.

LS032B7DD02 Application
For Wearable & Industrial LCD Display.

LS032B7DD02 Options For Reference

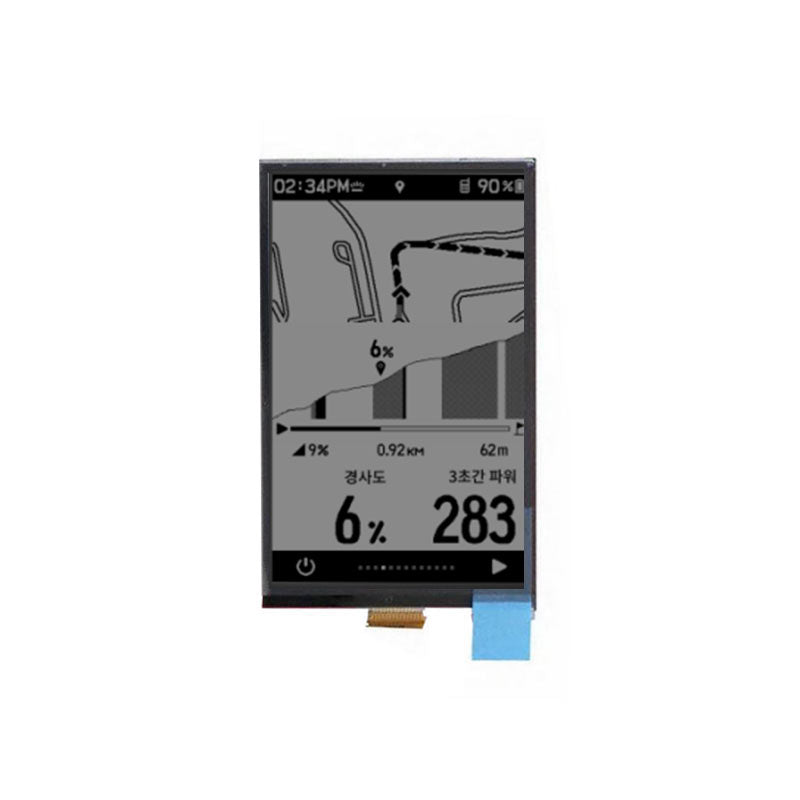

LS032B7DD02

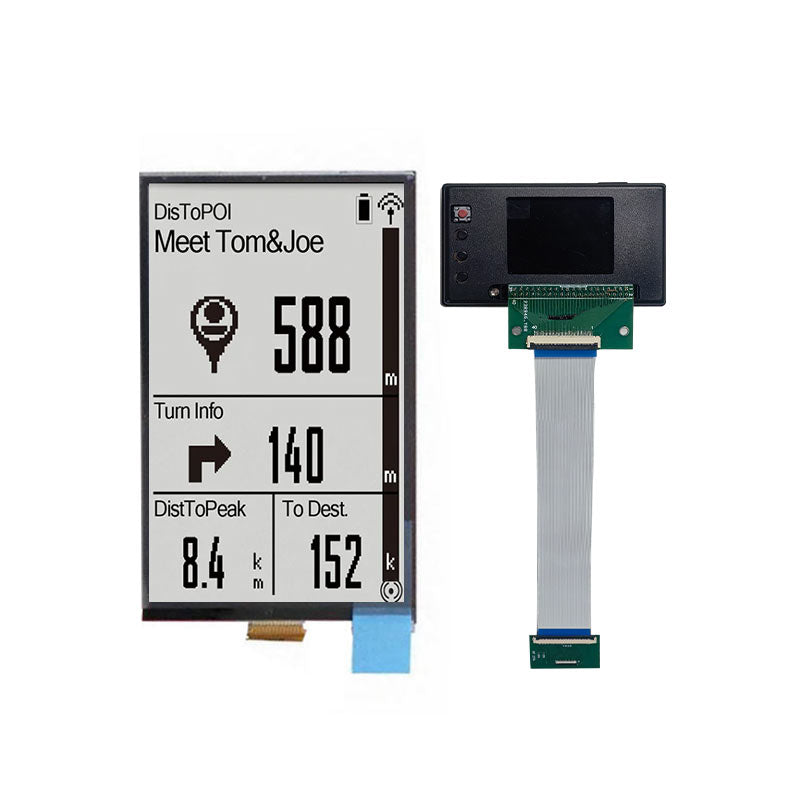

LS032B7DD02 with demo

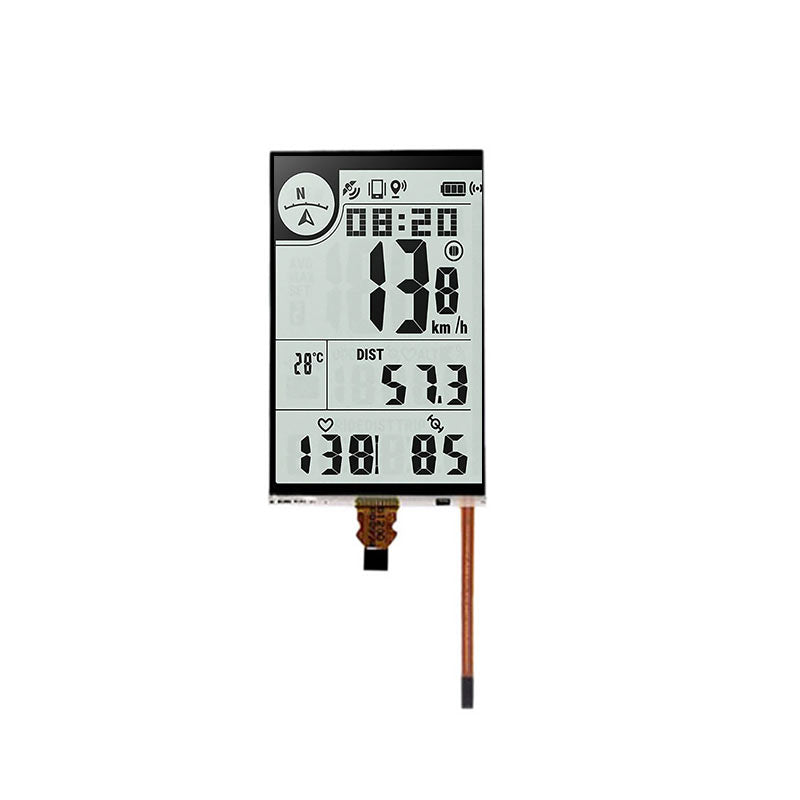

ET12936-01_A1 (LS032B7DH02 with front light)

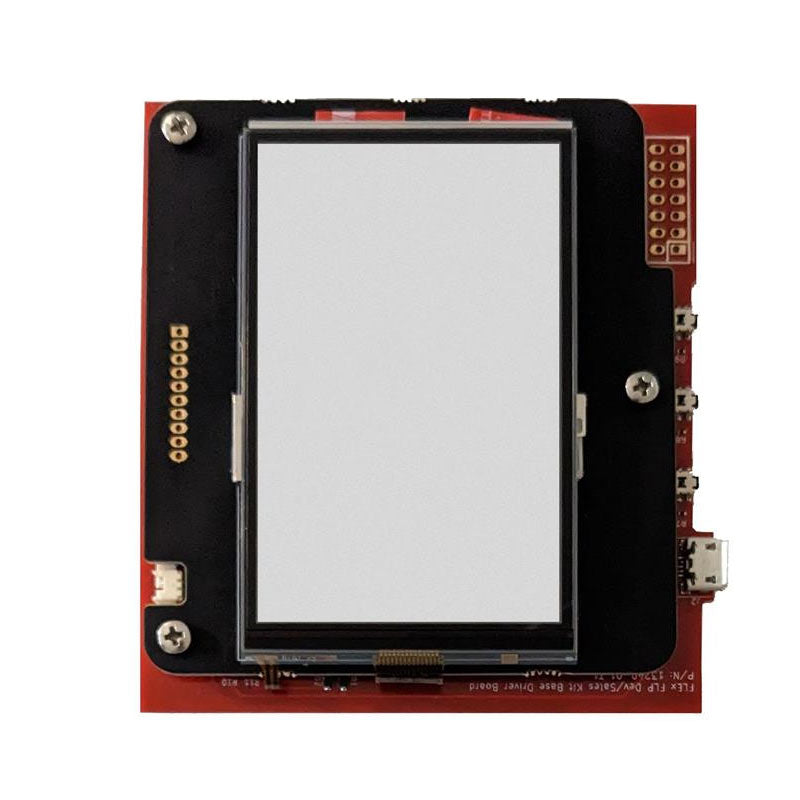

ET13249-01_A1 (LS032B7DH02 with front light and demo)
LS032B7DD02 with backlight(NRE)
Reflective MIP Displays Technology

Reflective MIP Displays Application

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
