LS035Y8DX04A 3.5 Inch Free Angle 480x800 Square LCD Screen Panel

LS035Y8DX04A 3.5 Inch Free Angle 480x800 Square LCD Screen Panel

$43.99 USD
$49.99 USD $43.99 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


LS035Y8DX04A 3.5 Inch Free Angle 480x800 Square LCD Screen Panel

Product size
3.5-inch
Type
CG-Silicon, LCM
Pixel Format
480(RGB)×800 [WVGA] 268PPI
Configuration
RGB Vertical Stripe

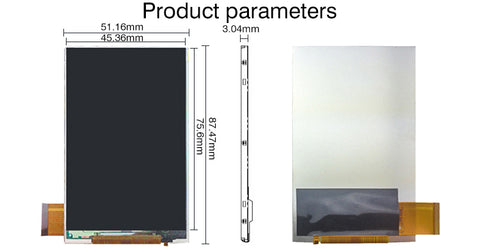

Active Area
45.36(H)×75.6(V) mm
Outline Dim.
51.16(H)×87.47(V) ×3.04(D) mm
Bezel Area
46.36(H)×76.6(V) mm
Treatment
-
Luminance
400 cd/m² (Typ.)
Contrast Ratio
900:1 (Typ.) (TM) 10:1 (Typ.) (RF)
View Direction
Symmetry
Response Time
11/24 (Typ.)(Tr/Td)
Viewing Angle
80/80/80/80 (Typ.)(CR≥5)
Operating Mode
ASV, Normally Black, Transflective
Support Color
16.7M 50% NTSC
Light Source
WLED [7S1P] , W/O Driver
Weight
14.9g (Typ.)
Designed For
Mobile Phone
Frequency
60Hz
Touch Panel
Without
Interface Type
Parallel RGB (1 ch, 8-bit) + SPI , 49 pins FPC
Power Supply
1.8/2.8V (Typ.)(VDDIO/VCC)
Environment
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
