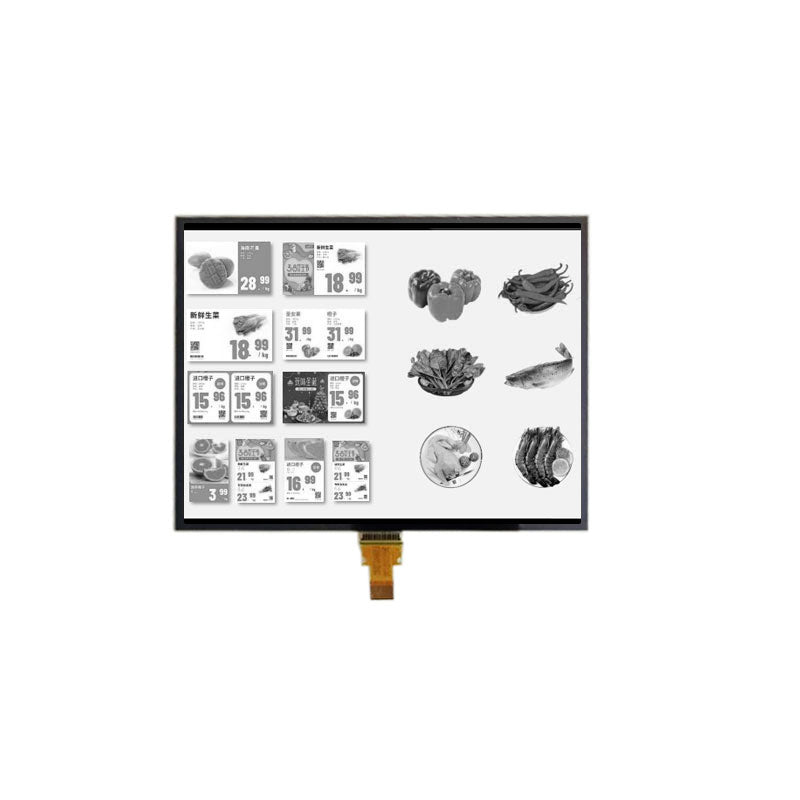

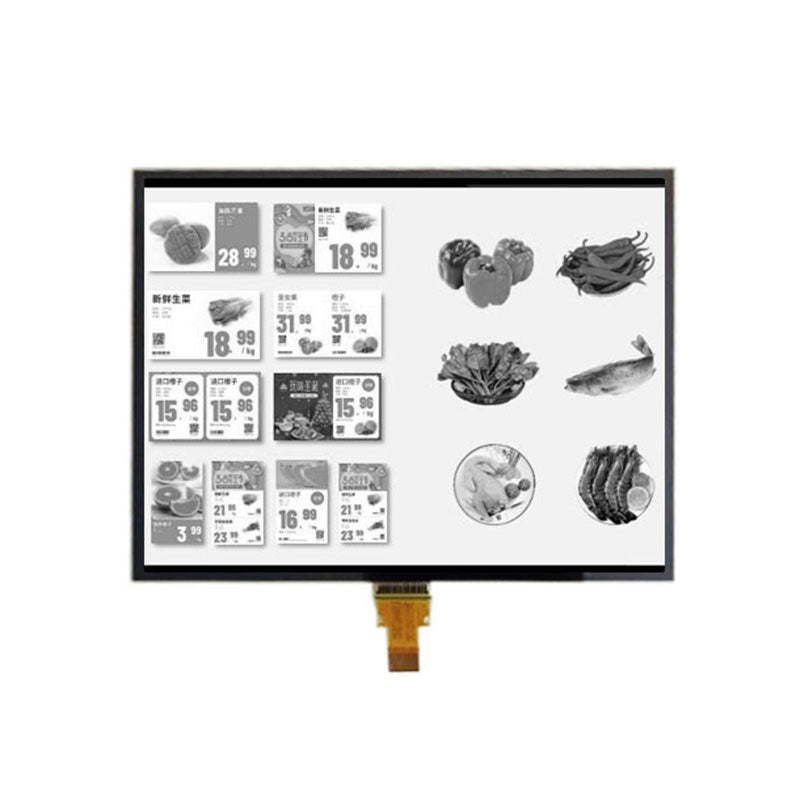

LS044Q7DH01 4.4 Inch Sunlight Readable LCD 320x240 SPI Interface LCD Panel For Handheld&PDA

Overview
LS044Q7DH01 is a 4.4 inch diagonal CG-Silicon display screen product from Sharp, without backlight, without touch screen. LS044Q7DH01 supports display 320×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. Iit features active area of 89.6(W)×67.2(H) mm, outline size of 94.8(W)×75.2(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 26.0g. As a TN, Normally White, Reflective LCM product, LS044Q7DH01 can provides , 18:1 (Typ.) reflective contrast ratio, 60/60/60/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 10/20 (Typ.)(Tr/Td) ms.

Feature
-Reflective
-Matte
-Sunlight Readable

Screen Size:4.4 inch
Resolution:320x240
Brand:Sharp
LS044Q7DH01 4.4 Inch 320x240 Sunlight Readable LCD

What's included in the package ?
-LS044Q7DH01
Application
For Wearable & Industrial LCD

Datasheet & Technical Support
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

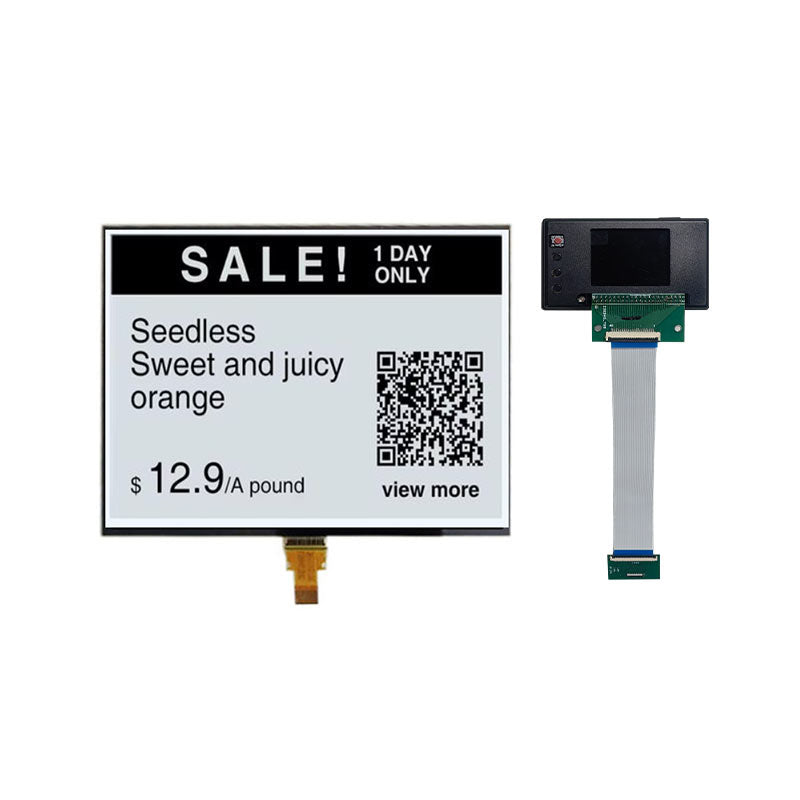

More Product Pictures

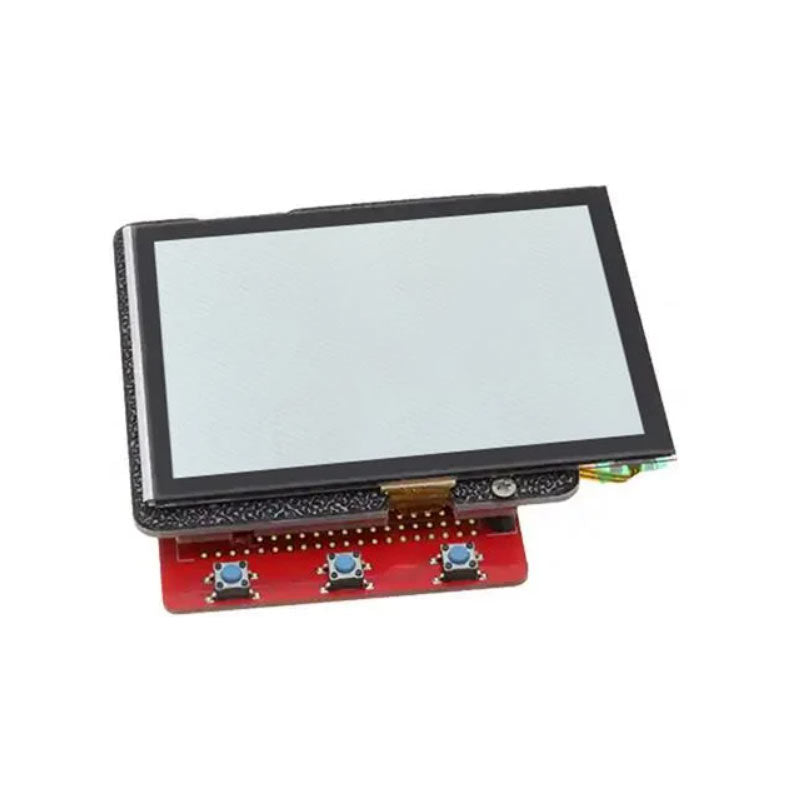

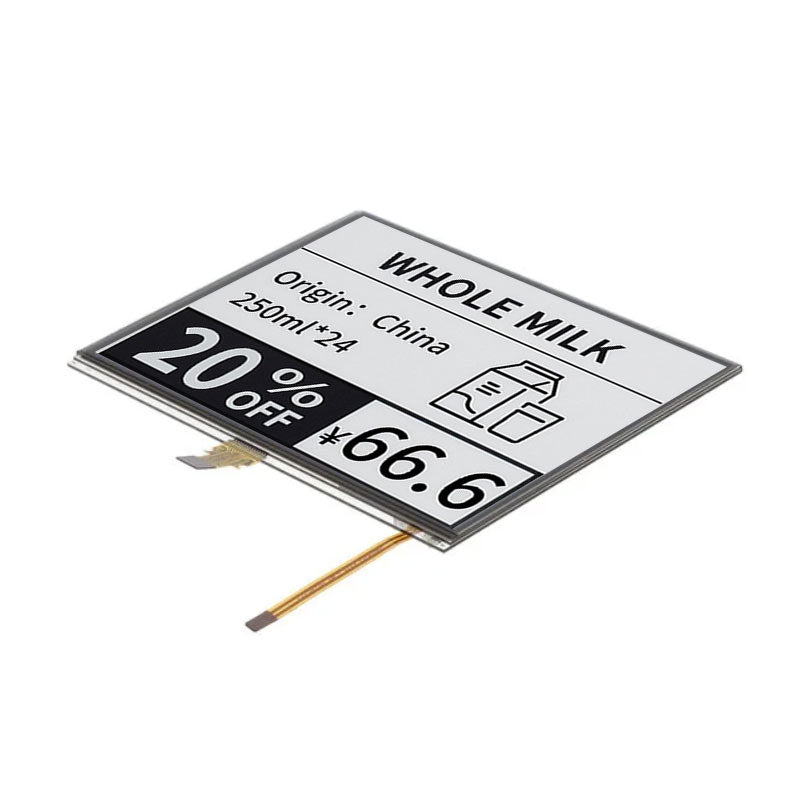

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
