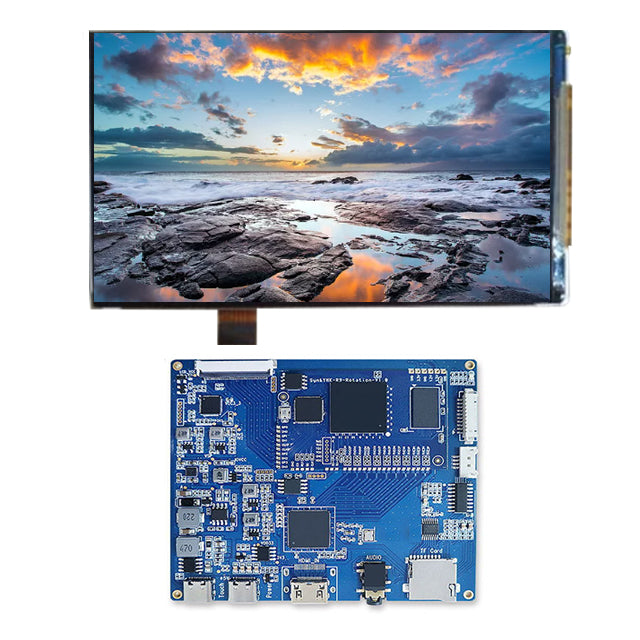

LS048K3SX01 Original 4.8 Inch 720x1280 LCD Display 40pin MIPI interface LCD Screen With Board

LS048K3SX01 Original 4.8 Inch 720x1280 LCD Display 40pin MIPI interface LCD Screen With Board

$73.00 USD
$78.00 USD $73.00 USD
Sale Sold out


LS048K3SX01 Original 4.8 Inch 720x1280 LCD Display with 40pin MIPI interface LCD Screen

Product size
4.8-inch
Type
LCM , CG-Silicon
Pixel Format
720(RGB)×1280 (WXGA) 307PPI
Configuration
RGB Vertical Stripe
Active Area
59.4 × 105.6 (H×V)
Outline Dim.
63.2 × 115.5 (H×V×D)
Bezel Area
60.4 × 106.6 (H×V)
Treatment
Clear
Luminance
500 cd/m² (Typ.)
Contrast Ratio
800 : 1 (Typ.) (TM)
View Direction
Symmetry
Response Time
-
Viewing Angle
80/80/80/80 (Typ.)(CR≥5)
Operating Mode
New Mode2, Normally Black, Transmissive
Support Color
16.7M 71% NTSC
Light Source
WLED , No Driver
Weight
25.0g
Designed For
Mobile Phone
Frequency
60Hz
Touch Panel
Without
Interface Type
MIPI (4 data lanes) , 30 pins Connector
Power Supply
1.8/2.85/5.6/-5.4V (Typ.)(VDDIO/VDD/VSP/VSN)
Environment
Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
