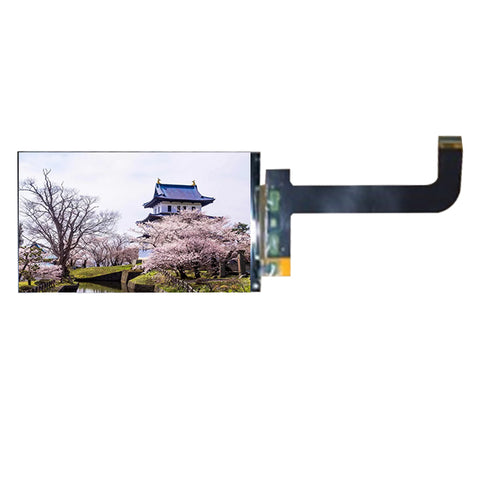

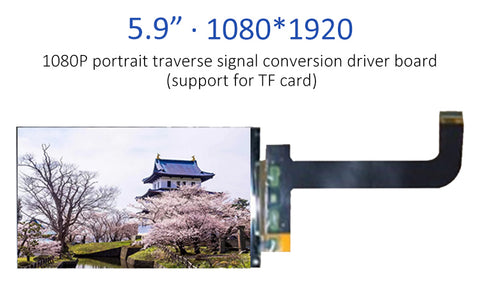

LS059T1SX03 5.9 Inch 60Hz 1080x1920 with MIPI 30 Pins Connector LCD Display

LS059T1SX03 5.9 Inch 60Hz 1080x1920 with MIPI 30 Pins Connector LCD Display

$153.00 USD
$165.00 USD $153.00 USD
Sale Sold out


LS059T1SX03 Original 5.9 Inch 60Hz 1080x1920 with MIPI 30 Pins Connector LCD Display

Product size
5.9-inch
Type
CG-Silicon, LCM
Pixel Format
1080(RGB)×1920 [FHD] 376PPI
Configuration
RGB Vertical Stripe
Active Area
72.9(H)×129.6(V) mm
Outline Dim.
76(H)×137.7(V) mm
Bezel Area
-
Treatment
Clear
Luminance
420 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
TBD
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Operating Mode
New Mode2, Normally Black, Transmissive
Support Color
16.7M 70% NTSC
Light Source
WLED [7S2P] , W/O Driver
Weight
26.0g
Designed For
Mobile Phone
Frequency
60Hz
Touch Panel
Without
Interface Type
MIPI (4 data lanes) 30 pins Connector
Power Supply
1.8/5.6/-5.4V (Typ.)(VDDIO/VSP/VSN)
Environment
Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
