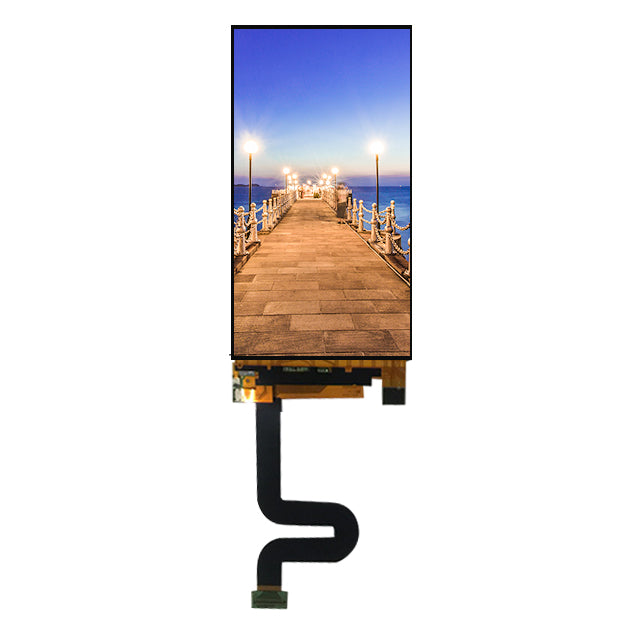

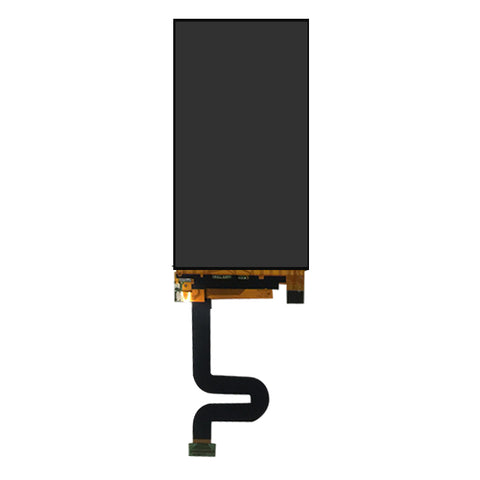

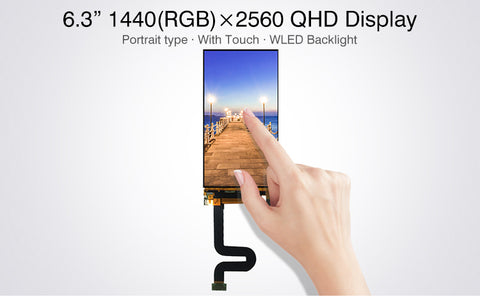

LS063R1SX01 6.3 inch 2K IPS LCD Display Panel Module 1440x2560 Display Panel For 3D Printer Projector

LS063R1SX01 6.3 inch 2K IPS LCD Display Panel Module 1440x2560 Display Panel For 3D Printer Projector

$53.00 USD
$58.00 USD $53.00 USD
Sale Sold out


LS063R1SX01 Original 6.3 inch 2K IPS LCD Display Panel Module 1440x2560 Display Panel For 3D Printer Projector

LCD SPECIFICATION
Panel Size 6.3" Type CG-Silicon, LCM
Resolution 1440(RGB)×2560 , Quad-HD  Pixel Format RGB Vertical Stripe

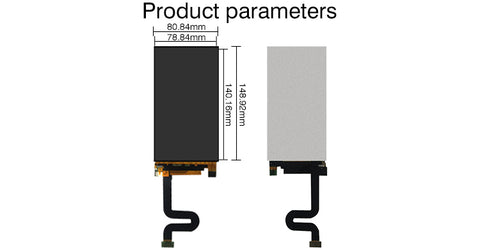

Display Area 78.84(W)×140.16(H) mm Response Time 35 (Typ.)(Tr+Td)
Outline Size 80.84(W)×148.92(H) ×1.58(D) mm Bezel Opening -
Brightness 400 cd/m² (Typ.) Surface -
Viewing Angle 80/80/80/80 (Min.)(CR≥10) Contrast Ratio 1300:1 (Typ.) (TM)
Best View on Symmetry Display Mode New Mode2, Normally Black, Transmissive
Display Colors 16.7M   Lamp Type 8S2P WLED , Without Driver
Frequency 60Hz  Touch Screen PCAP
Panel Weight 30.5g Application Mobile phone
Signal Interface MIPI (2 ch, 4 data lanes) , 60 pins , Connector
Input Voltage 1.8/5.9/-5.9V (Typ.)(IOVCC/VSP/VSN)
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
