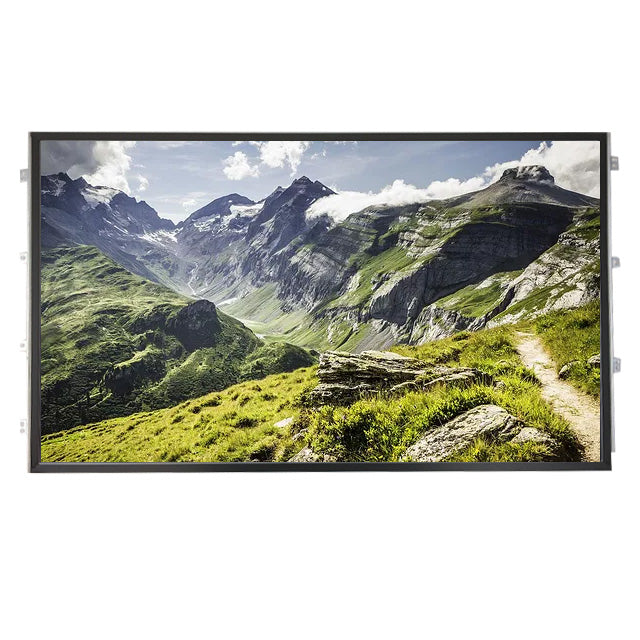

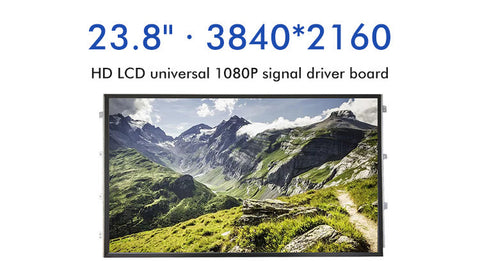

MV238QUM-N20 23.8 inch LCD Dcreen Display 4k UHD IPS LCD Module For industrial

MV238QUM-N20 23.8 inch LCD Dcreen Display 4k UHD IPS LCD Module For industrial

$131.03 USD
$148.90 USD $131.03 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


MV238QUM-N20 Original 23.8 inch LCD Dcreen Display 4k UHD IPS LCD Module For industrial

Product size
23.8-inch
Type
a-Si TFT-LCD, LCM
Pixel Format
3840(RGB)x2160, UHD, 185PPI
Configuration
RGB Vertical Stripe
Active Area
527.04(W)x296.46(H) mm
Outline Dim.
545(W)x323.4(H) x12.5(D) mm
Bezel Area
530.2(W)x299.6(H) mm
Treatment
Antiglare (Haze 25%), Hard coating (3H)
Luminance
300 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
14 (Typ.)(G to G)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
ADS, Normally Black, Transmissive
Support Color
1.07B 99% sRGB
Light Source
14S4P WLED , 30K hours , Without Driver
Panel Weight
2.30Kgs (Typ.)
Designed For
Desktop Monitor
Frequency
60Hz
Touch Panel
Without
Interface Type
eDP (4 Lanes) , 30 pins Connector
Power Supply
10.0V (Typ.)
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
