N070ICG-LD1 7 Inch LCD Panel Display With H-DMI To LVDS Controller Board

N070ICG-LD1 7 Inch LCD Panel Display With H-DMI To LVDS Controller Board

$65.25 USD
$74.15 USD $65.25 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

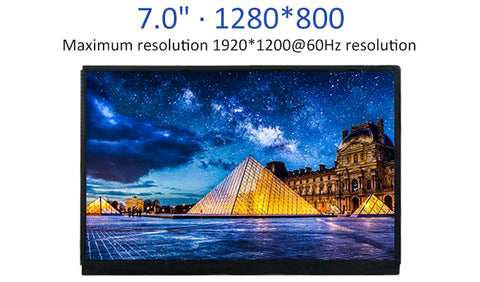

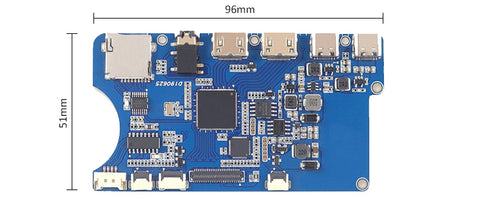

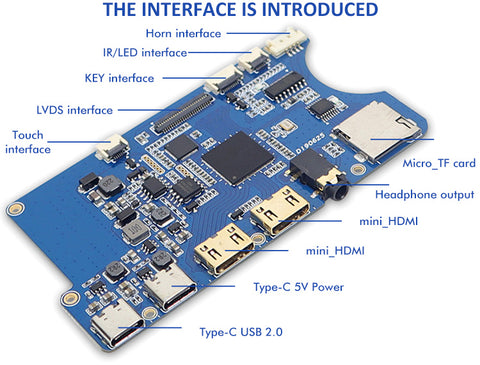

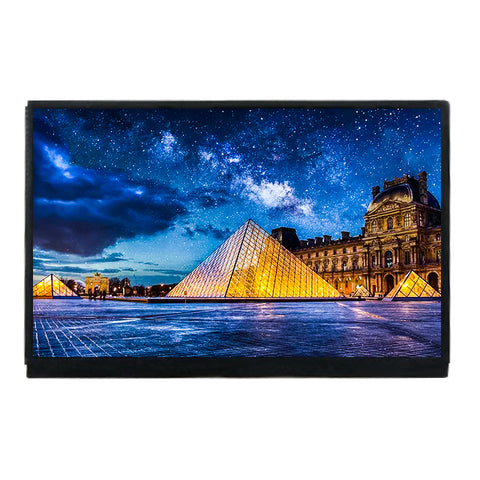

N070ICG-LD1 Original 7 Inch LCD Panel Display With H-DMI To LVDS Controller Board

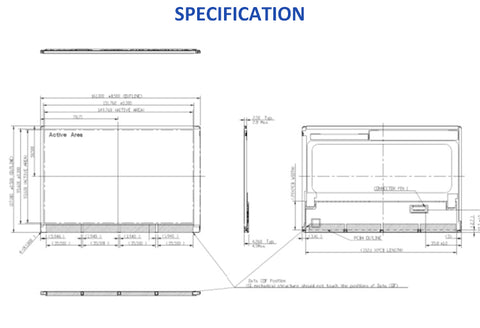

LCD SPECIFICATION

Panel Size

7.0 inch



Panel Type

a-Si TFT-LCD, LCM

Resolution

1280(RGB)×800 , WXGA

Pixel Format

RGB Vertical Stripe

Display Area

149.76(W)×93.6(H) mm

Bezel Opening

151.76(W)×95.6(H) mm

Outline Size

161(W)×107(H) ×4.5(D) mm

Surface

Glare (Haze 0%), Hard coating (3H)

Brightness

400 cd/m² (Typ.)

Contrast Ratio

800:1 (Typ.) (TM)

Best View on

Symmetry

Response Time

14/11 (Typ.)(Tr/Td)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Display Mode

IPS, Normally Black, Transmissive

Display Colors

16.7M   50% NTSC

Lamp Type

9S2P WLED , 12K hours , With LED Driver

Panel Weight

85.0/95.0g (Typ./Max.)

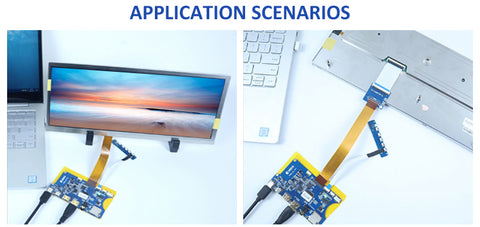

Application

Pad & Tablet / MID UMPC

Frequency

60Hz

Touch Screen

Without

Signal Interface

LVDS (1 ch, 8-bit) , 39 pins Connector

Input Voltage

3.3V (Typ.)

Environment

Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
