NJ070NA-23A Innolux 7 Inch TFT LCD Display 1024x600 LVDS Interface LCD Panel With Drive Board Touch LCD

NJ070NA-23A Innolux 7 Inch TFT LCD Display 1024x600 LVDS Interface LCD Panel With Drive Board Touch LCD

$53.80 USD
$53.80 USD
Sale Sold out
样式

Overview
NJ070NA-23A is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. NJ070NA-23A supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 154.214(W)×85.92(H) mm, outline size of 164.9(W)×100(H)×5.1(D) mm, viewing area size of 157.21(W)×89.49(H) mm, with surface treament of Hard coating, net weight of 1350g (Typ.). As a TN, Normally White, Transmissive LCM product, NJ070NA-23A can provides 500 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms.

Feature
-U/D,L/R Reverse
-6/8 bit
-Color Temperature:6638K
-WLED Backlight

Screen Size:7 inch
Resolution:1024x600
Brand: Innolux
7 Inch 1024x600 TFT LCD Display With Touch Drive Board

What's included in the package ?

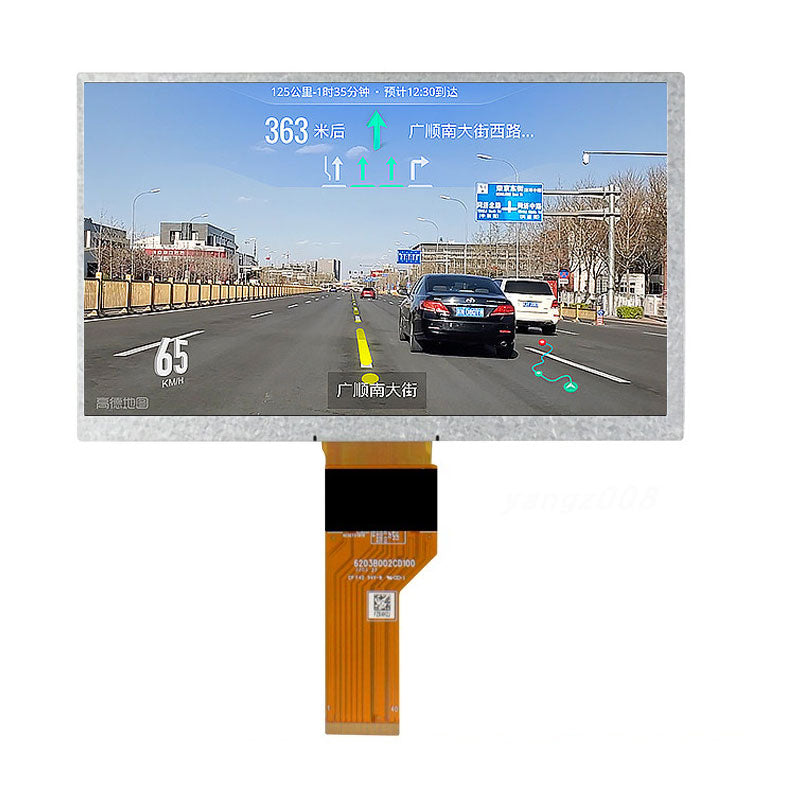

NJ070NA-23A LCD

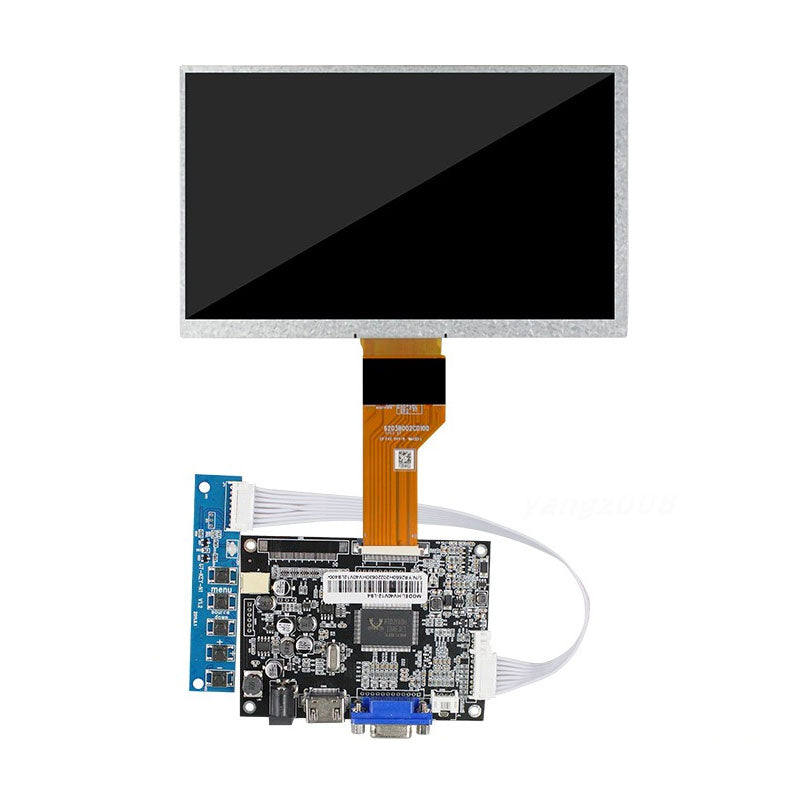

NJ070NA-23A LCD With Drive Board

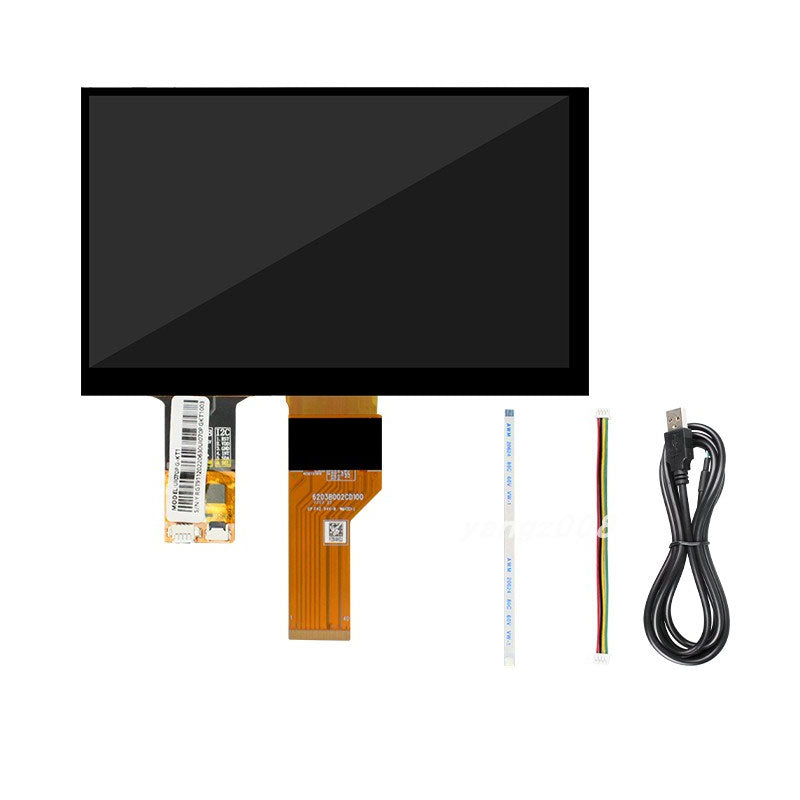

NJ070NA-23A LCD With Touch

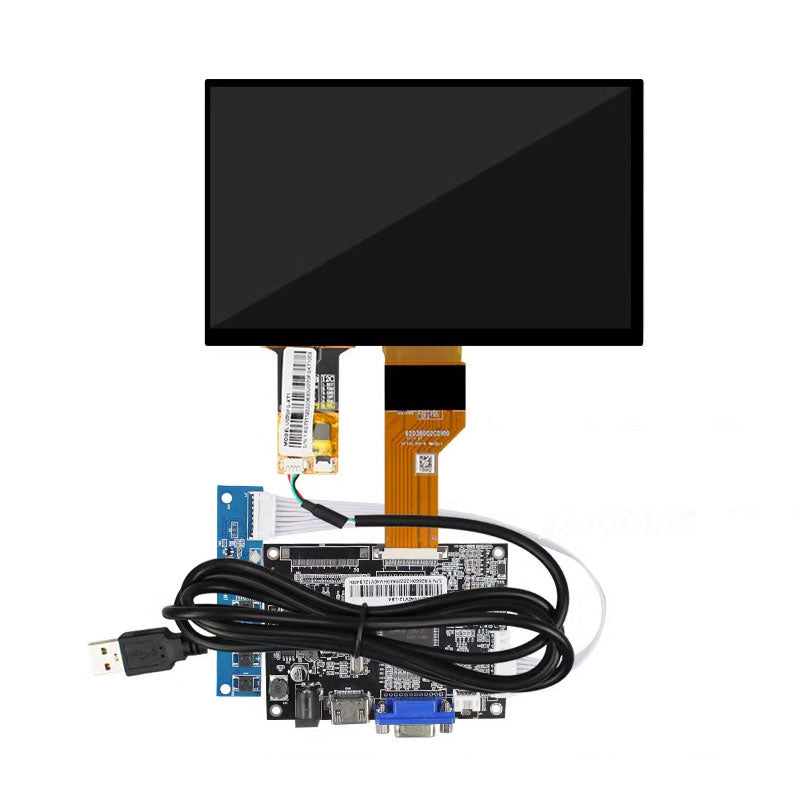

NJ070NA-23A LCD+Touch+Drive Board

Application
For Automotive Display & Industrial LCD

Datasheet & Technical Support
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.


More Product Pictures

For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
