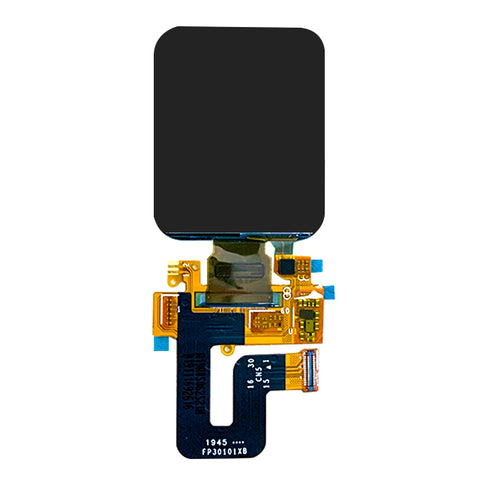

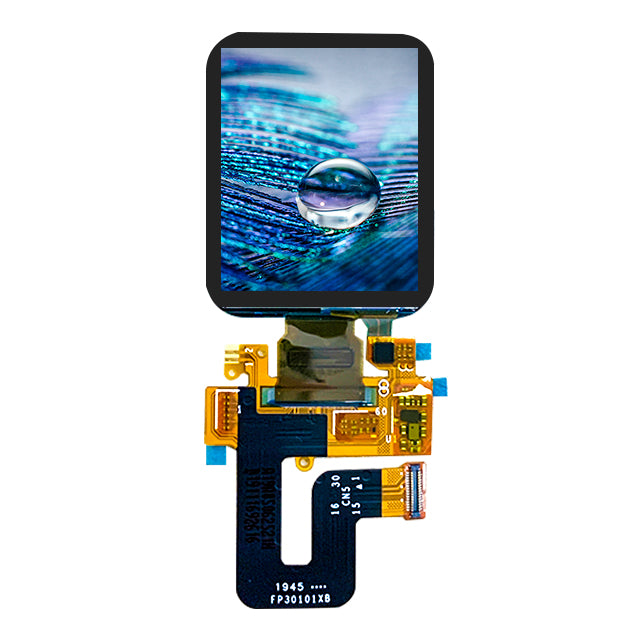

E1784AC63.A 368*448 OLCD Screen MIPI 8-bit Color 1.8 Inch OLED Display

E1784AC63.A 368*448 OLCD Screen MIPI 8-bit Color 1.8 Inch OLED Display

$35.00 USD
$38.00 USD $35.00 USD
Sale Sold out


Original E1784AC63.A 368*448 OLCD Screen MIPI 8-bit Color 1.8 Inch OLED Display

Product size
1.8-inch
Type
AM-OLED , OLED
Pixel Format
368(RGB)×448
Configuration
RGB Vertical Stripe
Active Area
28.7×34.94 mm (H×V)
Outline Dim.
30.6×37.24 mm (H×V)
Bezel Area
-
Treatment
-
Luminance
350 cd/m² (Typ.)
Contrast Ratio
100000:1 (Typ.) (Transmissive)
View Direction
Symmetry
Response Time
2 (Typ.)(Tr+Tf) (ms)
Viewing Angle
80/80/80/80 (Min.)(CR≥1000)
Operating Mode
TN, Normally White, Transmissive
Support Color

Light Source
Self
Weight
2.10±0.21g
Designed For
Handheld & PDA Round Display
Touchscreen
PCAP
TP Controller
With touch controller
Interface Type
MIPI(1 data line)+ 34 pins Connector
Power Supply
1.8/3.7V (Typ.)(VDDIO/Vbat)
Environment
Storage Temp.: -40 ~ 80 °C Operating Temp.: -20 ~ 70 °C


For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
