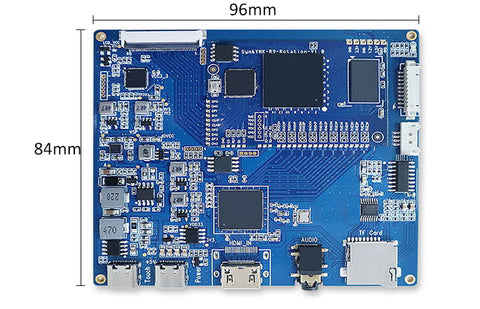

E555HBM2 5.5 Inch AMOLED Screen Display 720*1280 OLED Display Panel H-DMI to MIPI Driver Board

E555HBM2 5.5 Inch AMOLED Screen Display 720*1280 OLED Display Panel H-DMI to MIPI Driver Board

$94.25 USD
$107.10 USD $94.25 USD
销售额 售罄
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.

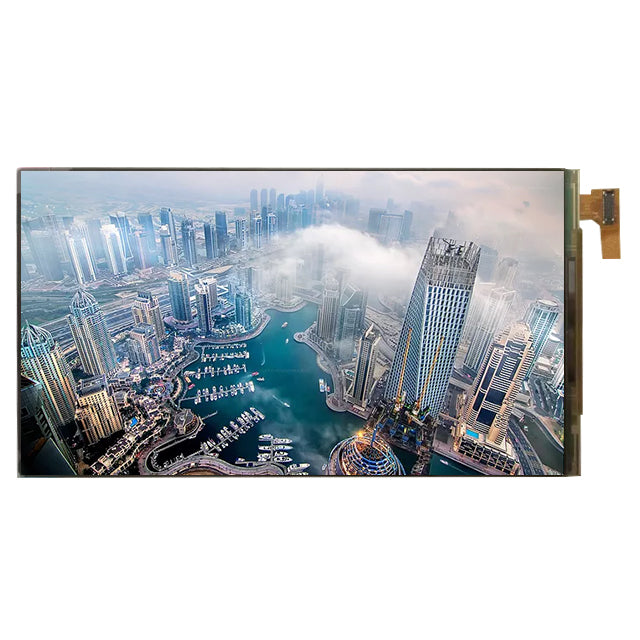

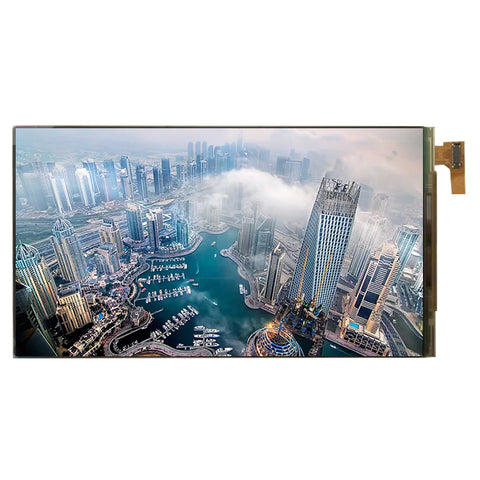

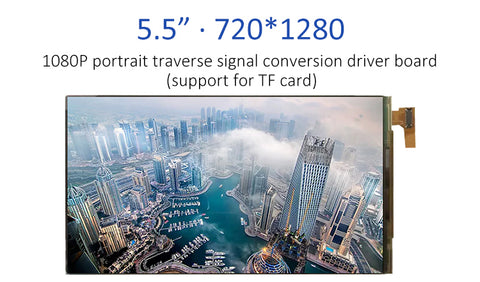

Original E555HBM2 5.5 Inch AMOLED Screen Display 720*1280 OLED Display Panel H-DMI to MIPI Driver Board

LCD SPECIFICATION

Diagonal Size

5.5 inch

Type

AM-OLED , OLED

Pixel Format

720(RGB)×1280   [WXGA]

Configuration

RGB Vertical Stripe

Display Area

69.12(W)×122.88(H) mm

Outline Dim.

-

Outline Size

72.8(W)×131.2(H) mm

Surface

-

Luminance

300 cd/m² (Typ.)

Contrast Ratio

3000:1 (Min.) (TM)

View Direction

Symmetry

Display Mode

-

Viewing Angle

80/80/80/80 (Typ.)(CR≥200)

Response Time

2 (Max.)(Tr+Td)

Support Color

16.7M   105% NTSC

Lamp Type

self

Frequency

-

Designed For

Mobile phone

Panel Weight

26.0±2.6g

Touch Panel

Without

Driver IC

COG Built-in SH1386

Interface Type

MIPI (4 data lanes) , 30 pins Connector

Power Supply

3.3/4.6/6.1/-3.5V (Typ.)(VCI/VELVDD/VSP/VELVSS)

Environment

Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out ?
Normally we will ship it out within 2- 3 days after order was processed, only when the products in high demand or out of stock will take more time.
