COM104T9M12ESS Ortustech 10.4 Inch TFT LCD Display 800×600 LVDS High Brightness Wide Temperature LCD Panel

COM104T9M12ESS Ortustech 10.4 Inch TFT LCD Display 800×600 LVDS High Brightness Wide Temperature LCD Panel

$298.85 USD
$332.06 USD $298.85 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

COM104T9M12ESS Overview

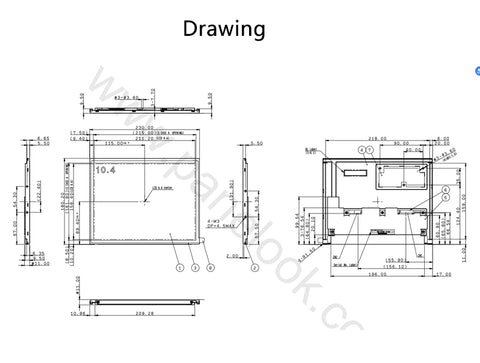

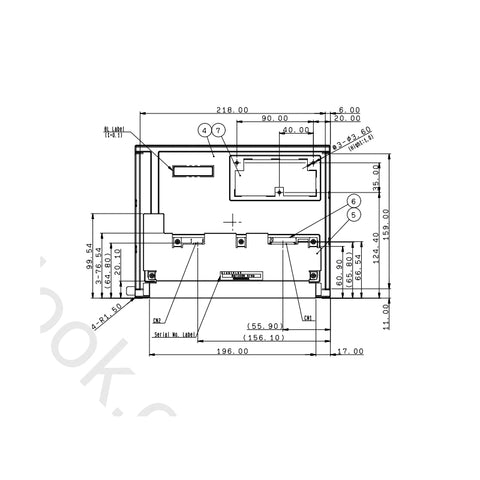

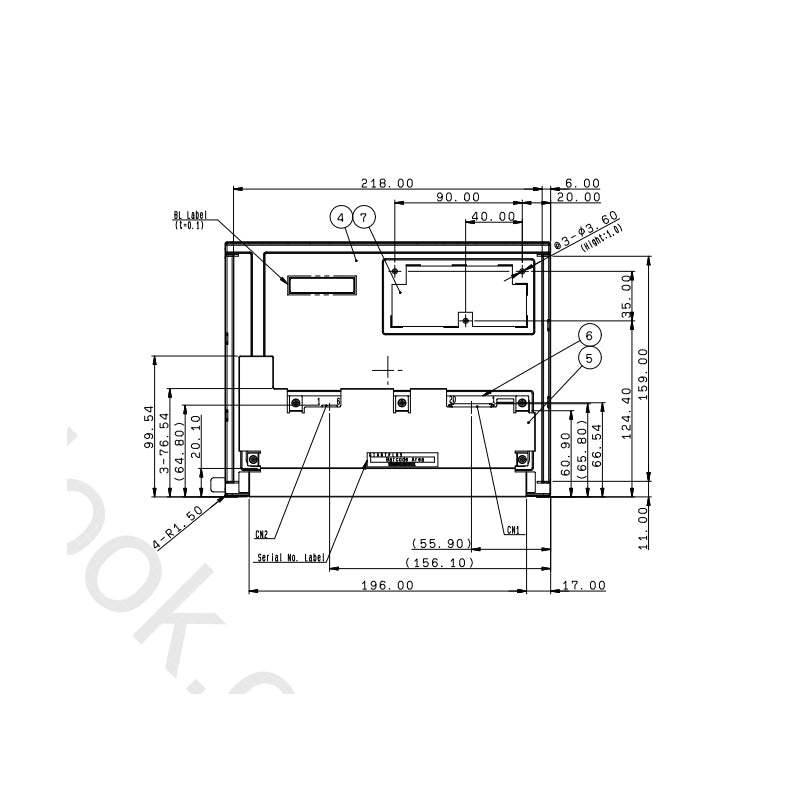

COM104T9M12ESS supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 230(W)×180.2(H)×11.5(D) mm, viewing area size of 215(W)×161.8(H) mm, net weight of TBD. As a FFS, Normally Black, Transmissive LCM product, COM104T9M12ESS can provides 650 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 47% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type, With LED Driver. COM104T9M12ESS utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

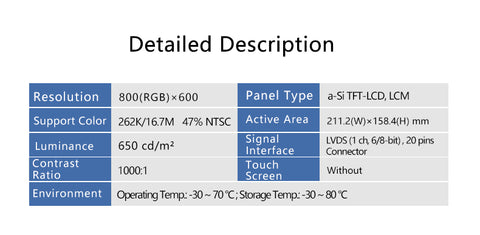

COM104T9M12ESS  Specification

Part No. COM104T9M12ESS Size 10.4 inch
Resolution 800 × 600 Display Mode FFS, Transmissive
Panel Interface LVDS (1 ch, 6/8-bit) Touch Panel No

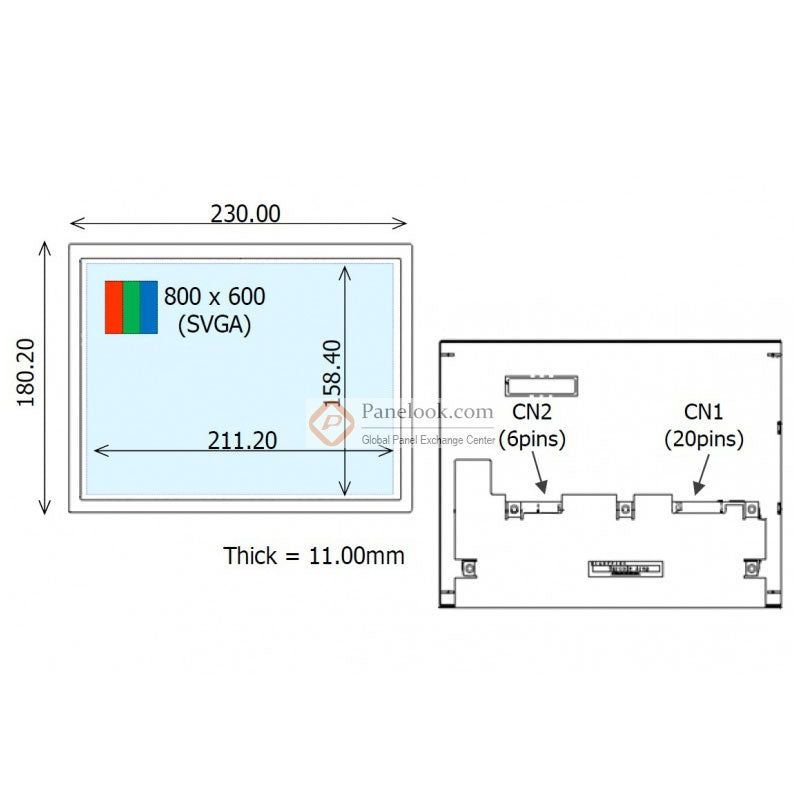

Outline Dimension 230 × 180.2 mm Active Area 211.2 × 158.4 mm
Viewing Angle 85/85/85/85 (Min.) Brightness 650 cd/m² (Typ.)
Operation Temp. -30 ~ 70°C Storage Temp. -30 ~ 80°C

COM104T9M12ESS Application
For Handheld & PDA,Industrial.
