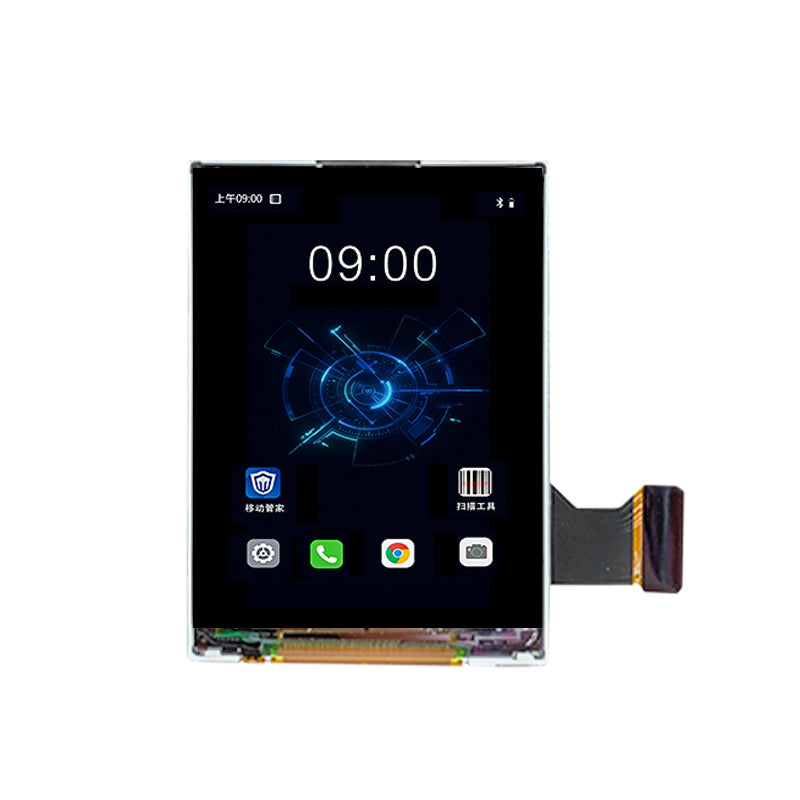

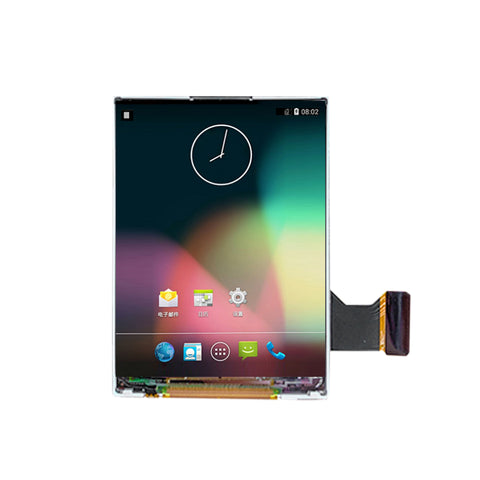

Ortustech COM22H2P69ULC 2.2 inch 240x320 LCD Screen Display For Handheld Device

Ortustech COM22H2P69ULC 2.2 inch 240x320 LCD Screen Display For Handheld Device

$85.26 USD
$53.00 USD $85.26 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

TOPPAN ORTUSTECH blanview TRANSFLECTIVE DISPLAYS-1
Ortustech advantage_02

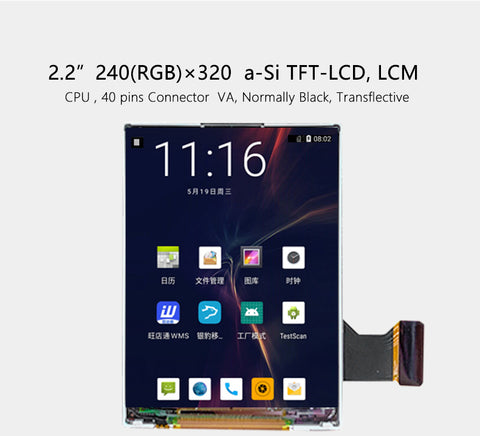

COM22H2P69ULC Ortustech 2.2 Inch Transflective Display 240x320 CPU TFT LCD Display Overview

COM22H2P69ULC is a 2.2 inch diagonal a-Si TFT-LCD display screen product from Ortustech, with a built-in WLED backlight, without backlight driver, without touch screen.COM22H2P69ULC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 33.84(W)×45.12(H) mm, outline size of 38.64(W)×53.72(H)×3.55(D) mm, with surface treament of Hard coating (3H), net weight of 11.0g. As a VA, Normally Black, Transflective LCM product, COM22H2P69ULC can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 3.5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 60/40 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 35% (NTSC). This product adopted 3S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM22H2P69ULC utilizes CPU as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 2.8/2.8V (Typ.)(IOVCC/VCI).

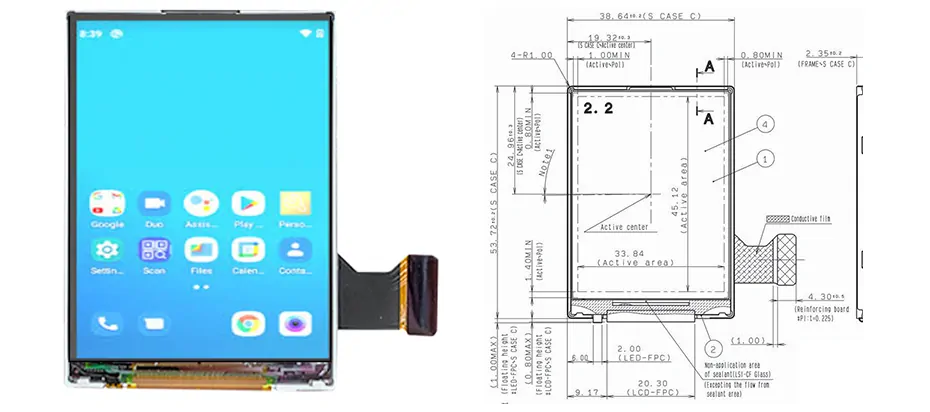

COM22H2P69ULC Ortustech 2.2 Inch Transflective Display 240x320 CPU TFT LCD Display

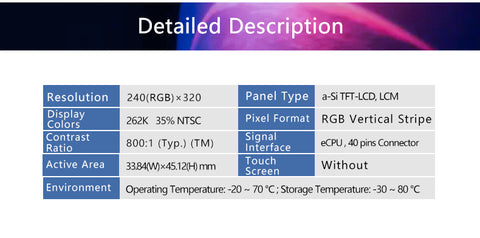

COM22H2P69ULC  Specification

Part No. COM22H2P69ULC Size 2.2 inch
Resolution 240 × 320 Display Mode Transflective, Blanview
Panel Interface CPU Touch Panel No
Outline Dimension 38.64 × 53.72 × 2.35 mm Active Area 33.84 × 45.12 mm
Viewing Angle 80/80/80/80 Brightness 400 cd/m²
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C

Ortustech Transflective Display AdvantageOrtustech advantage_03

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application Cycling Computer Bike Display Solution

Ortustech Transflective Display Production and ManufacturingCycling Computer Bike Display Youritech Production and ManufacturingOrtustech Transflective Display

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
