Ortustech COM32H3P68ULC 3.2 Inch TFT LCD Display 480x800 Transflective MIPI LCD Panel
Ortustech COM32H3P68ULC 3.2 Inch TFT LCD Display 480x800 Transflective MIPI LCD Panel
Overview

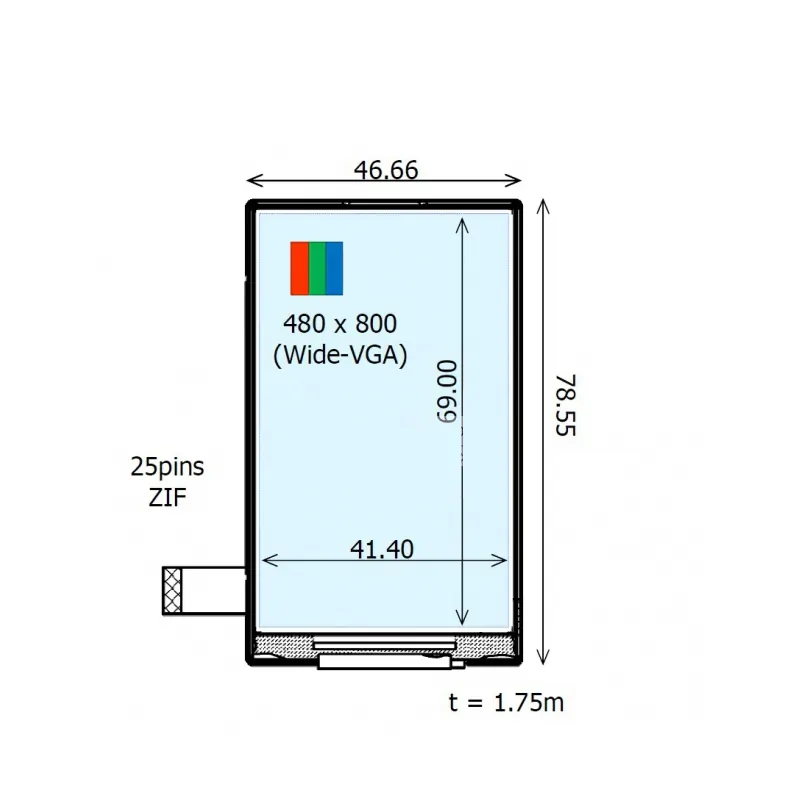

COM32H3P68ULC supports display 480(RGB)×800 (WVGA) with aspect ratio of 3:5 (W:H), whose pixels are arranged in RGB Vertical Stripe,it's pixel density is 294 PPI. As for mechanical detail, it features active area of 41.4(W)×69(H) mm, outline size of 46.66(W)×78.55(H)×2(D) mm, with surface treament of Hard coating (3H), net weight of 14.7g (Typ.). As a VA, Normally Black, Transflective LCM product, COM32H3P68ULC can provides 380 cd/m² display brightness 700:1 transimissive contrast ratio, 2.4:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40/60 (Max.)(Tr/Tf) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 35% (NTSC).
Screen Size:3.2 inch
Resolution:480x800
Brand:Ortustech
COM32H3P68ULC 3.2 Inch 480x800 Transflective MIPI LCD Panel.
What's included in the package ?
-COM32H3P68ULC.
Application
For Wearable & Industrial LCD
Datasheet & Technical Support
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
More Product Pictures
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
