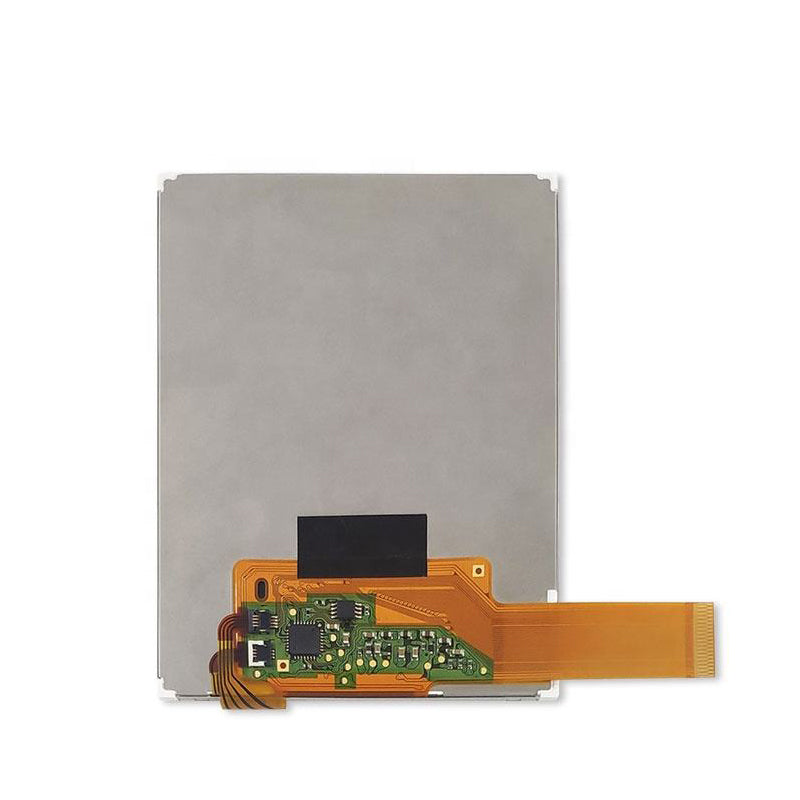

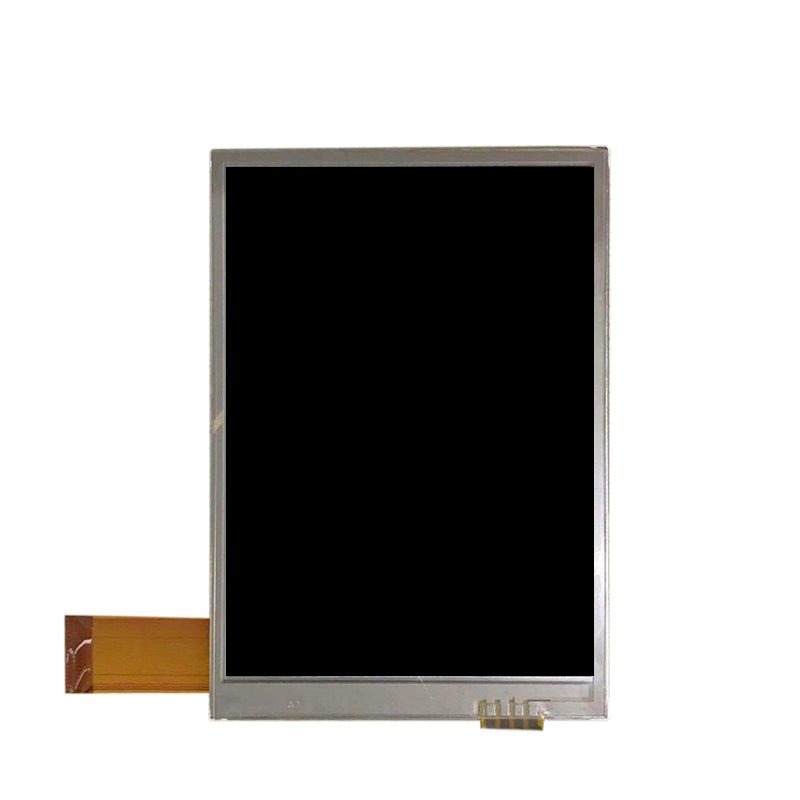

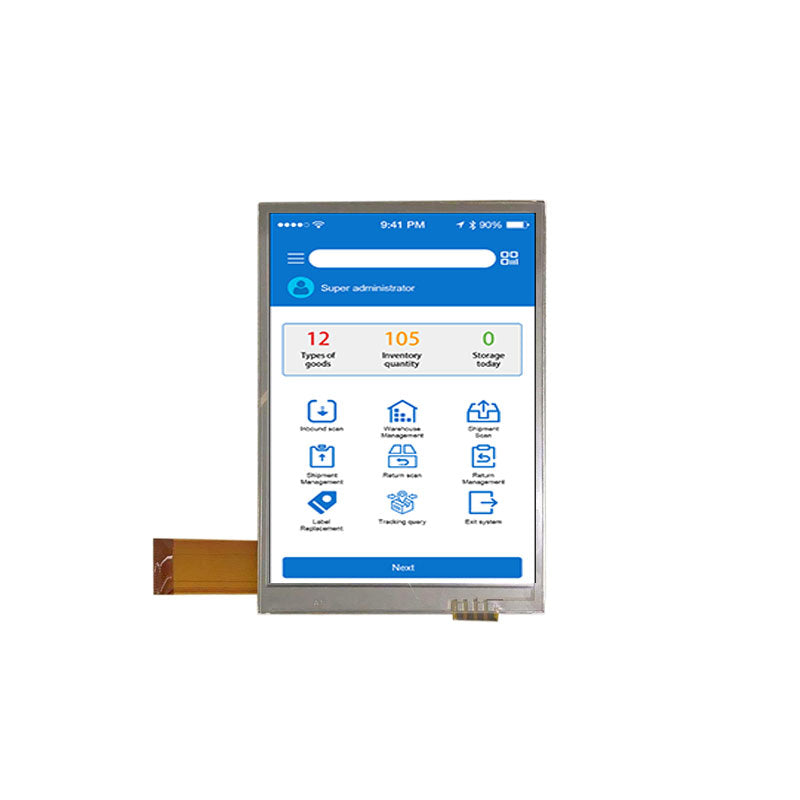

Ortustech COM35H3M10XTC 3.5 Inch LCD Display 240x320 Transflective LCD Panel With 4-wire Resistive Touch

Ortustech COM35H3M10XTC 3.5 Inch LCD Display 240x320 Transflective LCD Panel With 4-wire Resistive Touch

$71.76 USD
$71.76 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

COM35H3M10XTC Overview

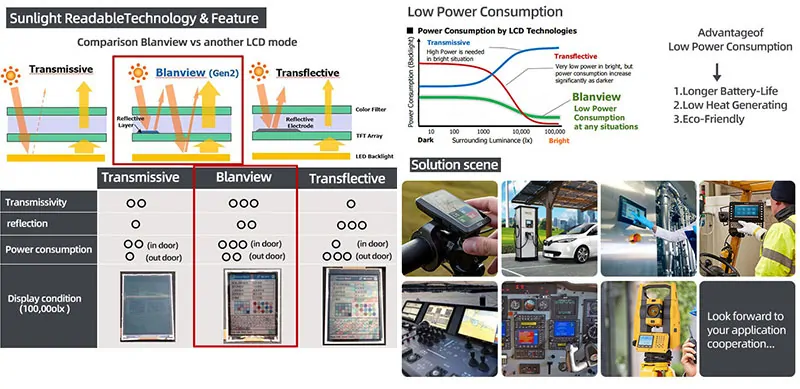

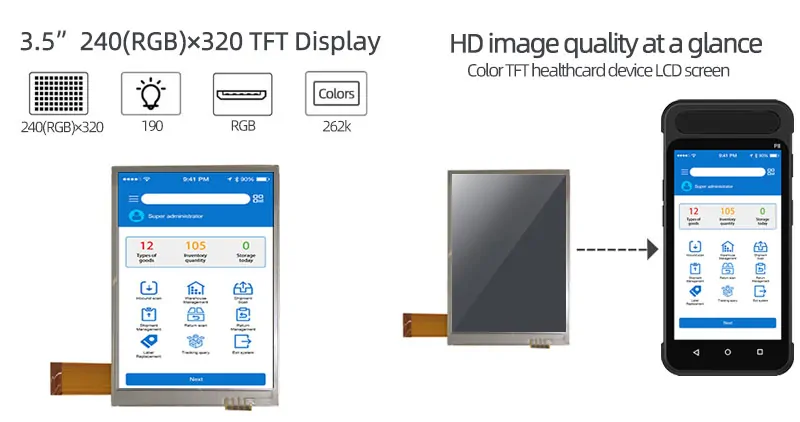

COM35H3M10XTC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 53.64(W)×71.52(H) mm, outline size of 63.5(W)×85(H)×5.53(D) mm, viewing area size of 57.44(W)×75.32(H) mm, with surface treament of Hard coating (3H), net weight of 43.5g. As a TN, Normally White, Transflective LCM product, COM35H3M10XTC can provides 190 cd/m² display brightness 400:1 transimissive contrast ratio, 2:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM35H3M10XTC utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 39 pins FPC with power supply voltage of 3.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

COM35H3M10XTC Application
For Industrial.

COM35H3M10XTC  Specification

Part No. COM35H3M10XTC Size 3.5 inch
Resolution 240 × 320 Display Mode TN, Transflective
Panel Interface Parallel RGB (1 ch, 6-bit) Touch Panel Yes

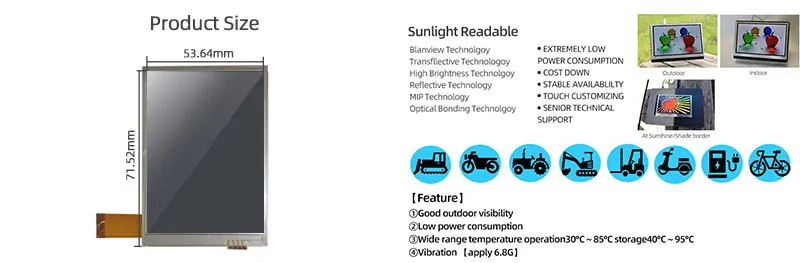

Outline Dimension 63.5(H) × 85(V) mm Active Area 53.64(H) × 71.52(V) mm
Viewing Angle 80/80/80/80 (Min.) Brightness 190 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C
