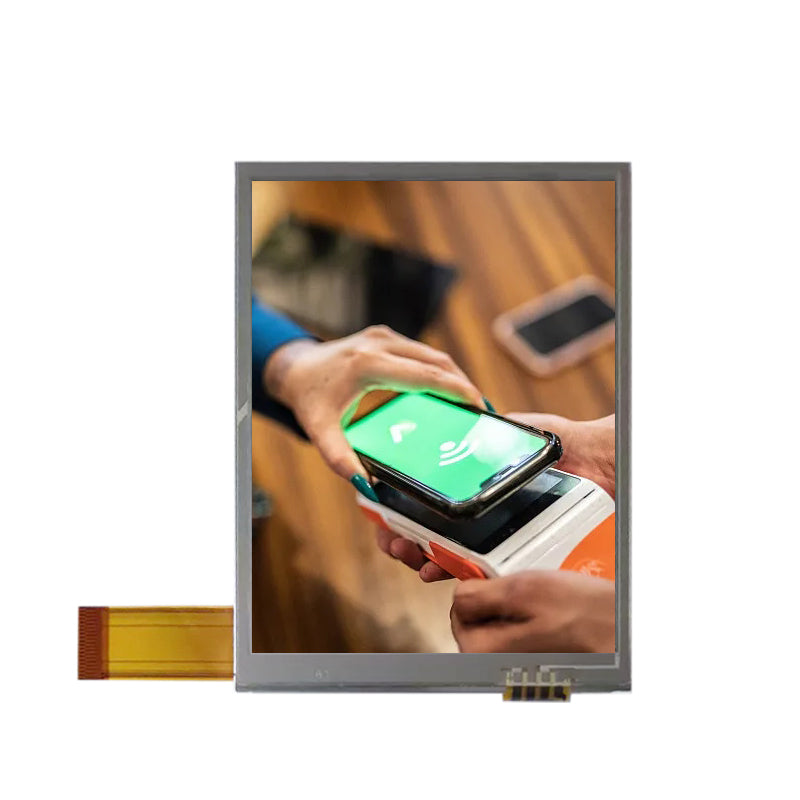

Ortustech COM35H3M74UTC 3.5 Inch Transflective LCD Display 480x640 Parallel RGB LCD Panel With 4-wire Resistive Touch

Overview
COM35H3M74UTC is a 3.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen 4-wire Resistive Touch.COM35H3M74UTC supports display 480(RGB)×640 (VGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 53.28(W)×71.04(H) mm, outline size of 63.5(W)×85(H)×5.83(D) mm, viewing area size of 57.44(W)×75.32(H) mm, with surface treament of Hard coating (3H), net weight of 42.3g. As a VA, Normally Black, Transflective LCM product, COM35H3M74UTC can provides 200 cd/m² display brightness 600:1 transimissive contrast ratio, 5.5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors.

Screen Size:3.5 inch
Resolution:480x640
Brand:Ortustech
COM35H3M74UTC 3.5 Inch 480x640 Transflective LCD Display.

What's included in the package ?
-COM35H3M74UTC

Application
For Wearable & Industrial LCD

Datasheet & Technical Support
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

More Product Pictures
