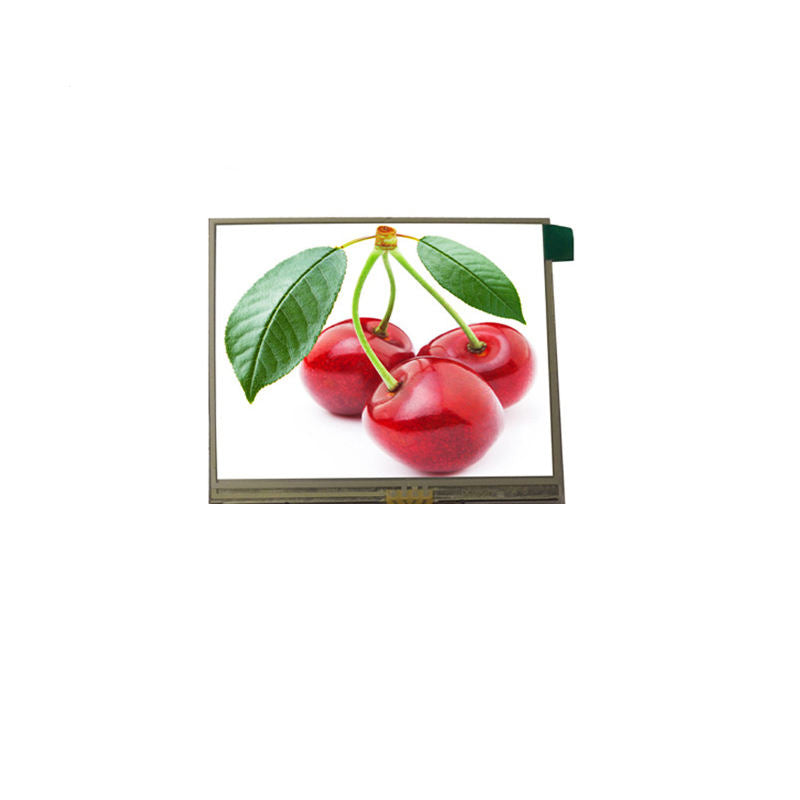

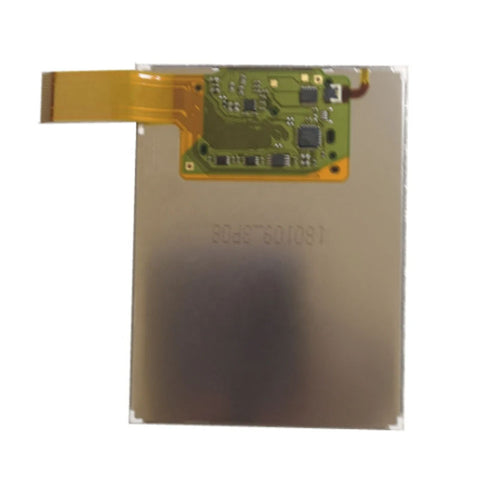

Ortustech COM35H3P29ULC 3.5 Inch 480x640 Transflective LCD Screen Display

Ortustech COM35H3P29ULC 3.5 Inch 480x640 Transflective LCD Screen Display

$193.16 USD
$200.00 USD $193.16 USD
Sale Sold out


Ortustech COM35H3P29ULC 3.5 Inch 480x640 Transflective LCD Screen Display

Panel Brand Ortustech Panel Model COM35H3P29ULC
Panel Size 3.5 inch Panel Type a-Si TFT-LCD, LCM
Resolution 480(RGB)×640   [VGA] Pixel Format RGB Vertical Stripe
Display Area 53.28 × 71.04 (H×V) mm Luminance 250 cd/m² (Typ.)
Bezel Area 57.44(H)×75.32(V) mm Outline 63.5(H)×85(V) ×3.53(D) mm
Treatment Hard coating (3H) Operating Mode VA, Normally Black, Transflective
Viewing Angle 80/80/80/80 (Min.)(CR≥10) Contrast Ratio

800:1 (Typ.) (TM)     3:1 (Typ.) (RF)
Good View at Symmetry Response 40/60 (Max.)(Tr/Td)ms
Interface Type

39 pins   Parallel RGB (1 ch, 6-bit) , FPC

 Light Source WLED  [6S1P] , 50K hours , W/O Driver
Support Color 262K Touchscreen

Without
Weight 30.8g (Typ.)
Power Supply 3.0/1.8V (Typ.)(VDD/VCCIO)
Environment Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C


For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
