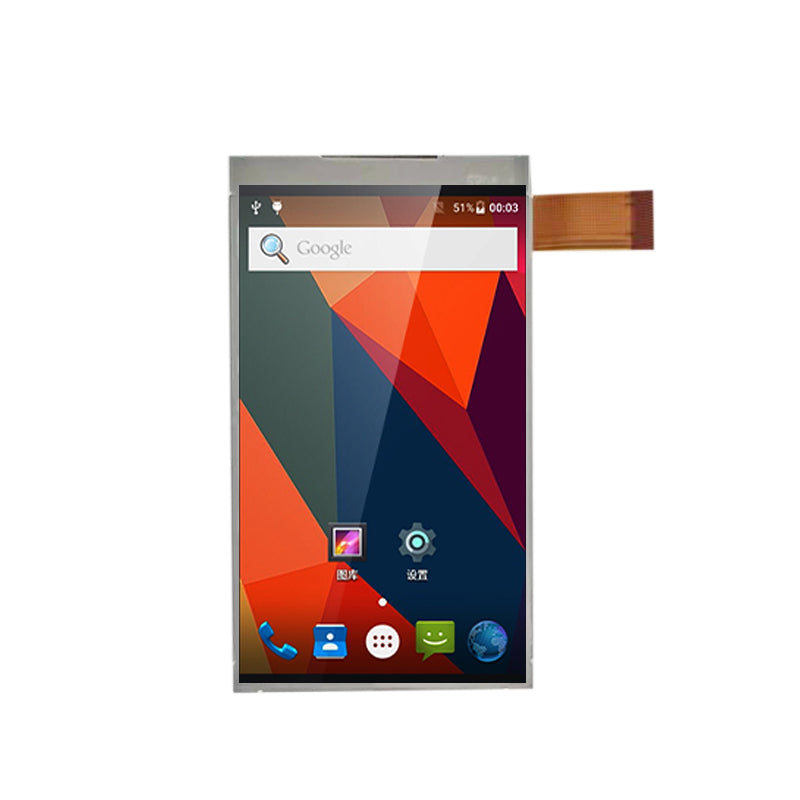

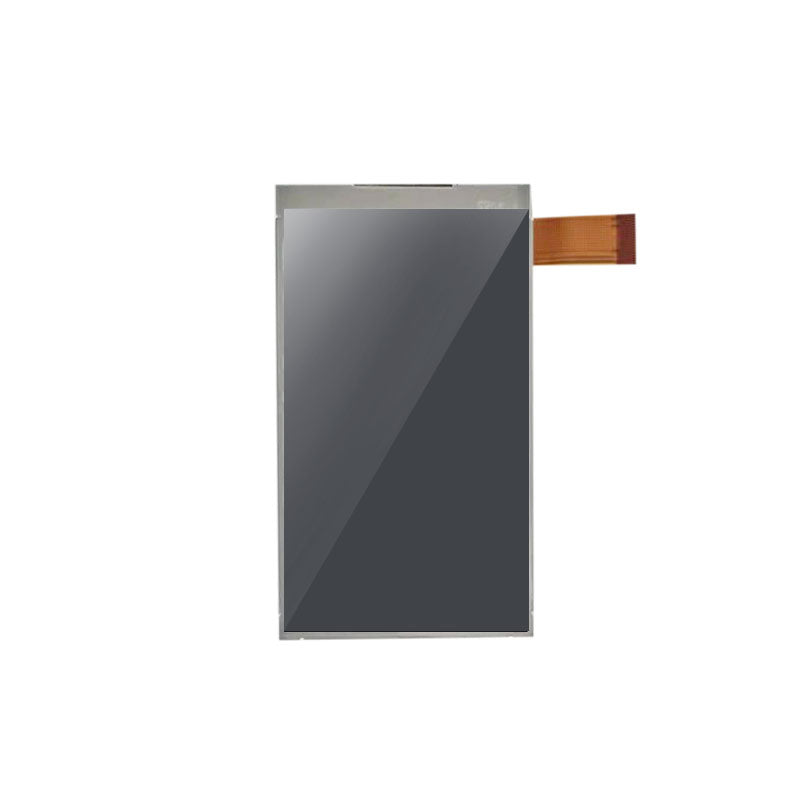

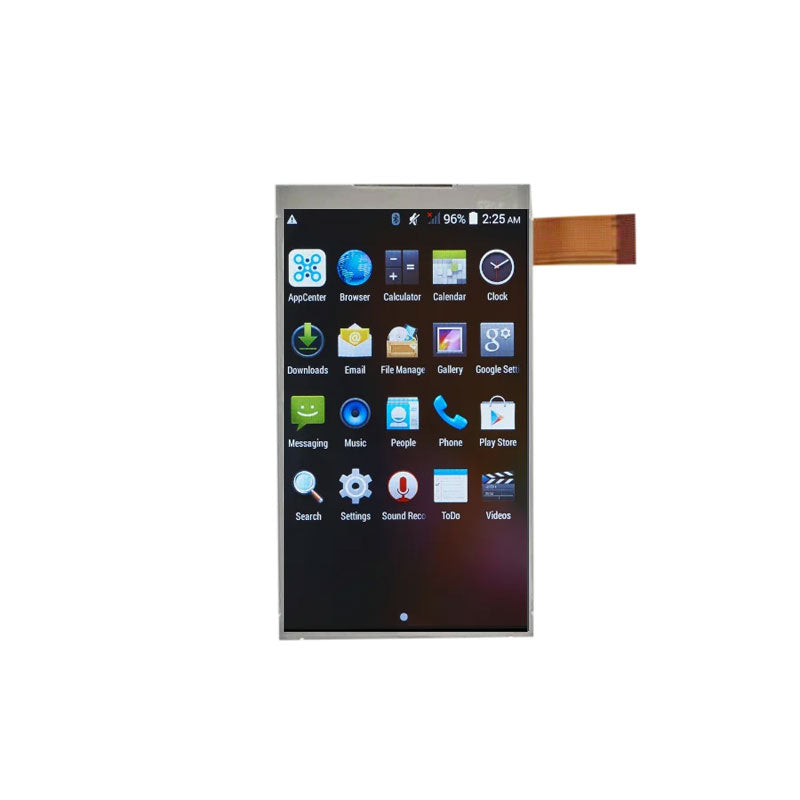

Ortustech COM43H4N90ULC 4.3 Inch 480x800 RGB Interface LCD Display For Handheld Application

Ortustech COM43H4N90ULC 4.3 Inch 480x800 RGB Interface LCD Display For Handheld Application

$57.20 USD
$65.00 USD $57.20 USD
Sale Sold out

COM43H4N90ULC Overview

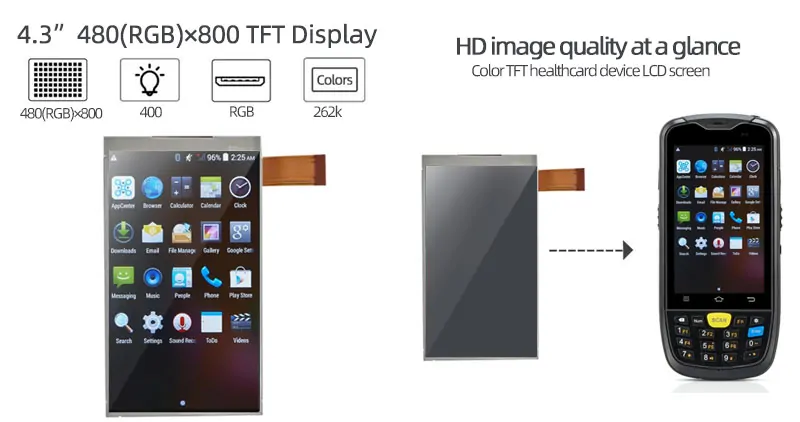

COM43H4N90ULC supports display 480(RGB)×800 (WVGA) with aspect ratio of 3:5 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 55.8(W)×93(H) mm, outline size of 63(W)×105.3(H) mm, with surface treament of Hard coating (2H), net weight of 39.6g (Typ.). As a VA, Normally Black, Transflective LCM product, COM43H4N90ULC can provides 400 cd/m² display brightness 600:1 transimissive contrast ratio, 3:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 35% (NTSC). This product adopted 7S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM43H4N90ULC utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 39 pins FPC with power supply voltage of 3.3/1.8V (Typ.)(VDD/VCCIO). It's typical vertical frame rate (Fv) is 60Hz.

Application
For Handheld & PDA,Industrial.

For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
