COM27H2P23XLC Ortustech 2.7 Inch Transflective Display Parallel RGB 240×320 TFT LCD Display

COM27H2P23XLC Ortustech 2.7 Inch Transflective Display Parallel RGB 240×320 TFT LCD Display

$50.67 USD
$62.56 USD $50.67 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

TOPPAN ORTUSTECH blanview TRANSFLECTIVE DISPLAYS-1
Ortustech advantage_02
COM27H2P23XLC 2.7 Inch Transflective Display 240×320 Parallel RGB TFT LCD Display Overview

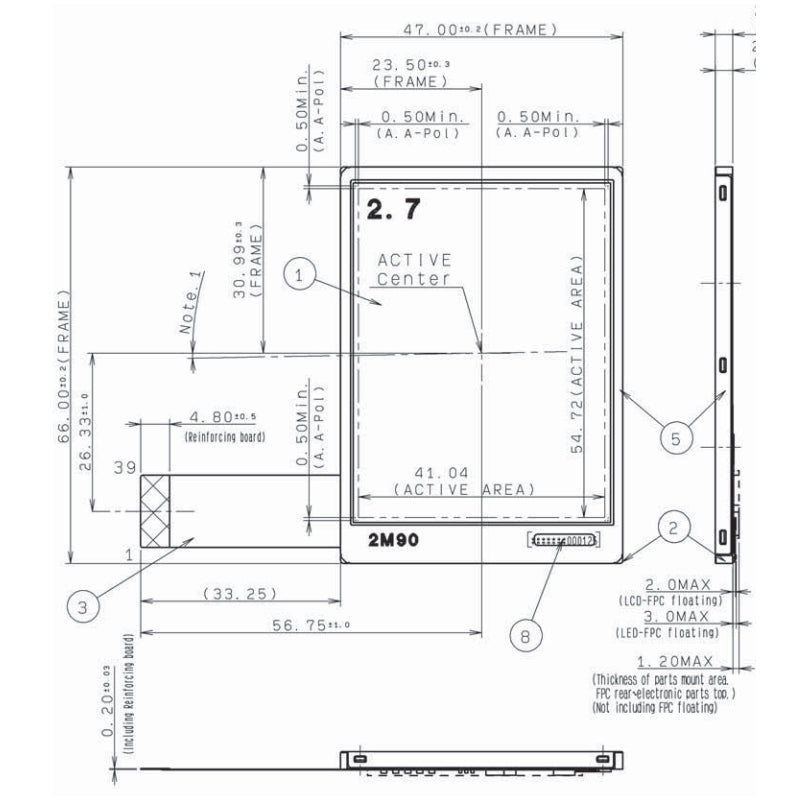

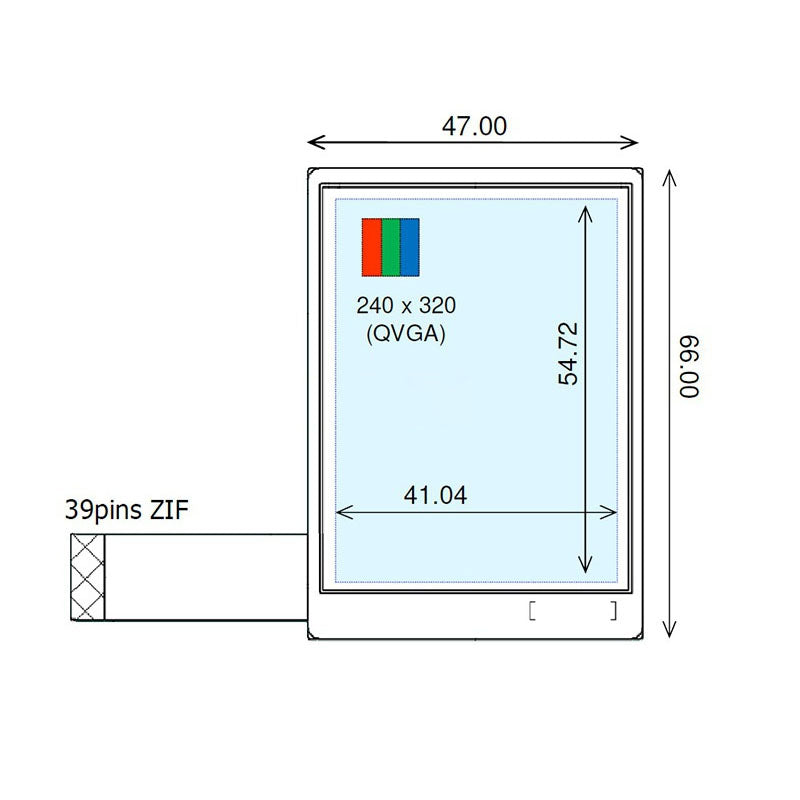

COM27H2P23XLC is a 2.7 inch diagonal a-Si TFT-LCD display screen product from Ortustech, with a built-in WLED backlight, without backlight driver, without touch screen.COM27H2P23XLC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 41.04(W)×54.72(H) mm, outline size of 47(W)×66(H)×4.34(D) mm, with surface treament of Hard coating (3H), net weight of 19.0g (Typ.). As a TN, Normally White, Transflective LCM product, COM27H2P23XLC can provides 400 cd/m² display brightness 400:1 transimissive contrast ratio, 8.5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM27H2P23XLC utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 39 pins FPC with power supply voltage of 3.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

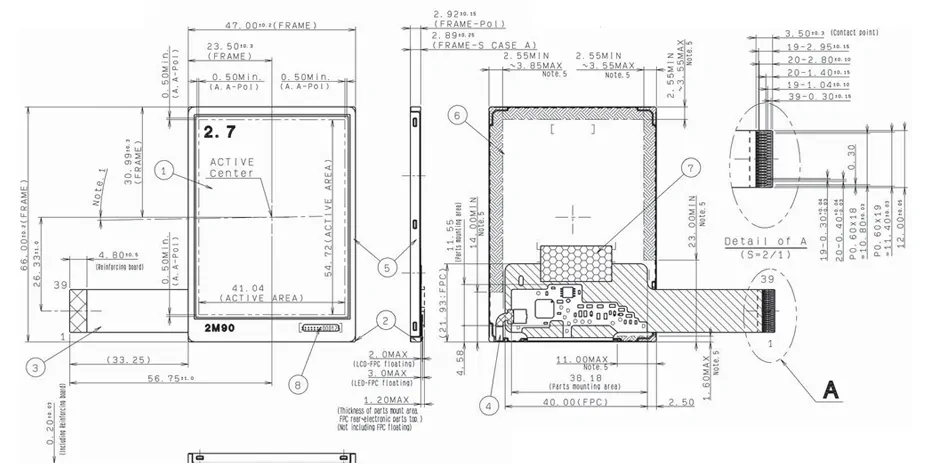

COM27H2P23XLC 2.7 Inch Transflective Display 240×320 Parallel RGB TFT LCD Display

COM27H2P23XLC  Specification

Part No. COM27H2P23XLC Size 2.7 inch
Resolution 240 × 320 Display Mode Transflective
Panel Interface Parallel RGB (1 ch, 6-bit) Touch Panel No
Outline Dimension 47 × 66 mm Active Area 41.04 × 54.72 mm
Viewing Angle 80 / 80 / 80 / 80 Brightness 400 cd/m²
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C



Ortustech Transflective Display AdvantageOrtustech advantage_03

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application Cycling Computer Bike Display Solution

Ortustech Transflective Display Production and ManufacturingCycling Computer Bike Display Youritech Production and ManufacturingOrtustech Transflective Display

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
