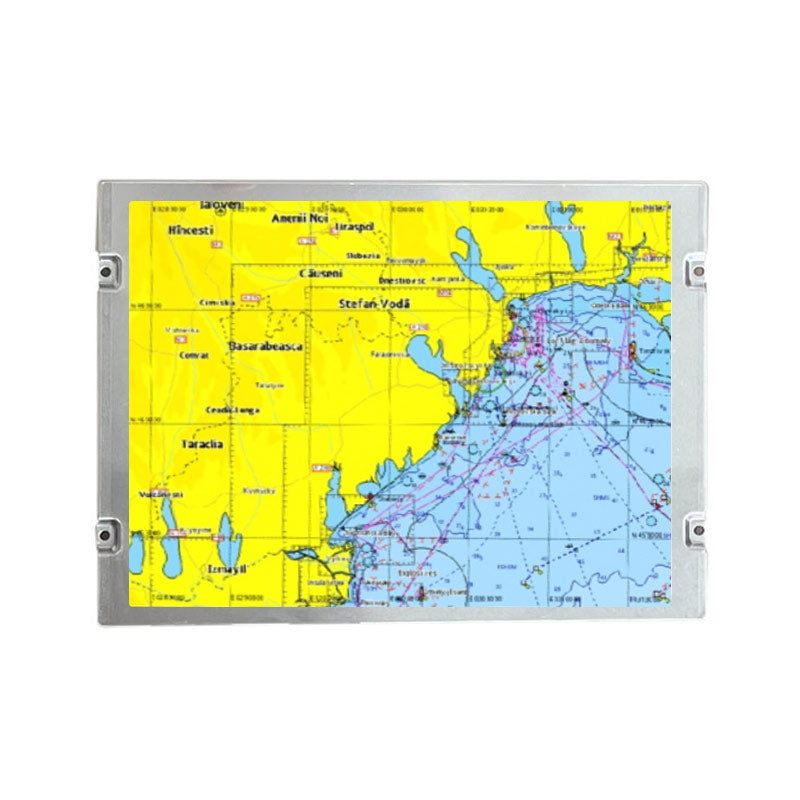

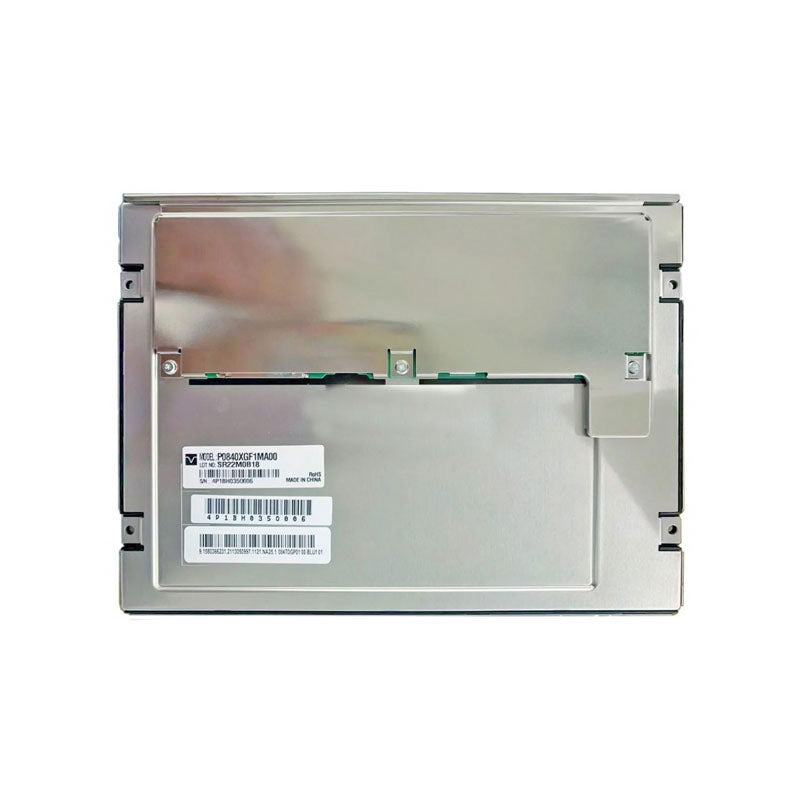

P0840XGF1MA00 8.4 Inch TFT LCD Display 1024x768 Ultra High Brightness Wide Temperature LCD Panel

P0840XGF1MA00 8.4 Inch TFT LCD Display 1024x768 Ultra High Brightness Wide Temperature LCD Panel

$158.00 USD
$158.00 USD
销售额 售罄
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.

P0840XGF1MA00 Overview

P0840XGF1MA00 is a 8.4 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, without touch screen. P0840XGF1MA00 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.496(W)×127.872(H) mm, outline size of 199.5(W)×149(H)×10.2(D) mm, viewing area size of 173.5(W)×130.87(H) mm, with surface treament of Antiglare, net weight of 303g (Typ.). As a SFT, Normally Black, Transmissive LCM product, P0840XGF1MA00 can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 70% (NTSC).

P0840XGF1MA00 Feature

-Wide Temperature
-Ultra High Brightness
-WLED Backlight
-Matte
-6/8 Bit
-Life≥100K hours
-180 °Reverse

Screen Size: 8.4 inch
Resolution: 1024x768
Brand: Tianma
P0840XGF1MA00 Original 8.4 Inch 1024x768 Ultra High Brightness Wide Temperature TFT LCD Display.

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
