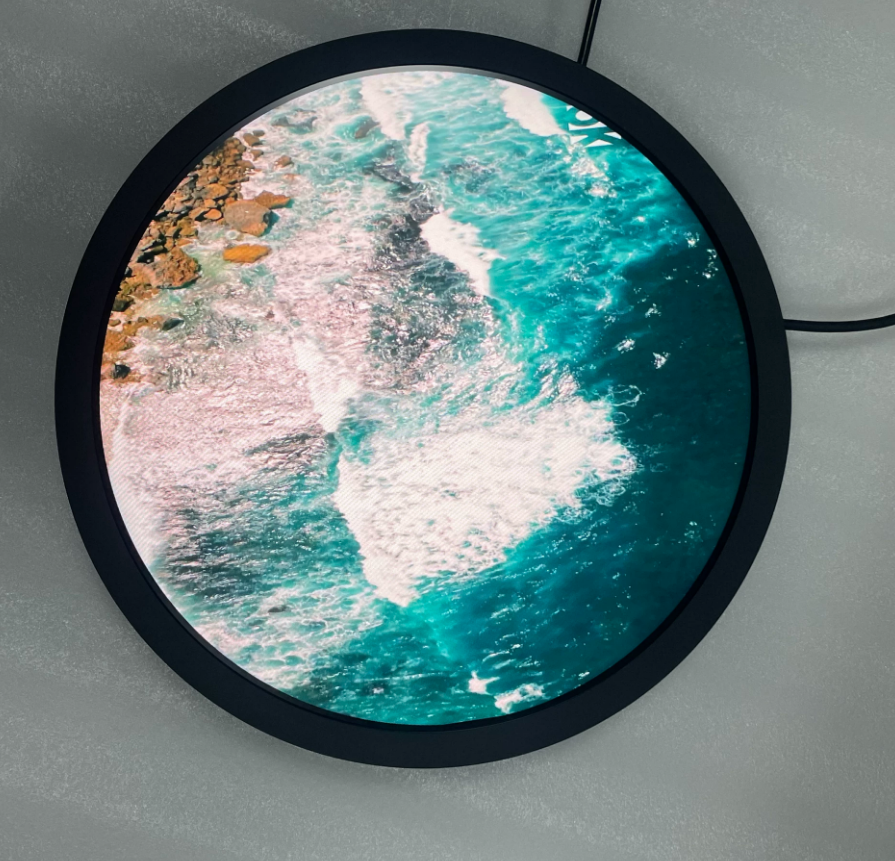

P157RAN02.0 AUO 15.7 Inch TFT LCD Display 960×960 High Brightness 700nits eDP LCD Display With Demo Board

15.7 Inch High Brightness LCD Display Overview
P157RAN02.0 supports display 960(RGB)×960 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 400.032(W)×400.032(H) mm, outline size of 452.95(W)×452.95(H)×30.2(D) mm, viewing area size of 408.2(W)×408.2(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.40Kgs (Typ.). As a AHVA, Normally Black, Transmissive LCM product, P157RAN02.0 can provides 700 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 16 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. P157RAN02.0 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
