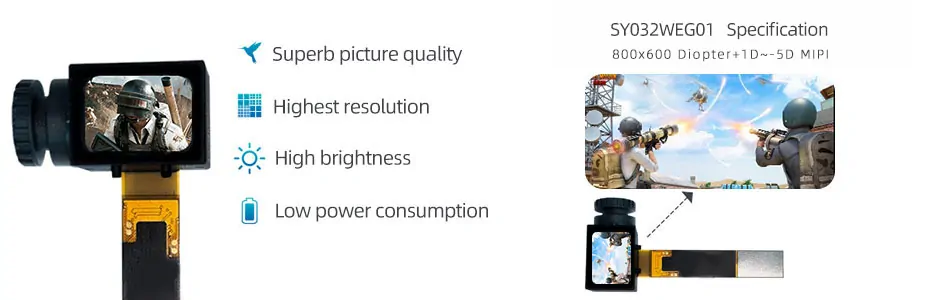

SY032WEG01 0.32 Inch Micro OLED Display 800×600 RGB MIPI OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Overview

SY032WEG01 is a 0.32-inch diagonal Micro OLED display module product, self-emissive and designed for compact high-precision optical display applications. SY032WEG01 supports a display resolution of 800×600 with an aspect ratio of 4:3 (W), delivering sharp image quality and high pixel density for near-eye display systems. It features an active area of 6.48(W) × 4.86(H) mm and an outline size of 26.55(W) × 14.8(H) × 20.5(D) mm, making it suitable for highly integrated optical modules. SY032WEG01 supports both MIPI and RGB interfaces, offering flexible integration options for different system architectures and driver board solutions. Based on self-emissive Micro OLED technology, it provides excellent contrast, fast response time, and vivid image reproduction, making it ideal for EVF (Electronic Viewfinder), AR devices, red dot sights, and wearable display applications. The module supports an operating temperature range of -20°C to 70°C and a storage temperature range of -40°C to 80°C, ensuring stable and reliable performance in industrial and outdoor environments.

SY032WEG01 0.32 Inch Micro OLED Display 800×600 RGB MIPI OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Drawing

0.32 Inch Micro OLED Display Solution For Reference

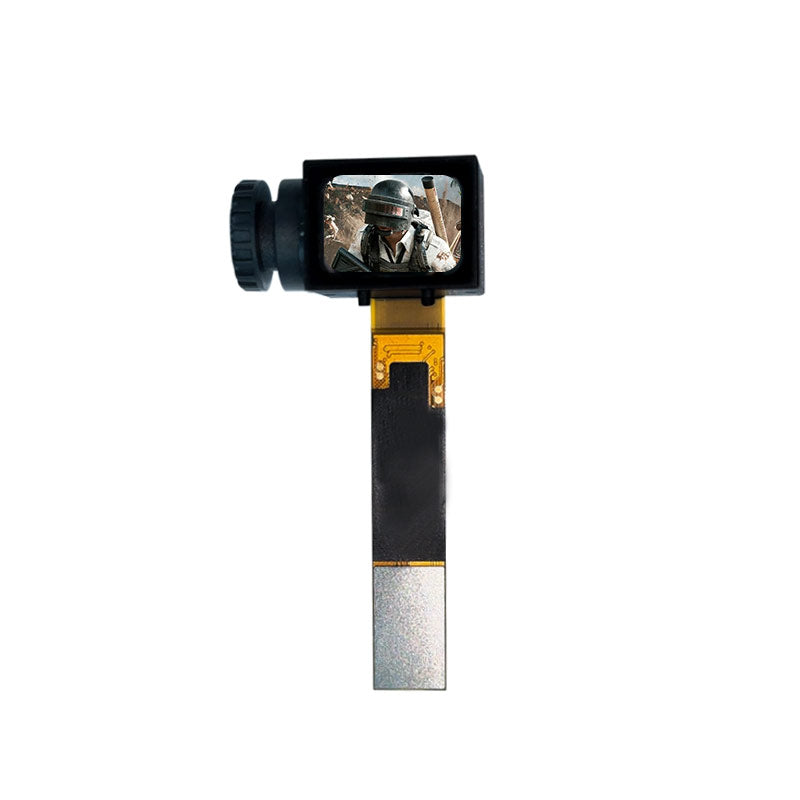

SY032WEG01

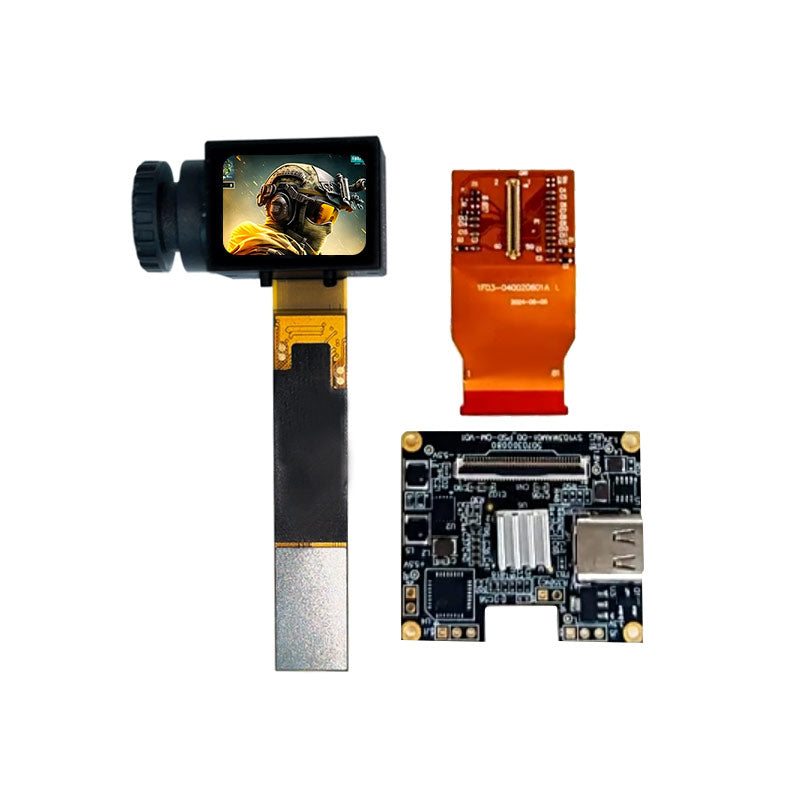

SY032WEG01+5B0032T04-1 with Driver Board

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
