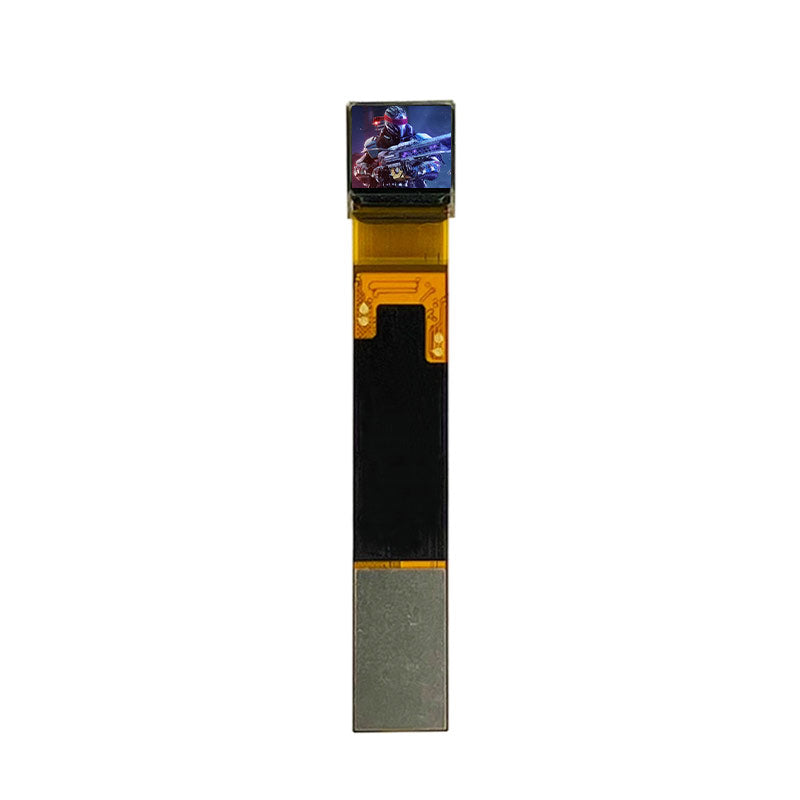

SY032WEM01-91 0.32 Inch Micro OLED Display RGB MIPI 800×600 OLED Display For EVF AR Red Dot Sight Display Solutions

SY032WEM01-91 0.32 Inch Micro OLED Display RGB MIPI 800×600 OLED Display For EVF AR Red Dot Sight Display Solutions

$69.85 USD
$69.85 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

SY032WEM01-91 0.32 Inch Micro OLED Display 800×600 RGB MIPI OLED Display For EVF AR Red Dot Sight Display Solutions Overview

SY032WEM01-91 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Delta, it's pixel density is 3135 PPI. As for mechanical detail, it features active area of 6.48(W)×4.86(H) mm, outline size of 10.45(W)×9.94(H)×1.88(D) mm, net weight of TBD. SY032WEM01-91 can provides 400 cd/m² display brightness 100000:1 transimissive contrast ratio, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 91% (DCI-P3). This product emiting itself . SY032WEM01-91 utilizes MIPI/RGB as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 1.8/5.5/-4.5V (Typ.)(VDDI/ELVDD/ELVSS). It's typical vertical frame rate (Fv) is 120Hz.
SY032WEM01-91 0.32 Inch Micro OLED Display 800×600 RGB MIPI OLED Display For EVF AR Red Dot Sight Display Solutions

SY032WEM01-91 Specifications

Manufacturer SeeYA Model Name SY032WEM01-91
Display Size 0.32 Inch Panel Type Si-OLED, OLED Full Module
Resolution 800(RGB) × 600 Pixels, 3135 PPI, SVGA Pixel Structure RGB Delta
Display Area 6.48(W) × 4.86(H) mm Outline Dimension 10.45(W) × 9.94(H) × 1.88(D) mm
Panel Weight TBD Surface Treatment N/A
Brightness 400 cd/m² (Typical) Contrast Ratio 100,000:1 (Typical)
Display Type Micro OLED (Si-OLED) Display Mode N/A
Viewing Direction Symmetry Viewing Angle N/A
Response Time N/A Refresh Rate 120Hz
Display Colors 16.7M Colors, 91% DCI-P3 Touch Screen Without Touch Panel
Light Source Self Emissive Power Consumption 160mW Typical / 220mW Maximum
Interface MIPI / RGB, 60-pin Connector Input Voltage 1.8V / 5.5V / -4.5V (VDDI / ELVDD / ELVSS)
Operating Temperature -20°C to +70°C Storage Temperature -40°C to +80°C
Application HMD, VR, AR Devices Technology Micro OLED Display

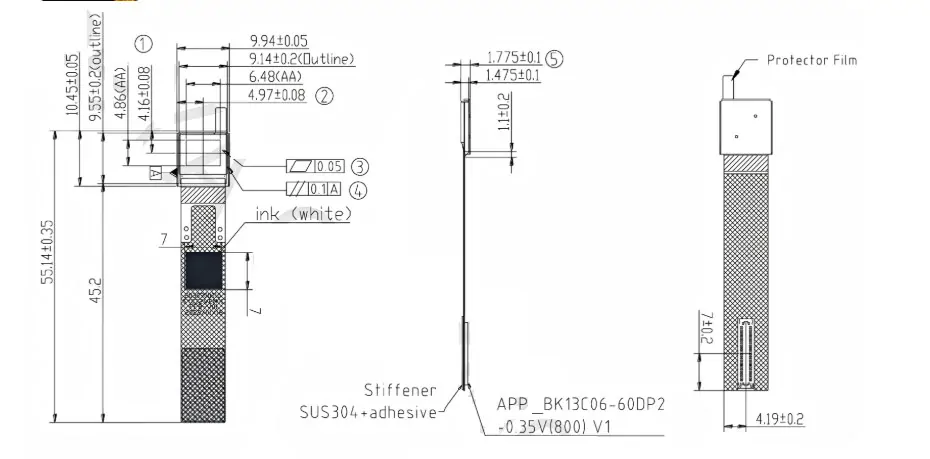

SY032WEM01-91 Drawing

SY032WEM01-91 0.32 Inch Micro OLED Display 800×600 RGB MIPI OLED Display For EVF AR Red Dot Sight Display SolutionsApplications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection
Micro OLED Display Application Micro OLED Display Application

Micro OLED Display Application

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.Micro OLED Display Solution

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
