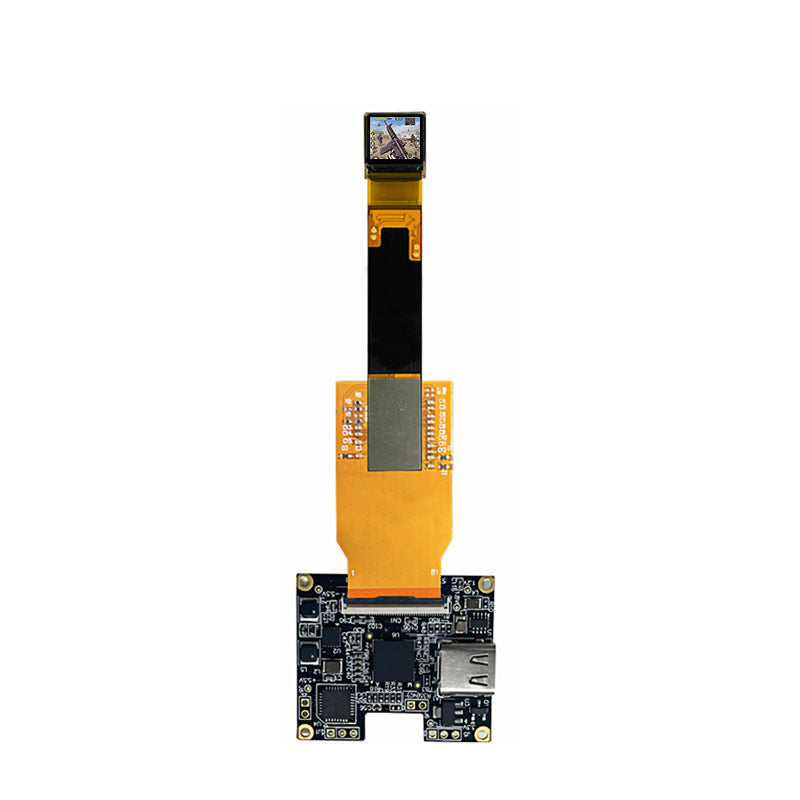

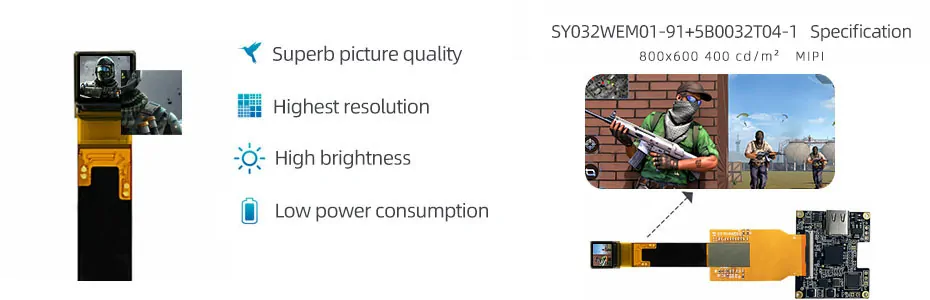

SY032WEM01-91 0.32 Inch Micro OLED Display 800×600 RGB MIPI OLED Display With Monocular Type-C Driver Board Solution Overview

SY032WEM01-91 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Delta, it's pixel density is 3135 PPI. As for mechanical detail, it features active area of 6.48(W)×4.86(H) mm, outline size of 10.45(W)×9.94(H)×1.88(D) mm, net weight of TBD. SY032WEM01-91 can provides 400 cd/m² display brightness 100000:1 transimissive contrast ratio, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 91% (DCI-P3). This product emiting itself . SY032WEM01-91 utilizes MIPI/RGB as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 1.8/5.5/-4.5V (Typ.)(VDDI/ELVDD/ELVSS). It's typical vertical frame rate (Fv) is 120Hz.

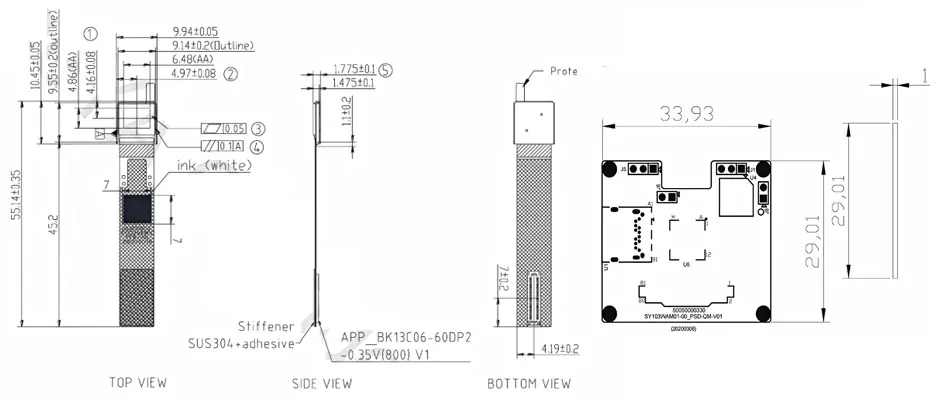

SY032WEM01-91 0.32 Inch Micro OLED Display 800×600 RGB MIPI OLED Display With Monocular Type-C Driver Board Solution Drawing

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
