SY049LDM01 0.49 Inch Micro OLED Display 1920×1080 MIPI 3000nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions
SY049LDM01 0.49 Inch Micro OLED Display 1920×1080 MIPI 3000nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions
Couldn't load pickup availability
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
Product Introduction
SY049LDM01 0.49 Inch Micro OLED Display 1920×1080 MIPI 3000nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Overview
SY049LDM01 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in Sub-Pixel Rendering, it's pixel density is 3692 PPI. As for mechanical detail, it features active area of 10.783(W)×6.065(H) mm, outline size of 15.68(W)×9.09(H)×1.6(D) mm, net weight of 1.00g (Max.). SY049LDM01 can provides 3000 cd/m² display brightness 50000:1 transimissive contrast ratio, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit / 10-bit gray scale signal for each dot, thus presenting a palette of 16.7M/1.07B colors, also with performance of color gamut 102% (NTSC). This product emiting itself . SY049LDM01 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 40 pins Connector. It's typical vertical frame rate (Fv) is 90Hz.

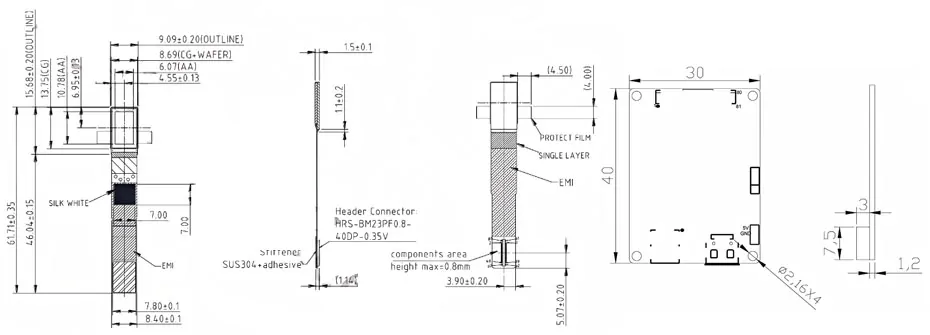

SY049LDM01 0.49 Inch Micro OLED Display 1920×1080 MIPI 3000nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Drawing

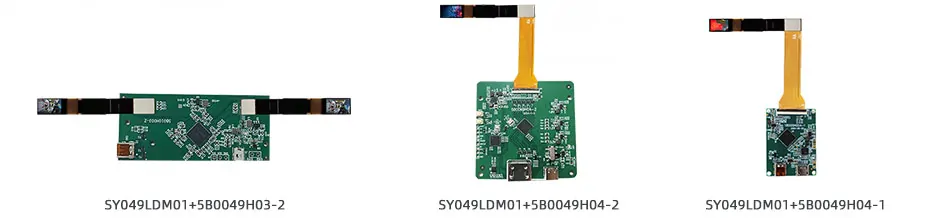

0.49 Inch Micro OLED Display Solution For Reference

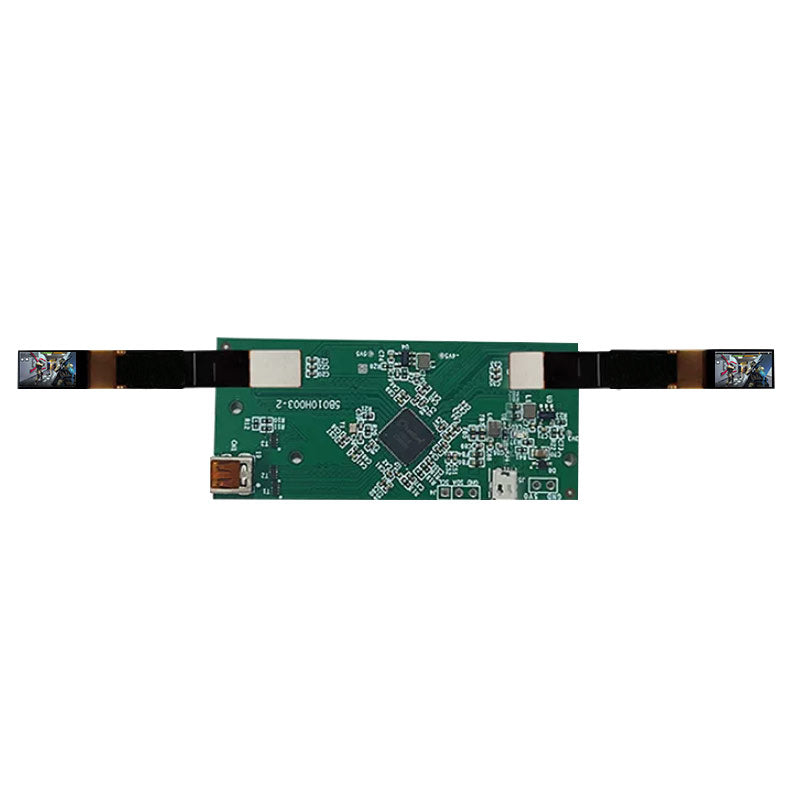

SY049LDM01+5B0049H03-2

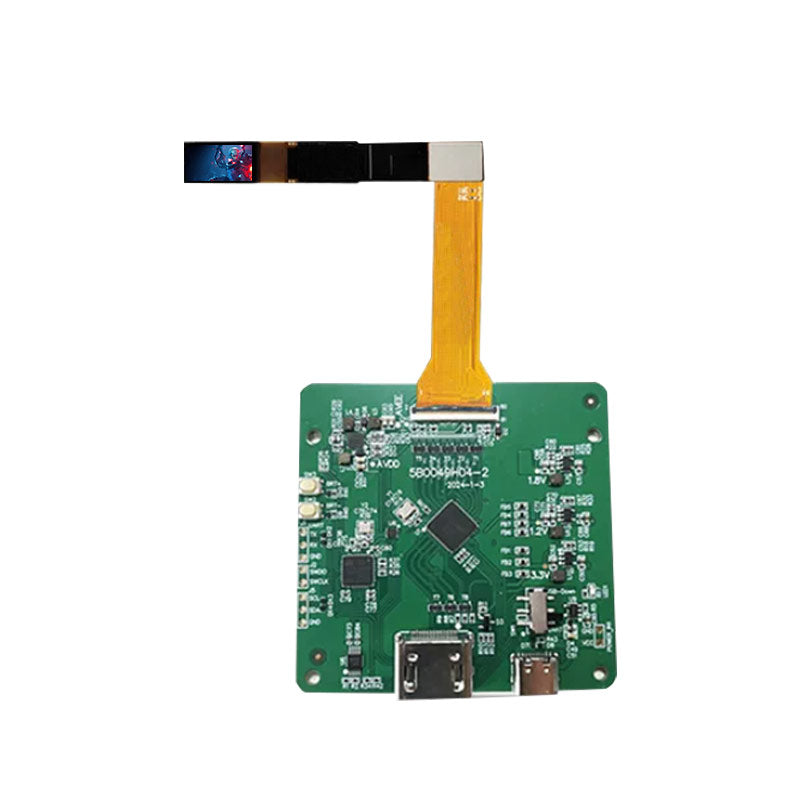

SY049LDM01+5B0049H04-2

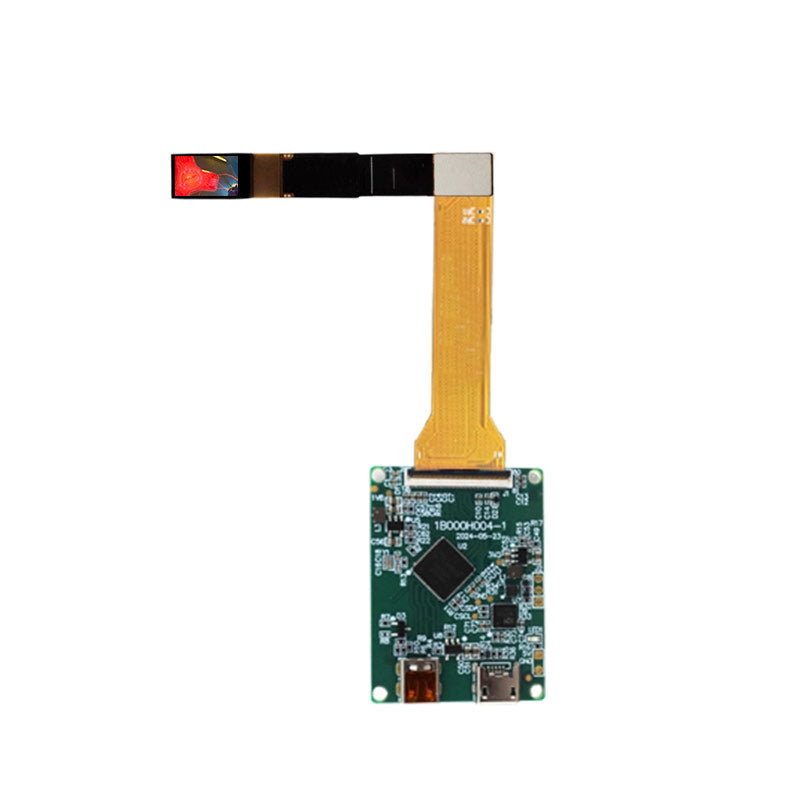

SY049LDM01+5B0049H04-1
Applications For Youritech Micro OLED Display
Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection
Youritech Micro OLED Display Solutions
As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
Customization & Manufacturing
Quality is constant
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
SHIPPING & DELIVERY FAQS
1. Where is my product ship from?
All of products are shipped from China/HK.
2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).
3. When my order will be shipped out ?
Normally we will ship it out within 2- 3 days after order was processed, only when the products in high demand or out of stock will take more time.
