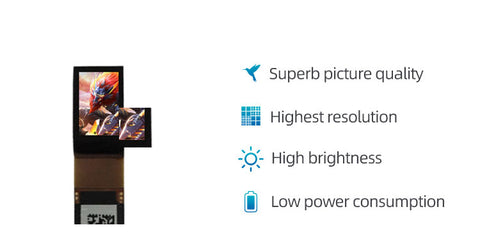

SY049WDM02 0.49 Inch 1920x1080 OLED Display MIPI Interface Amoled With Drive Board For HMD AR VR

SY049WDM02 0.49 Inch 1920x1080 OLED Display MIPI Interface Amoled With Drive Board For HMD AR VR

Regular price $112.00 USD
Regular price Sale price $112.00 USD
Sale Sold out
样式

Overview

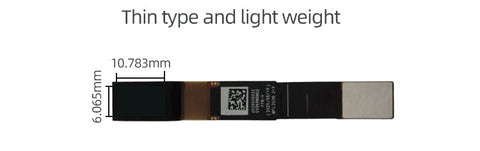

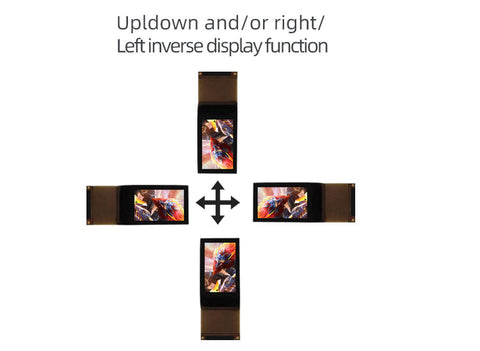

SY049WDM02 is a 0.49 inch diagonal Si-OLED display panel, it self emiting. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -40 ~ 80°C . It's general features are summarized in the following: DCI-P3, sRGB, Landscape / Portrait, Ultra High Brightness, U/D,L/R Reverse, 8/10 bit , FPC length 46.04mm, Support scaling up 1.33x(e.g., 1440x810 to 1920x1080), 1.5x (e.g., 1280x720 to 1920x1080) and 2x (e.g., 960x540 to 1920x1080). Based on its features, we recommend that this model be applied to HMD VR AR etc.

Feature
-High contrast

-Wide color gamut
-Quick response
-Ultra High Brightness
-Brightness:1800 cd/m² (Typ.)
-Operating Temp. :-20 ~ 70 °C

-Storage Temp. :-40 ~ 80 °C

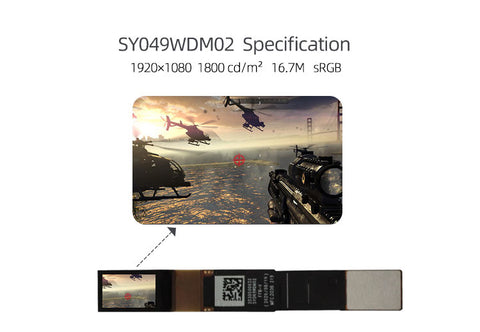

Screen Size:0.49 inch
Resolution:1920x1080
Brand:SeeYA
High Resolution OLED Panel

Refresh Rate:90Hz

What's included in the package ?
More SKU To Choose
-SY049WDM02 display

-SY049WDM02+5B0049H02 HDMI 1800nits

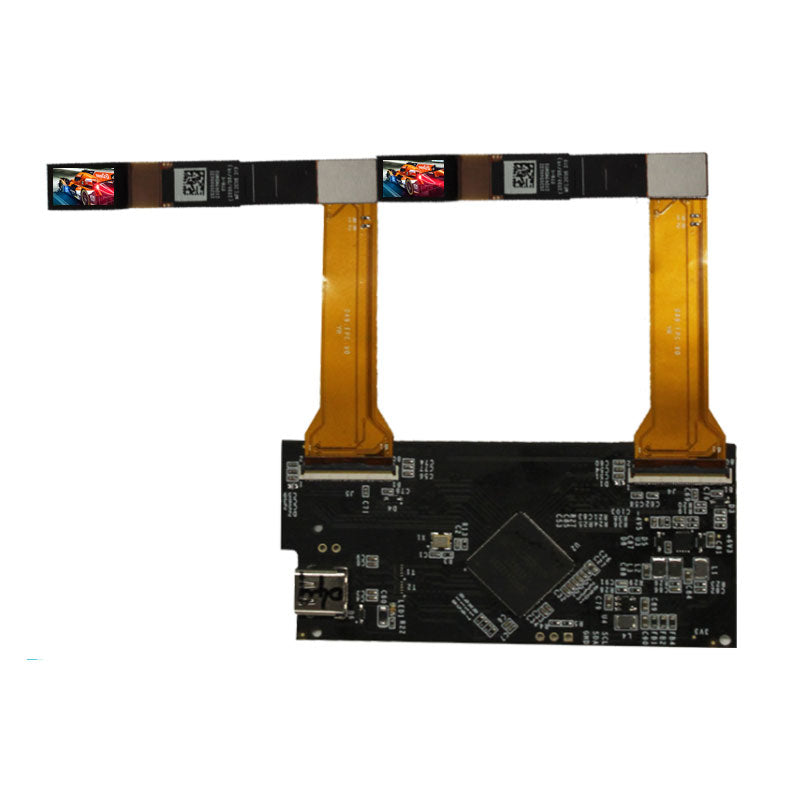

-dual SY049WDM02+5B0049T02 Type-C 1800nits

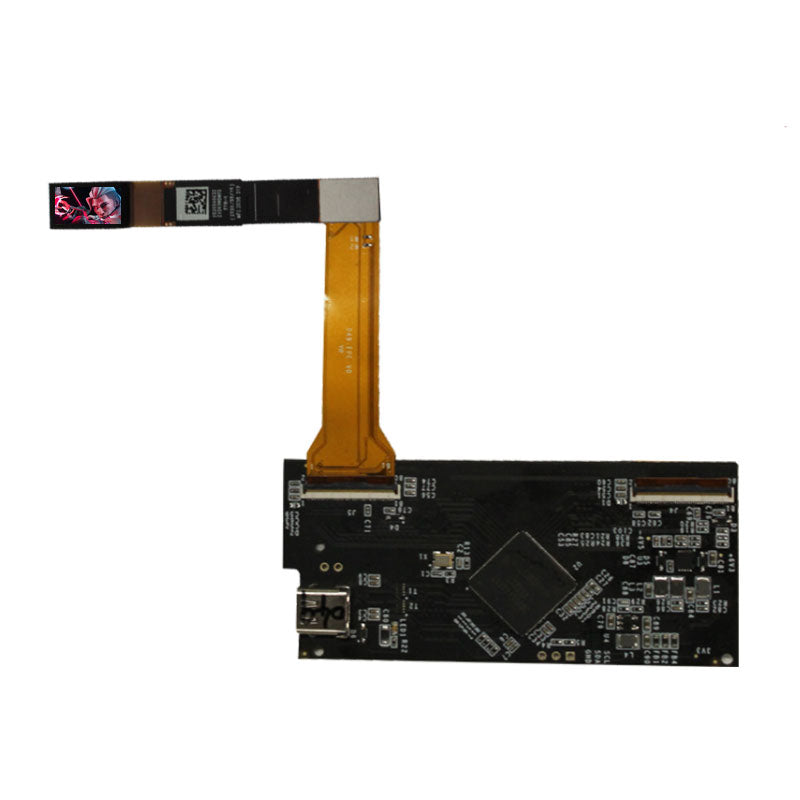

-SY049WDM02+5B0049T02 Type-C 1800nits

Application
Head-mounted Displays, Viewfinders, Small Display,AR VR etc.

Datasheet & Technical Support
For product datasheet and technical support, welcome to contact us at support@youritech.com;

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.


More Product Pictures

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.

For inquiries about Youritech and products/solutions, specificaition, mass production quotaion and technical support, welcome to contact us at info@youritech.com

For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
