SY062WAM01 0.62 Inch 1728x1368 OLED Display Sunlight Readable Amoled With Drive Board For HMD AR VR

Overview

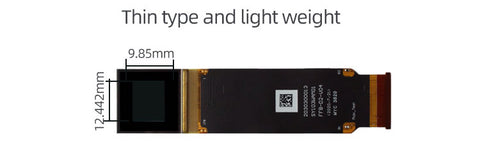

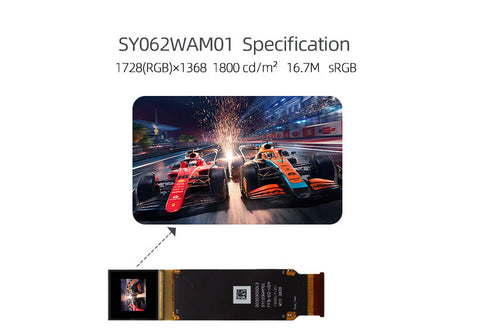

SY062WAM01 supports display 1728(RGB)×1368 with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB π type,it's pixel density is 3527 PPI. As for mechanical detail, it features active area of 12.442(W)×9.85(H) mm, outline size of 23.19(W)×23.85(H)×2.7(D) mm. SY062WAM01 can provides 1800 cd/m² display brightness 500000:1 transimissive contrast ratio, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product emiting itself . SY062WAM01 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 81 pins FPC with power supply voltage of 1.2/1.8/6.3/-4.5V (Typ.)(VDD/VDDI/AVDD/AVEE).

Feature
-High contrast
-Wide color gamut
-Quick response
-Sunlight Readable
-Brightness:1800 (Typ.)
-Operating Temp. :-20 ~ 70 °C
-Storage Temp. :-40 ~ 80 °C

Screen Size: 0.62 inch
Resolution:1728x1368
Brand:SeeYA
High Resolution OLED Panel
Refresh Rate:90Hz

What's included in the package ?
More SKU To Choose

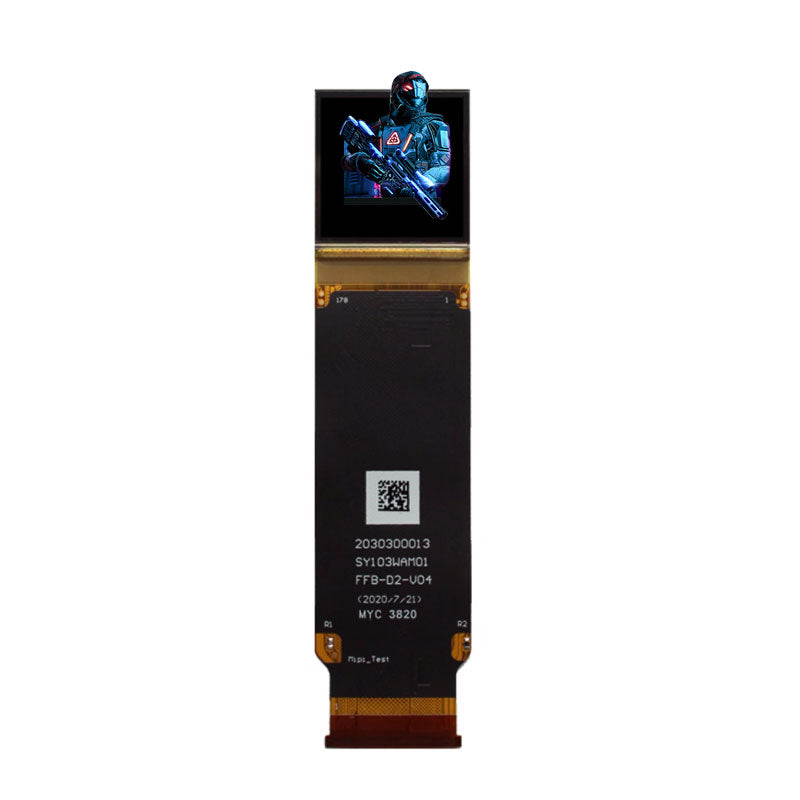

-SY062WAM01 display

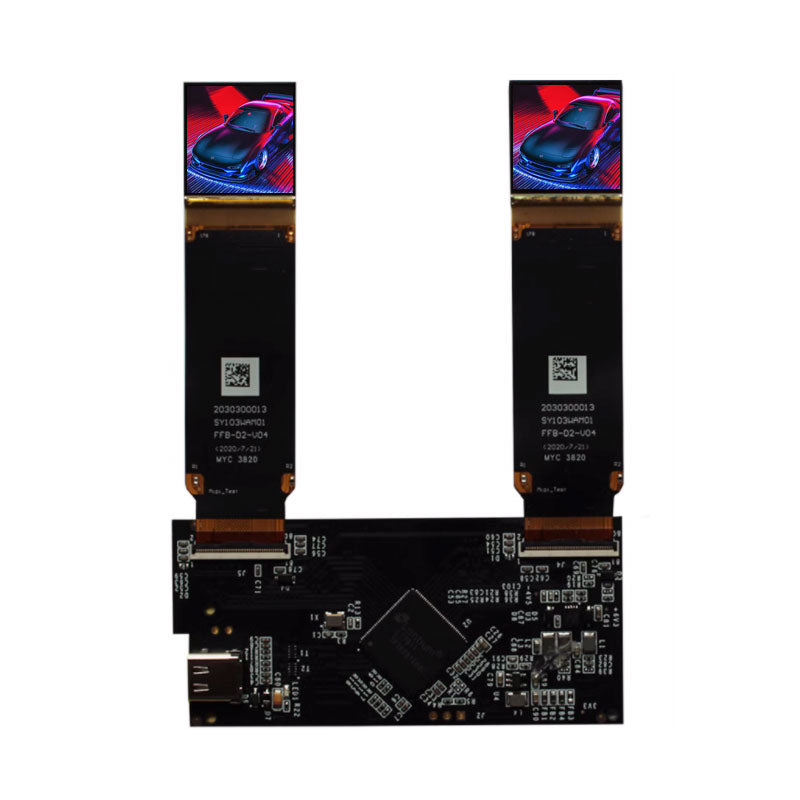

-ET010SQH11+dual display 0.62inch Type-C

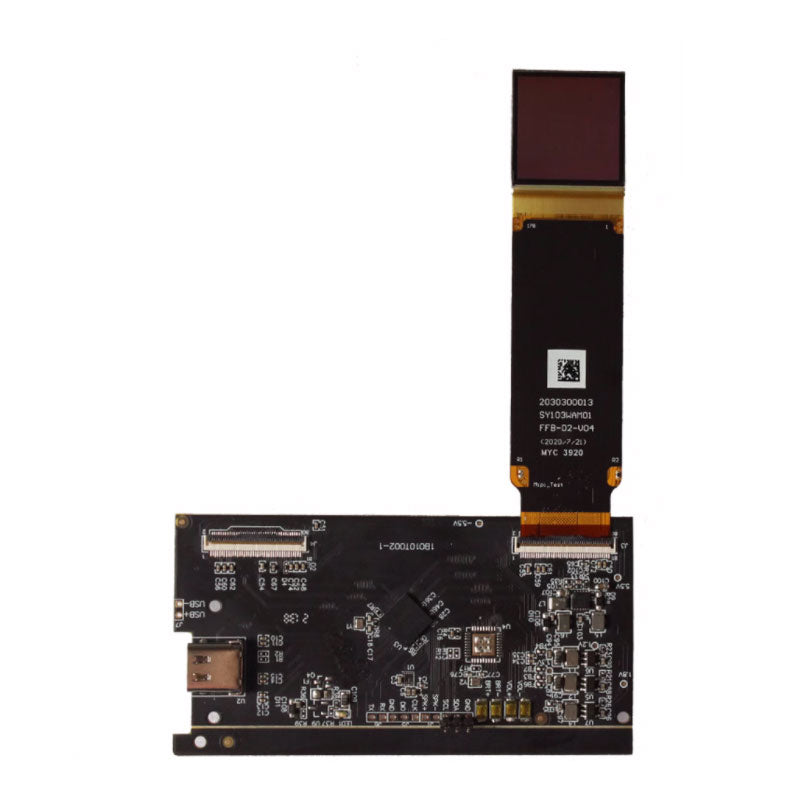

-ET010SQH12+display 0.62inch Type-C

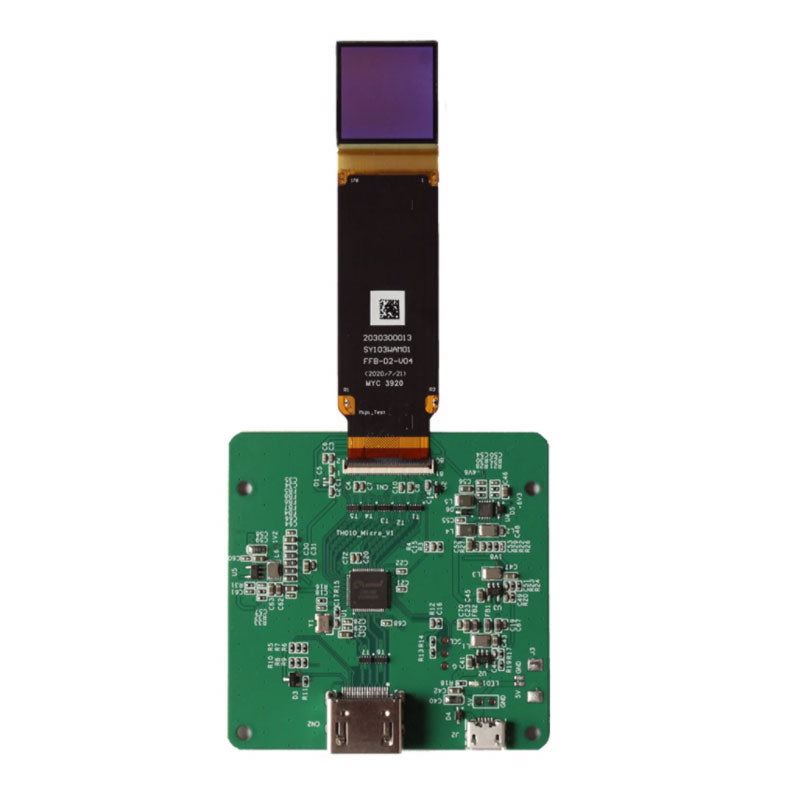

-ET010SQH11+display+HDMI board 0.62 1800nits

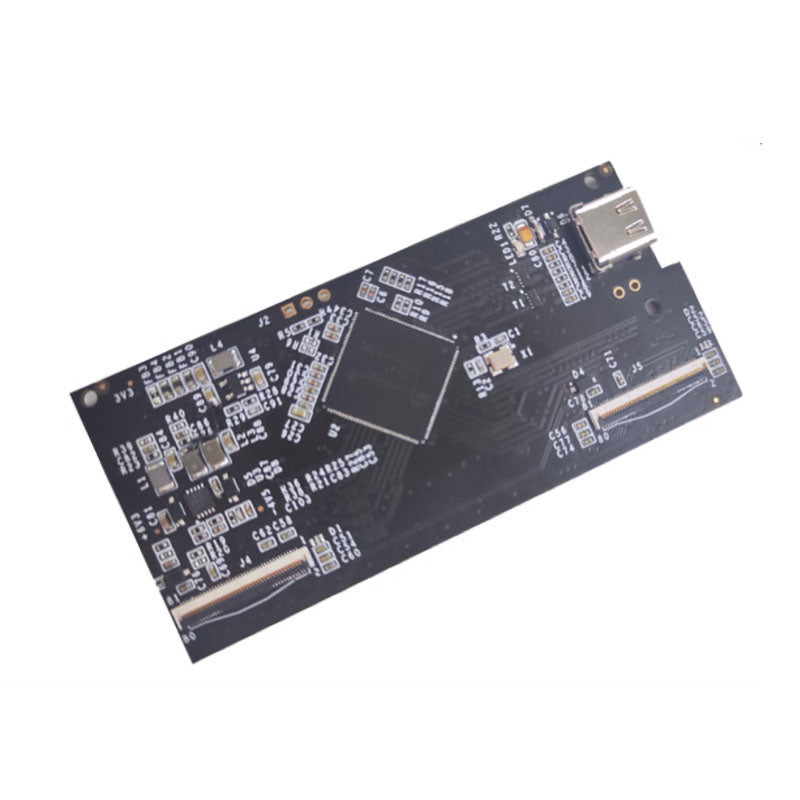

-Type-C board (2 connectors)

Application
Head-mounted Displays, Viewfinders, Small Display,AR VR etc.

Datasheet & Technical Support
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
