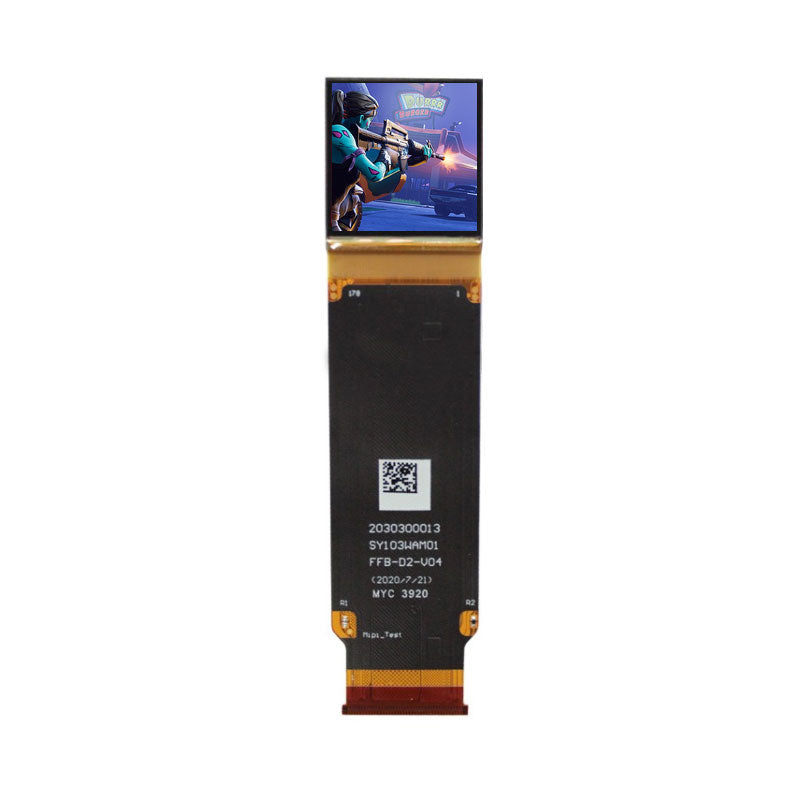

SY103WAM01 1 inch 2560x2560 Si-OLED Panel Sunlight Readable MIPI Interface Amoled With Drive Board For HMD AR VR

SY103WAM01 1 inch 2560x2560 Si-OLED Panel Sunlight Readable MIPI Interface Amoled With Drive Board For HMD AR VR

Regular price $868.00 USD
Regular price Sale price $868.00 USD
Sale Sold out
样式

Overview

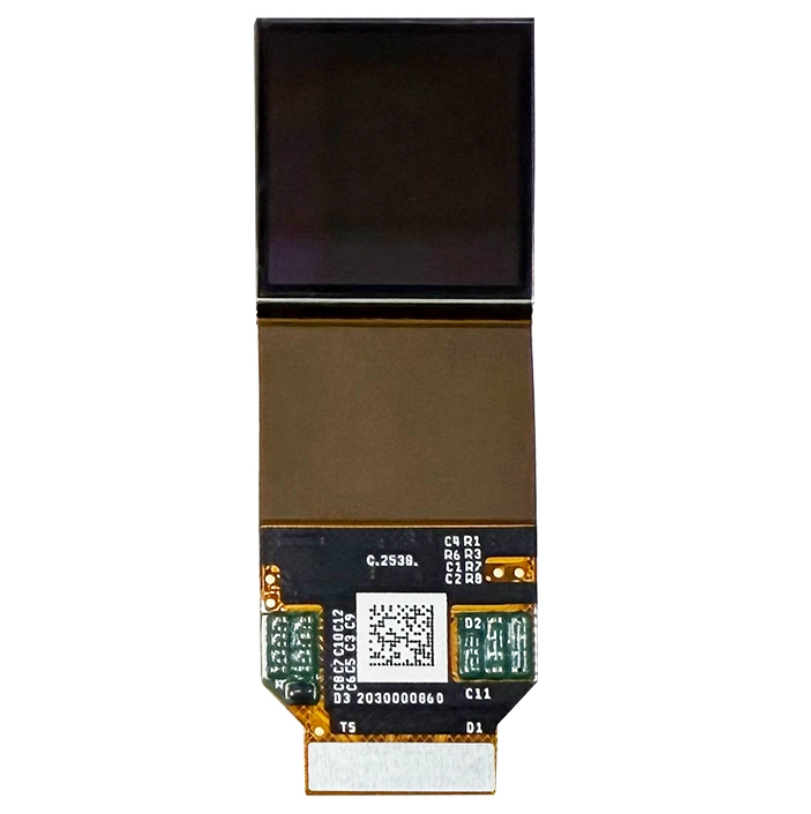

SY103WAM01 is a 1.0 inch diagonal Si-OLED display screen product, it self emiting, without touch screen. SY103WAM01 supports display 2560(RGB)×2560 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB π type, it's pixel density is 3527 PPI. As for mechanical detail, it features active area of 18.432(W)×18.432(H) mm, outline size of 21.09(W)×22.77(H)×1.58(D) mm. SY103WAM01 can provides 1800 cd/m² display brightness 500000:1 transimissive contrast ratio, 30/30/30/30 (L/R/U/D) viewing angle.

Feature
-High contrast

-Wide color gamut
-Quick response
-Sunlight Readable
-Brightness:1800 cd/m² (Typ.)
-Operating Temp. :-20 ~ 70 °C

-Storage Temp. :-40 ~ 80 °C

Screen Size:1 inch
Resolution:2560x2560
Brand:SeeYA
High Resolution OLED Panel

Refresh Rate:90Hz

What's included in the package ?
More SKU To Choose
-ET010SQH11 dual display with board 1800nits 1.03inch Tyep-C
-ET010SQH12 (one dispaly with board) 1800nits 1.03inch Tyep-c
-ET010SQH11 1800nits + HDMI board

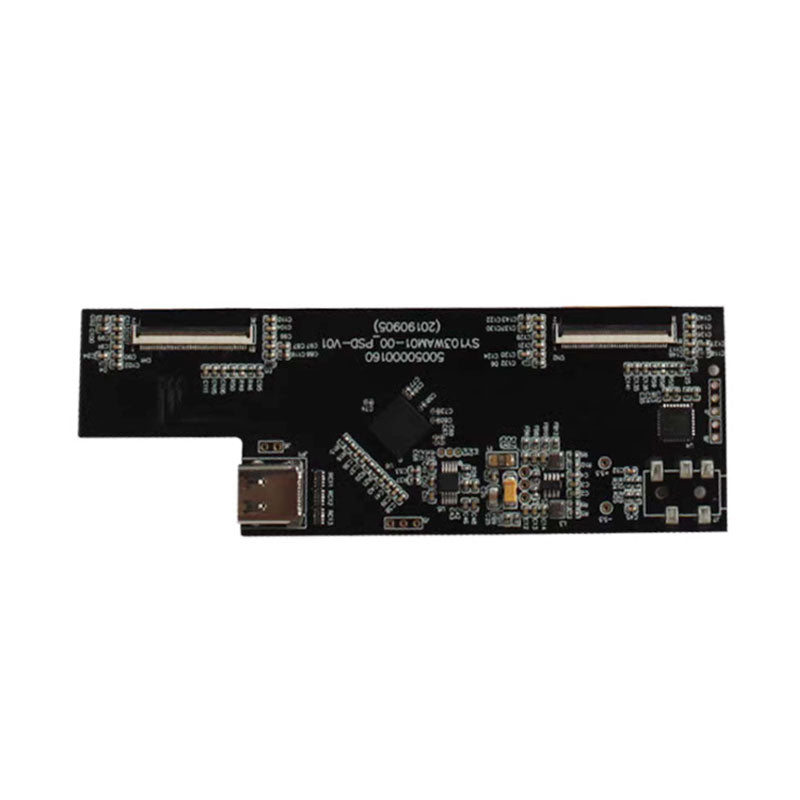

-Type-C board (2 connectors)
-SY103WAM01 (2560x2560) 1.03inch 1800nits

Application
Head-mounted Displays, Viewfinders, Small Display,AR VR etc.

Datasheet & Technical Support
For product datasheet and technical support, welcome to contact us at support@youritech.com;

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.


More Product Pictures


As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.

For inquiries about Youritech and products/solutions, specificaition, mass production quotaion and technical support, welcome to contact us at info@youritech.com

For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
