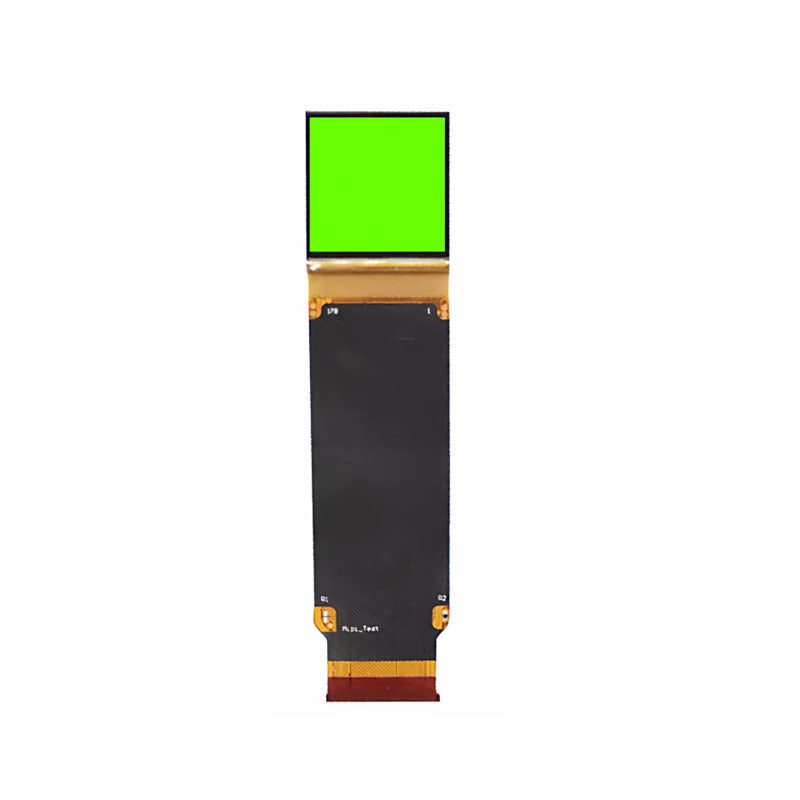

SY103WAM10 1.03 Inch Micro OLED Display 2560×2560 MIPI 20000nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Overview

SY103WAM10 is a 1.0 inch diagonal Si-OLED display screen product from SeeYA, it self emiting, without touch screen. SY103WAM10 supports display 2560×2560 with aspect ratio of 1:1 (W:H), whose pixels are arranged in Rectangle,it's pixel density is 3527 PPI. As for mechanical detail, it features active area of 18.432(W)×18.432(H) mm, outline size of 21.09(W)×22.77(H)×1.58(D) mm, net weight of 2.10g (Typ.). SY103WAM10 can provides 20000 cd/m² display brightness 500000:1 transimissive contrast ratio, 30/30/30/30 (L/R/U/D) viewing angle . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of Grayscale(G) colors. This product emiting itself . SY103WAM10 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 81 pins FPC with power supply voltage of 1.8/6_6.5/-4.0_-6.0V (Typ.)(VDDI/AVDD/AVEE). It's typical vertical frame rate (Fv) is 90Hz.

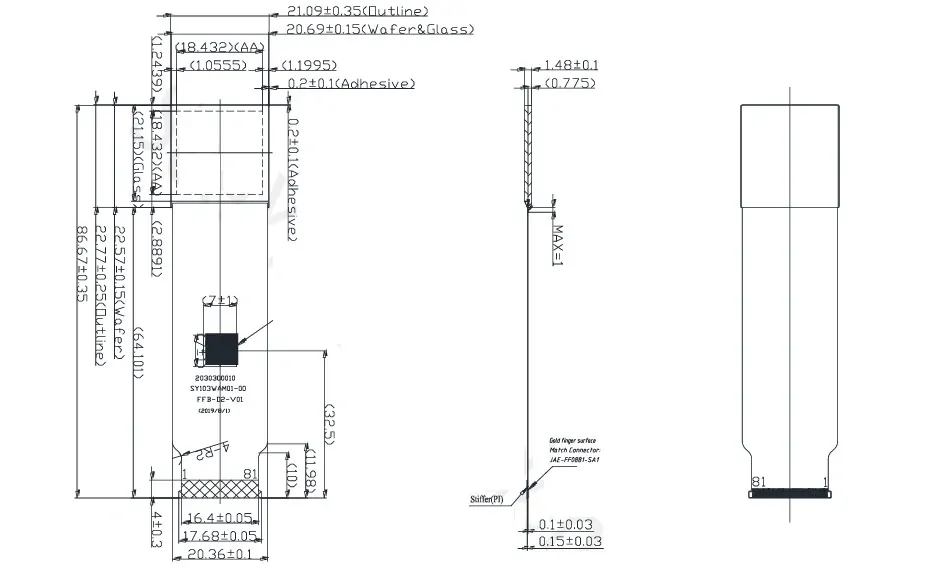

SY103WAM10 1.03 Inch Micro OLED Display 2560×2560 MIPI 20000nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Drawing

SY103WAM10 1.03 Inch Micro OLED Display Solution For Reference
SY103WAM10
1F03-08002381A

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection
