TD028TTEC1 2.8 inch 480x640 LCD Display SPI RGB FPC LCD Screen

TD028TTEC1 2.8 inch 480x640 LCD Display SPI RGB FPC LCD Screen

$34.50 USD
$38.00 USD $34.50 USD
Sale Sold out


TD028TTEC1 Original 2.8 inch 480x640 LCD Display SPI RGB FPC LCD Screen

Product size
2.8-inch
Type
LTPS TFT-LCD, LCM
Pixel Format
480(RGB)×640 [VGA] 282PPI
Configuration
RGB Vertical Stripe
Active Area
43.2(H)×57.6(V) mm

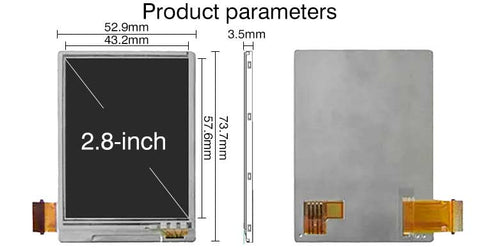

Outline Dim.
52.9(H)×73.7(V) ×3.5(D) mm
Bezel Area
-
Treatment
Hard coating (3H)
Luminance
200 cd/m² (Typ.)
Contrast Ratio
300:1 (Typ.) (TM)
View Direction
12 o'clock
Response Time
20 (Typ.)(Tr+Td)
Viewing Angle
55/55/55/50 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Support Color
262K 69% NTSC
Light Source
WLED , 10K hours , W/O Driver
Weight
25.0±3.0g
Designed For
Mobile Phone
Frequency
-
Touch Panel
4-wire Resistive Touch
Interface Type
Parallel RGB (1 ch, 6-bit) + SPI , 39 pins FPC
Power Supply
3.0/3.0V (Typ.)(VDC/VDDIO)
Environment
Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
