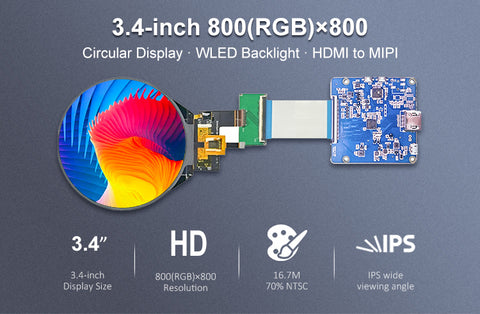

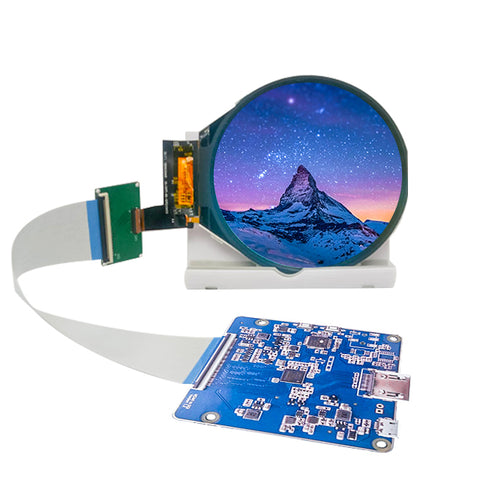

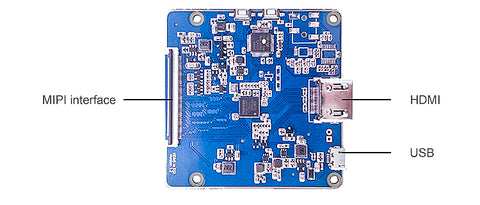

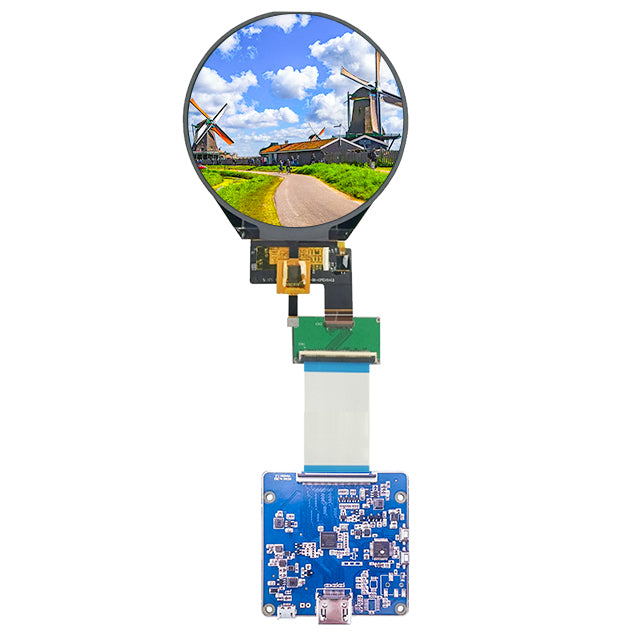

TM034XVZP01 3.4 Inch 800x800 LCD Display Panel With HDMI To MIPI Driver Board

TM034XVZP01 3.4 Inch 800x800 LCD Display Panel With HDMI To MIPI Driver Board

$65.55 USD
$74.49 USD $65.55 USD
销售额 售罄
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.


TM034XVZP01 Original 3.4 Inch 800x800 LCD Display Panel With HDMI To MIPI Driver Board

Product size

3.4-inch

Type

a-Si TFT-LCD, LCM

Pixel Format

800(RGB)×800  231PPI

Configuration

RGB Vertical Stripe

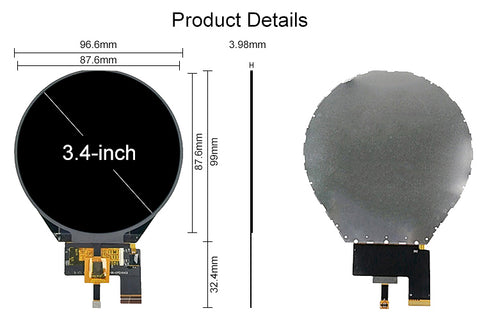

Active Area

87.6(H)×87.6(V) mm

Outline Dim.

99(H)×96.6(V) mm

Bezel Area

88.6(H)×88.6(V) mm

Treatment

Hard coating (7H)

Luminance

350 cd/m² (Typ.)

Contrast Ratio

800:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

25 (Typ.)(Tr+Td)

Viewing Angle

80/80/80/80 (Typ.)(CR≥10)

Operating Mode

SFT, Normally Black, Transmissive

Support Color

16.7M   70% NTSC

Light Source

WLED  [2S4P] , 30K hours , W/O Driver

Weight

TBD

Designed For

Industrial/Round Display/Instruments & Meters

Frame Rate

-

Touch Panel

PCAP

Interface Type

MIPI (3 data lanes) , 39 pins FPC

Power Supply

1.8/5.0/-5.0V (Typ.)(IOVCC/VDD/-VDD)

Environment

Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C


Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
