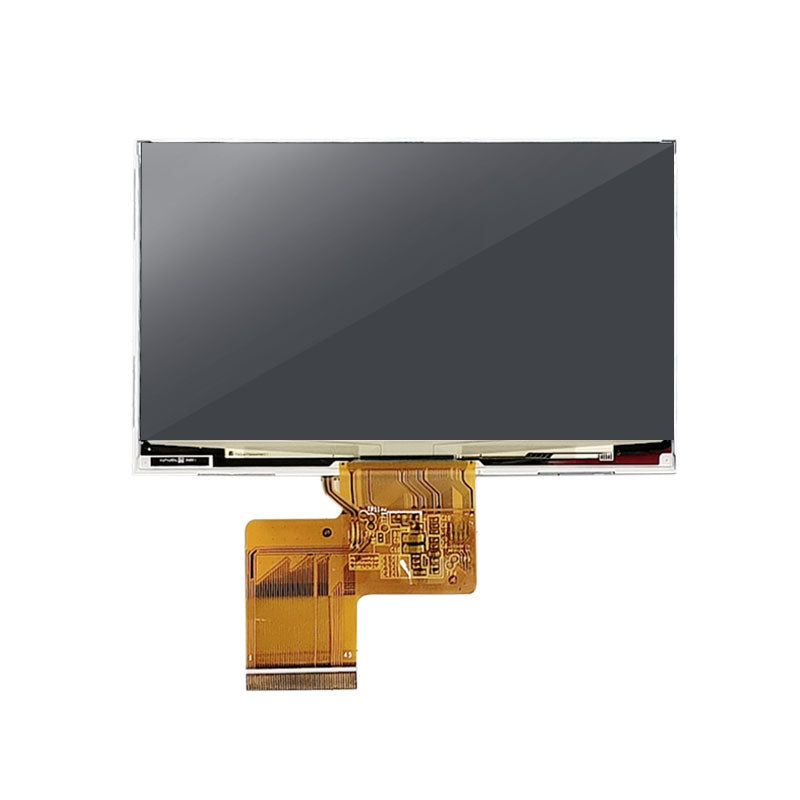

TM047NBH01 4.7 Inch TFT LCD Display TTL 480×272 LCD Panel With 4-wire Resistive Touch

TM047NBH01 4.7 Inch TFT LCD Display TTL 480×272 LCD Panel With 4-wire Resistive Touch

$17.00 USD
$17.00 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

TM047NBH01 Overview

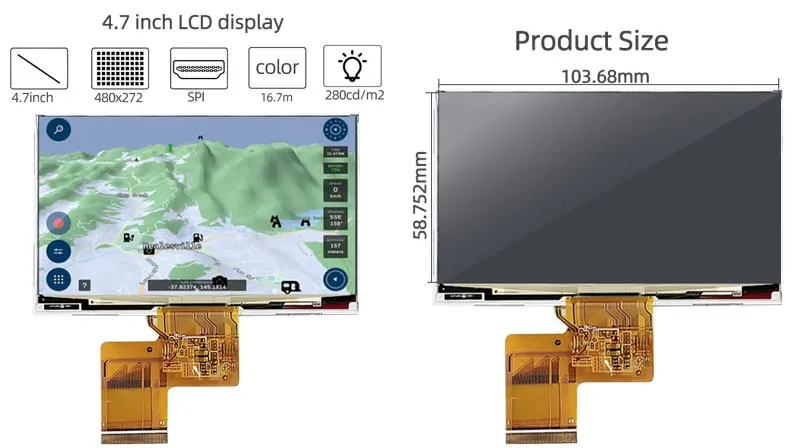

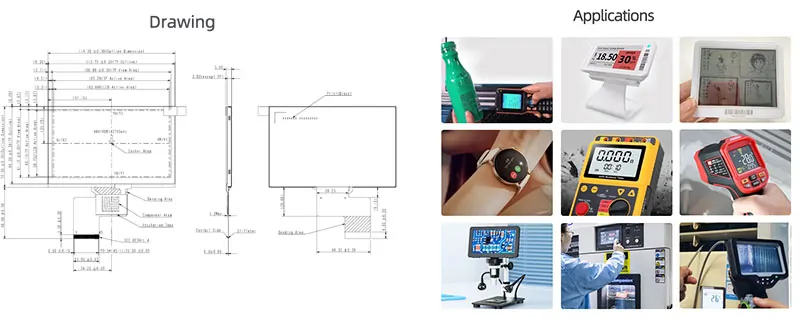

TM047NBH01 supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 103.68(W)×58.752(H) mm, outline size of 114.3(W)×72.5(H)×5.2(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 76.5g (Typ.). As a TN, Normally White, Transmissive LCM product, TM047NBH01 can provides 280 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 5S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM047NBH01 utilizes Parallel RGB (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 45 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Application
For Industrial.


Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
