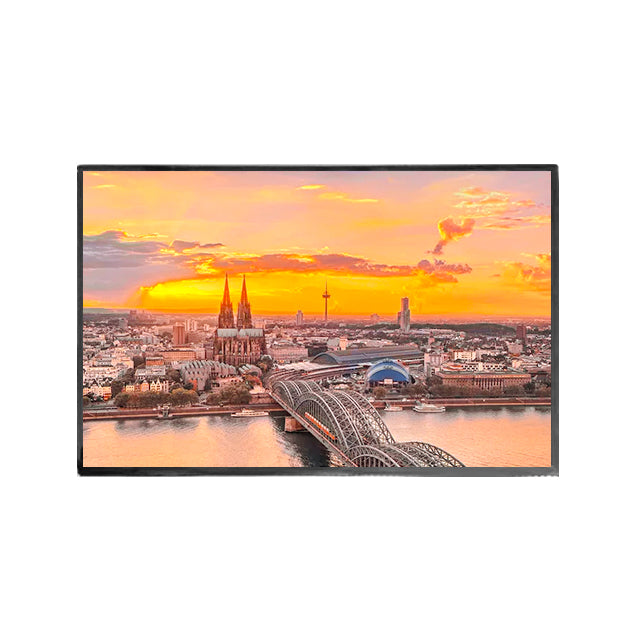

TM101JDHP01 10.1 inch 1280x800 IPS LCD Screen LVDS 40 Pins Connector LCD Display

TM101JDHP01 10.1 inch 1280x800 IPS LCD Screen LVDS 40 Pins Connector LCD Display

$93.00 USD
$100.00 USD $93.00 USD
Sale Sold out

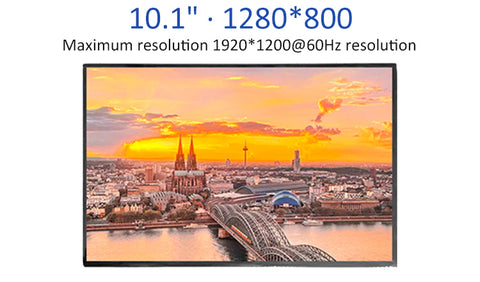

TM101JDHP01 Original 10.1 inch 1280x800 IPS LCD Screen LVDS 40 Pins Connector LCD Display

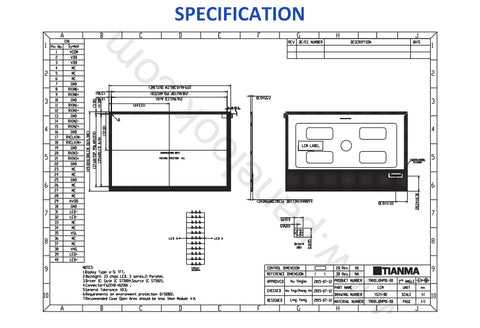

LCD SPECIFICATION

Panel Size

10.1 inch



Panel Type

a-Si TFT-LCD, LCM

Resolution

1280(RGB)×800 , WXGA

Pixel Format

RGB Vertical Stripe

Display Area

216.96(H)×135.6(V) mm

Bezel Opening

229.46 × 149.1 × 4.6 (H×V×D)

Outline Size

-

Surface

Hard coating

Brightness

400 cd/m² (Typ.)

Contrast Ratio

800 : 1 (Typ.) (TM)

Best View on

Symmetry

Response Time

10/15 (Typ.)(Tr/Td) ms

Viewing Angle

85/85/85/85 (Typ.)(CR≥10)

Display Mode

SFT, Normally Black, Transmissive

Display Colors

16.7M   50% NTSC

Lamp Type

3S11P WLED , 30K hours , No Driver

Panel Weight

180g (Typ.)

Application

Industrial

Frequency

60Hz

Touch Screen

Without

Signal Interface

LVDS (1 ch, 8-bit) , 40 pins Connector

Input Voltage

3.3/11.0/23/-7.0V (Typ.)(VDD/AVDD/VGH/VGL)

Environment

Storage Temp.: -20 ~ 60 °C    Operating Temp.: -10 ~ 50 °C
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
